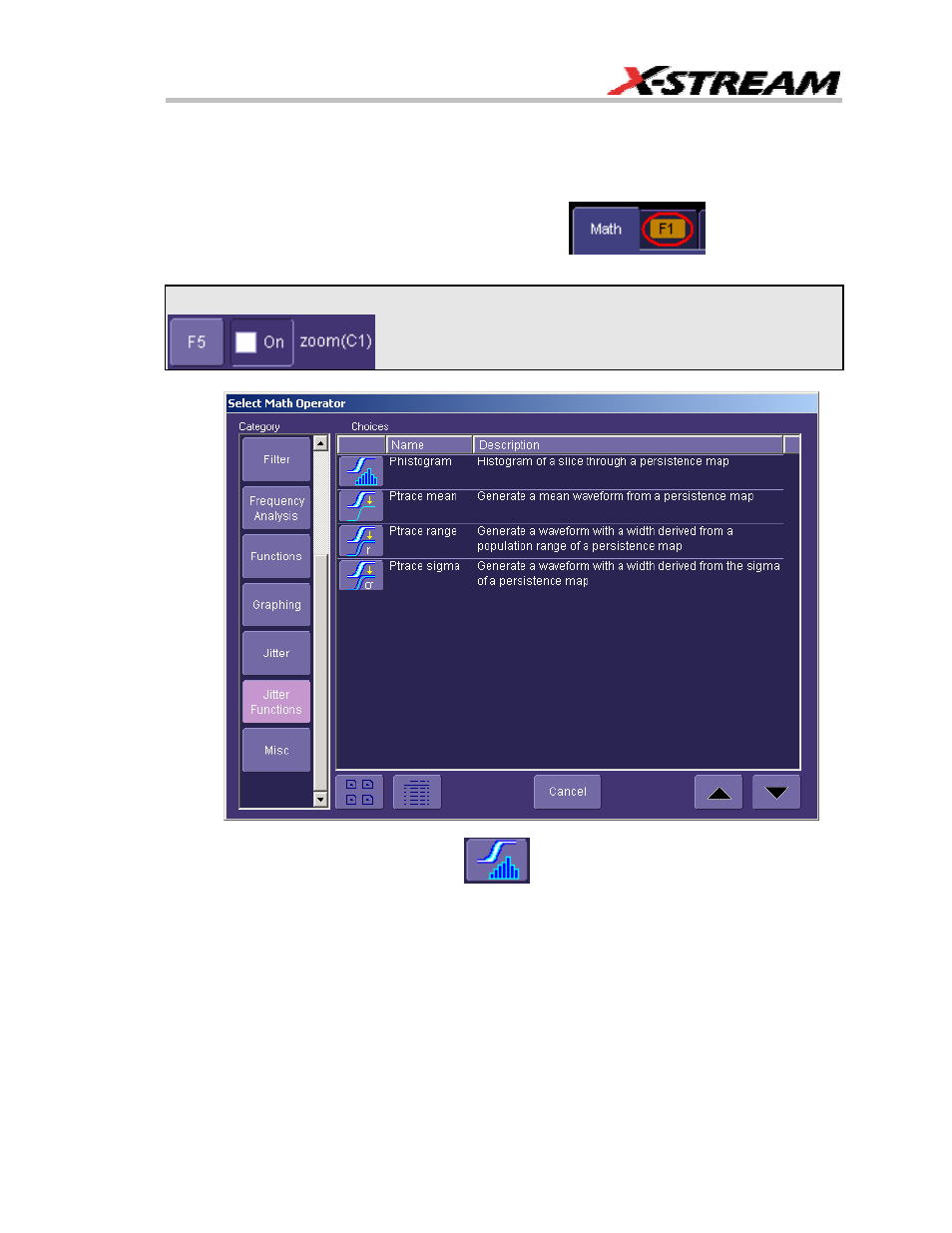

SETTING UP PERSISTENCE HISTOGRAMS

Selecting the Math Function

1. Touch

Math in the menu bar, then Math Setup... in the drop-down menu.

2. In the "Math" dialog, touch an unused Fx button to simply make a selection from the

Select Math Operator menu. Or, touch an Fx tab

for more setup

options.

Note: By default, unused Fx positions are designated as zooms of C1. However, the traces are disabled, as indicated by
an unchecked On box alongside the Fx button:

3. Touch

the

Jitter Functions button in the Select Math Operator menu,

then touch the Phistogram button

. A setup mini-dialog opens to the right of the

main dialog.
