The
Caption
text will also show up in the Class/Vendor Endpoint Decoding drop-
down list on the Endpoints tab of the Request Recipients and Endpoints dialog box:
EndpointDirection
Use
EndpointDirection
within an
EndpointData
entry to indicate the
direction of the data. It can be set to
IN
or
OUT
:
EndpointDirection=OUT
Please refer to
EndpointData={...}
in the hub.req sample file for a complete
example.
EndpointId
Use
EndpointId
if there is more than one
Endpoint
definition within the file,
each for data of different formats.
EndpointId
assigns an arbitrary number that
differentiates the definitions from one another. Please refer to
EndpointData={...}
in the Bluetooth.req sample file for a complete
example.
EndpointType
Use
EndpointType
to identify the type of endpoint described in the definition.
EndpointType
has two possible values in a .req file:
Interrupt
or
Bulk
.
Please refer to
EndpointData={...}
in hub.req sample file for a complete
example.

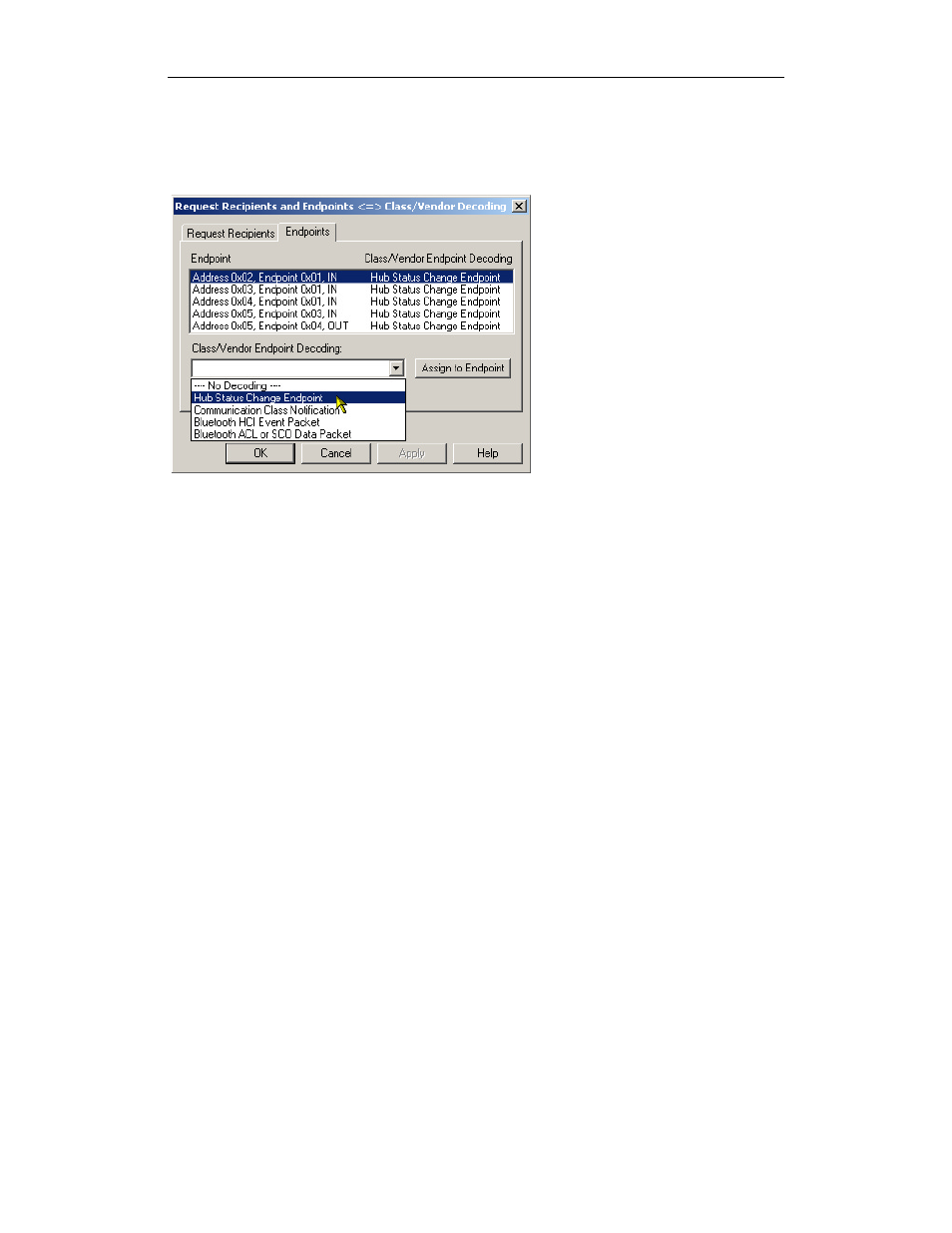

Figure 14:
Caption
text in the Class/Vendor Endpoint
Decoding drop-down list
