24

Assigning a UDD Script and Setting It as
Default Script

You can specify UDD items using two methods.

Software User-Defined Decoding

In this mode, you can set UUD items for the next captured sample file.

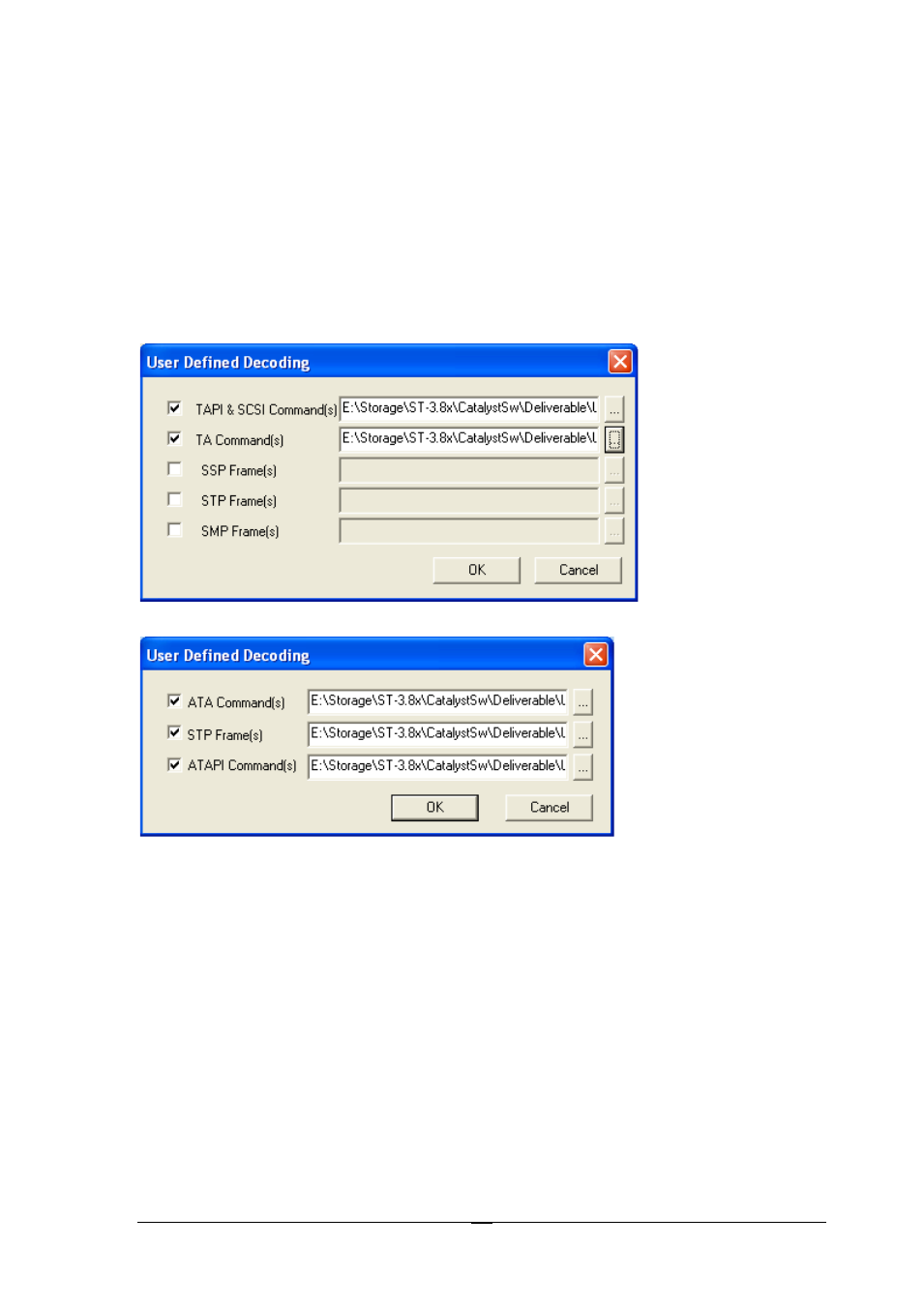

When the active view has no sample file, this following SAS or SATA dialog opens:

SAS Software UDD Dialog

SATA Software UDD Dialog
