3
Connections
Perform to the following steps to connect the Interposer (see the image below):
1.
Set the SW1 DIP switches to the desired clock selection.
Note: “REF_CLK_A” should be the default setting unless you are using an external clock reference source.
2. Install the SFF-8639 device under test (DUT) into the connector on the interposer as shown (will fit 2.5” or 3” drives).
3. Connect the Summit T3-8 Analyzer (or other compatible Teledyne LeCroy analyzer) to the interposer using the system iPass cable.
Note: On the Interposer side the iPass cable should be connected to the “x2 2.5GT/s / 5.0GT/s” port for SATA Express only. For all
other applications, connect to the “x4 2.5GT/s / 5.0GT/s / 8.0GT/s” port (as shown in the diagram below).
4. Connect the analyzer to a host computer system using the USB port on the front panel of the Summit analyzer.
5. If not already done, install the PETracer software on the host machine.
6. Connect 12V DC using the AC adapter supplied with the interposer. (Make sure that the AC adapter is powered on).
7. Power on the analyzer.
8. Power on the host machine.
9. Launch the Teledyne LeCroy software application to monitor, record and view PCI Express traffic passing through the SFF-8639
Interposer.
10. Install the Interposer into the host system connector.

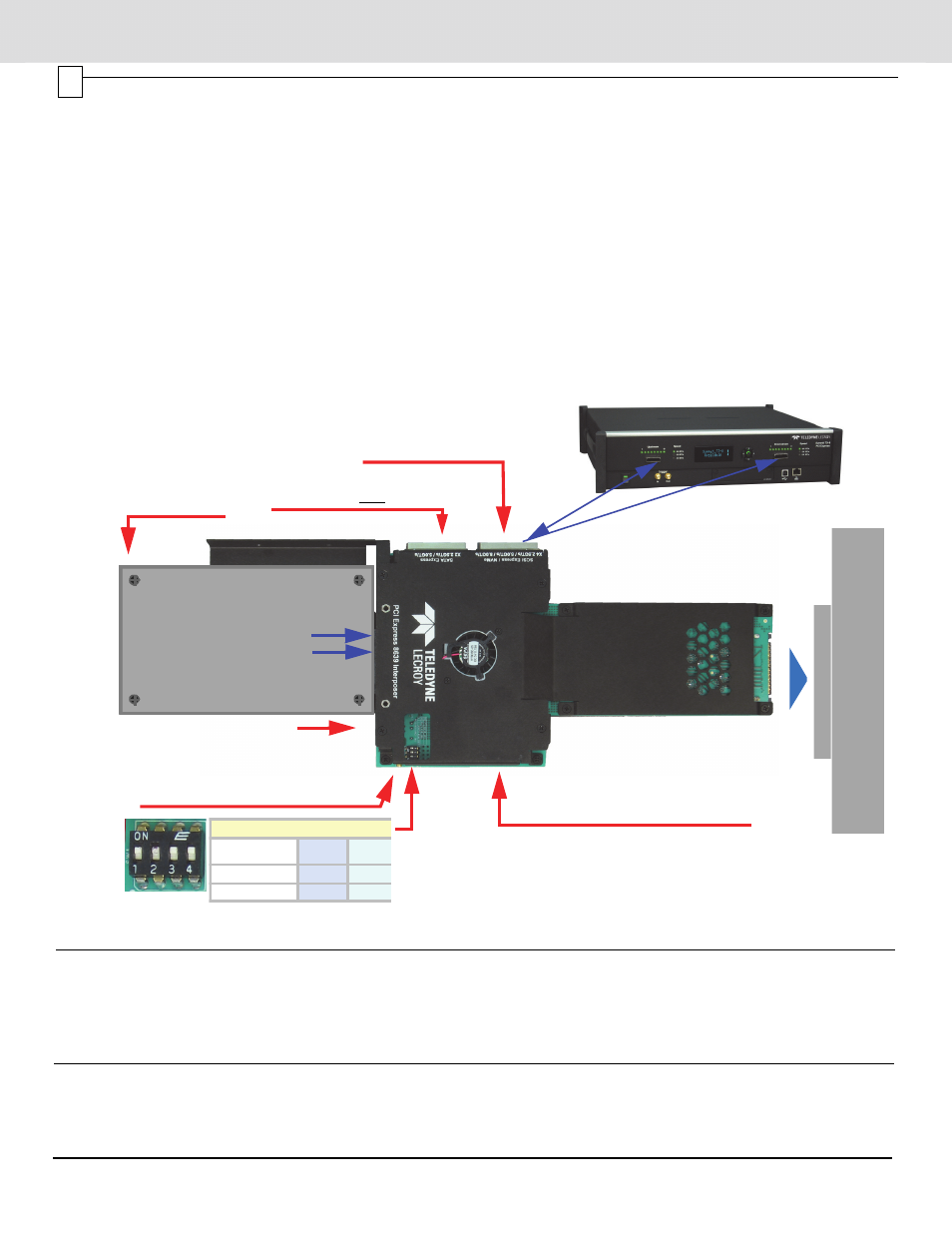

SFF-8639 Interposer Interconnection Overview
Analyzer connection for
SATA Express only
Analyzer connection for
NVME & SCSI Express
iPass Y-cable
PE010UCA-X
Summit T3-8 Analyzer
SF
F - 8639 Host Slot
Device Under Test
(DUT)
Compatible with
2.5" and 3" drives
SW1: Clock Select
Analyzer
Clock
1 2
REF_CLK_A ON ON
EXT CLOCK OFF ON
12V DC from adapter supplied
External Clock Input (optional)
USB (Factory use only)
