Connections
Perform to the following steps to connect the Interposer (see the image below):
1. Set the SW1 and SW2 DIP switches to the desired clock selection according to the table shown below.
2. Install the SFF-8639 device under test (DUT) into the connector on the interposer as shown (will fit 2.5” or 3” drives).
3. Connect the Summit T3-8 Analyzer (or other compatible Teledyne LeCroy analyzer) to the interposer using the system iPass cable.
Note:
On the Interposer side the iPass cable should be connected to the “x2 2.5GT/s / 5.0GT/s” port for SATA Express only. For all other
applications, connect to the “x4 2.5GT/s / 5.0GT/s / 8.0GT/s” port (as shown in the diagram below).
4. Connect the analyzer to a host computer system using the USB port on the front panel of the Summit analyzer.
5. If not already done, install the PETracer software on the host machine.
6. Connect 12V DC using the AC adapter supplied with the interposer. (Make sure that the AC adapter is powered on).
7. Power on the analyzer.
8. Power on the host machine.
9. Launch the Teledyne LeCroy software application to monitor, record and view PCI Express traffic passing through the SFF-8639 Interposer.
10. Install the Interposer into the host system connector.
Device Under Test
(DUT)

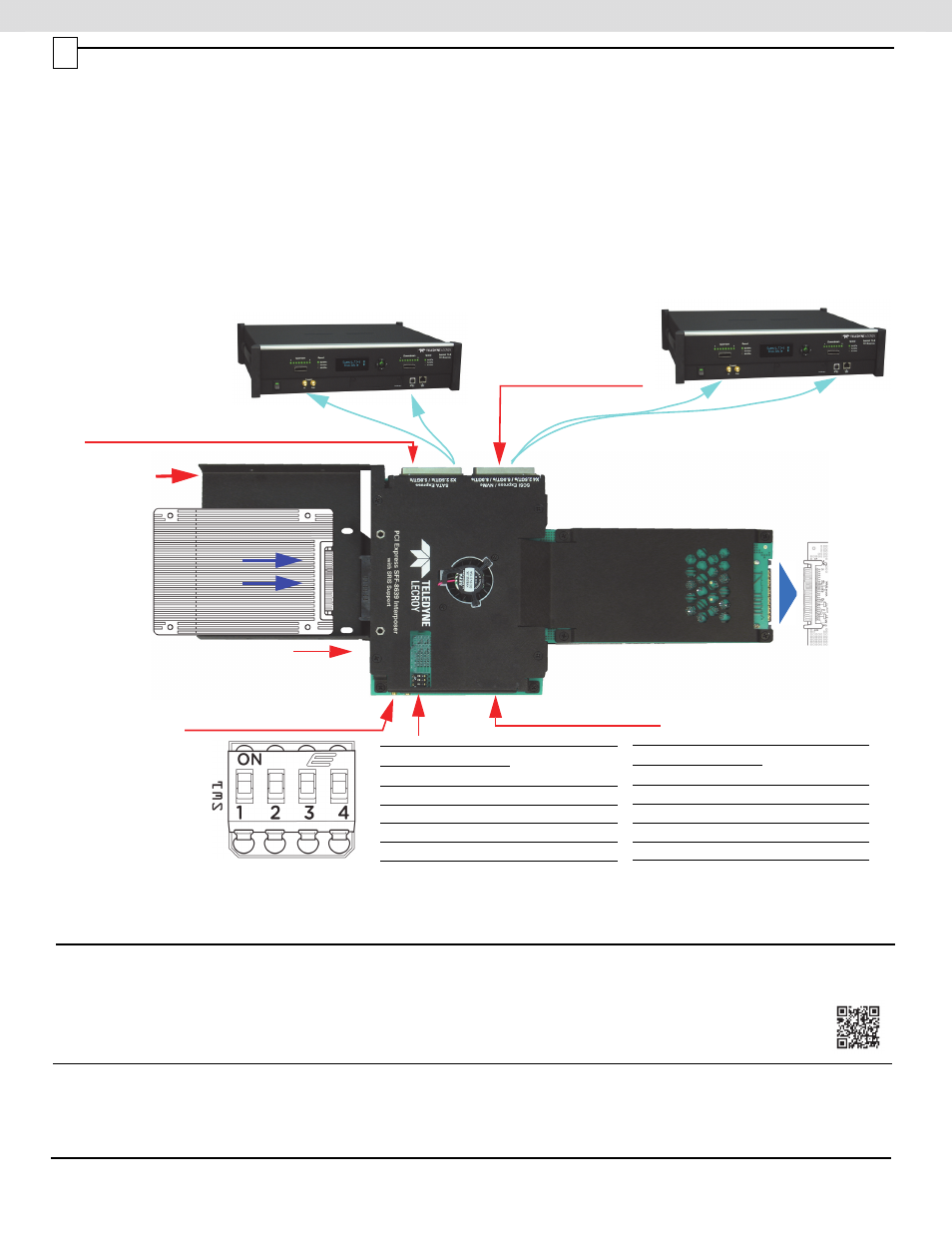

SFF-8639 Interposer Interconnection Overview
Analyzer connection for
NVME & SCSI Express
iPass Y-cable
PE010UCA-X
Summit T3-8 Analyzer
SFF - 8639 Host Slot
Compatible with
2.5" and 3" drives
12V DC from adapter supplied
External Clock Inputs (Optional) USB (Factory use only)
Analyzer connection for
SATA Express only iPass Y-cable
PE010UCA-X
SW1: Clock Select Cable A
3 4
ON ON Host Clk
OFF ON US_CLK
ON OFF DS_CLK
OFF OFF No clock supplied
SW1: Clock Select Cable B
1 2
ON ON Host Clk
OFF ON US_CLK
ON OFF DS_CLK
OFF OFF No clock supplied
Note: If using straight cable from Summit T24 refer only to table for Cable A.
Note: All switches in the ON position is the factory default.
