Section D

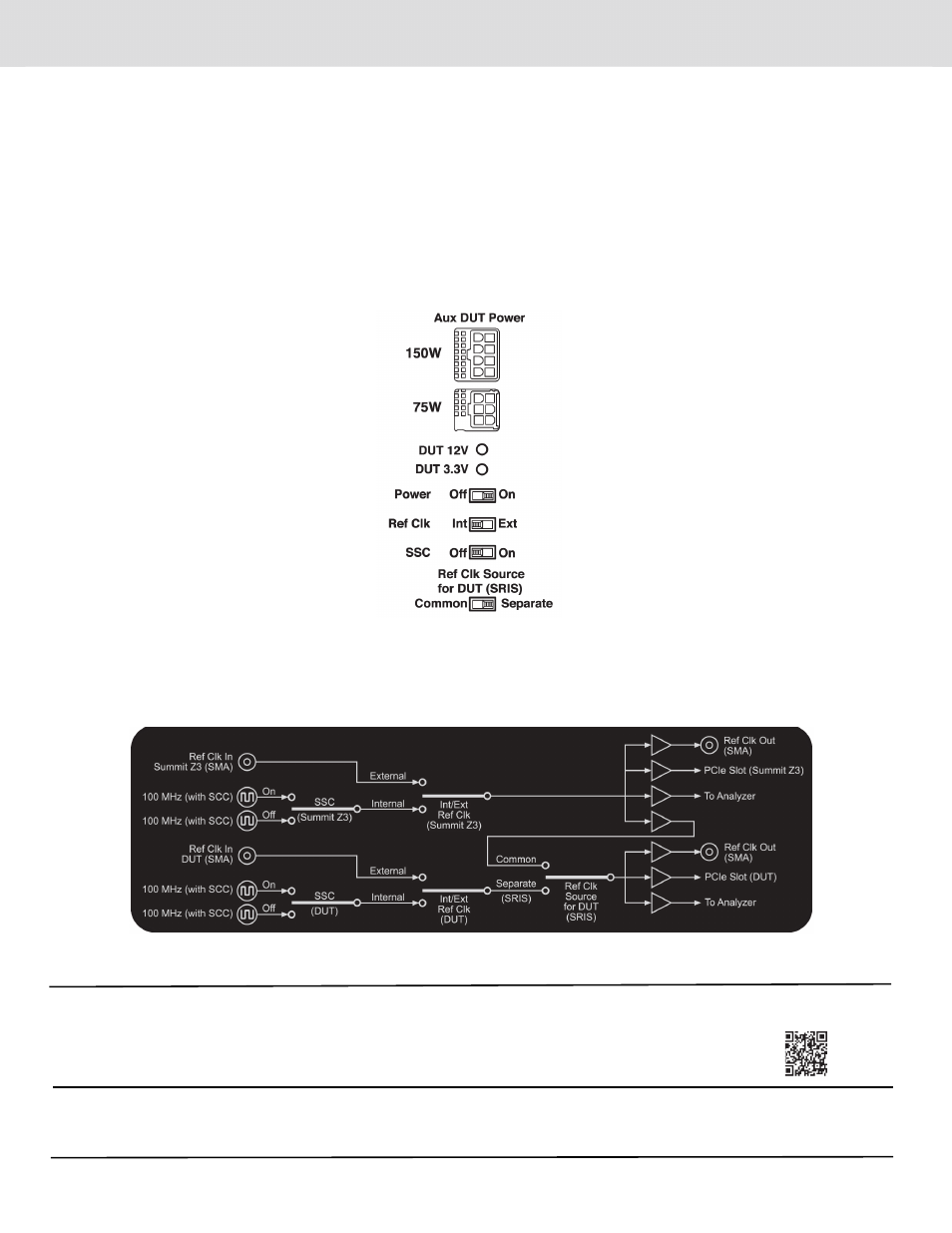

SRIS Control Switch for DUT: Select Common (both slots use the same clock) or Separate (each slot uses an
independent clock).
SSC Selector Switch (for DUT:) When using the internal reference clock, turns Spread Spectrum Clocking (SSC) on or off.
If using external reference clock, the switch has no effect.
DUT Reference Clock Selector Switch: Selects the internal or external clock. Clock is delivered to DUT slot.
DUT Power Selector Switch: The DUT Power switch controls power to the DUT slot.
DUT Power Monitor LEDs: 2 LEDs monitor power to the DUT: 3.3 V or 12 V.
DUT 6-pin DC Power Connector: Supplies 12 V up to 6.25 A for graphics cards (cable provided).
DUT 8-pin DC Power Connector: Supplies 12 V up to 12.5 A for graphics cards (cable provided).
Section E
Clock Logic Diagram: For selecting reference clocks including SSC and SRIS.
