CATC S CRIPTING L ANGUAGE 1.0 C HAPTER 13
Reference Manual Decoder Primitives
AddCell( "Warning", "Value5", "Warning cell",
0x00BB22, _WARNING );
# Use the [_FIXEDWIDTH, w] value to create a cell with
a fixed width of 20 in conjuction with the error value
to create a fixed width cell with a red value field:
AddCell( "Fixed Width 20", "Value6", "Fixed Width and
Error cell", 0x001122, [_FIXEDWIDTH, 20], _ERROR );
The output of the example is:
AddDataCell()
AddDataCell(raw, list or integer>,
any>, ...)
Return value
None.
Comments
Creates an expandable/collapsible cell for viewing raw data such as data payloads.
Data can be raw bytes, an integer, or a list. If an integer is used, it will be interpreted
as 4 bytes of data. Specifying
_BYTES or _DWORDS in an additional_info
field will force data to be interpreted as bytes or quadlets. _COLLAPSED ,
_EXPANDED , _HIDDEN and _SHOWN are all interpreted the same is in a regular
AddCell call.

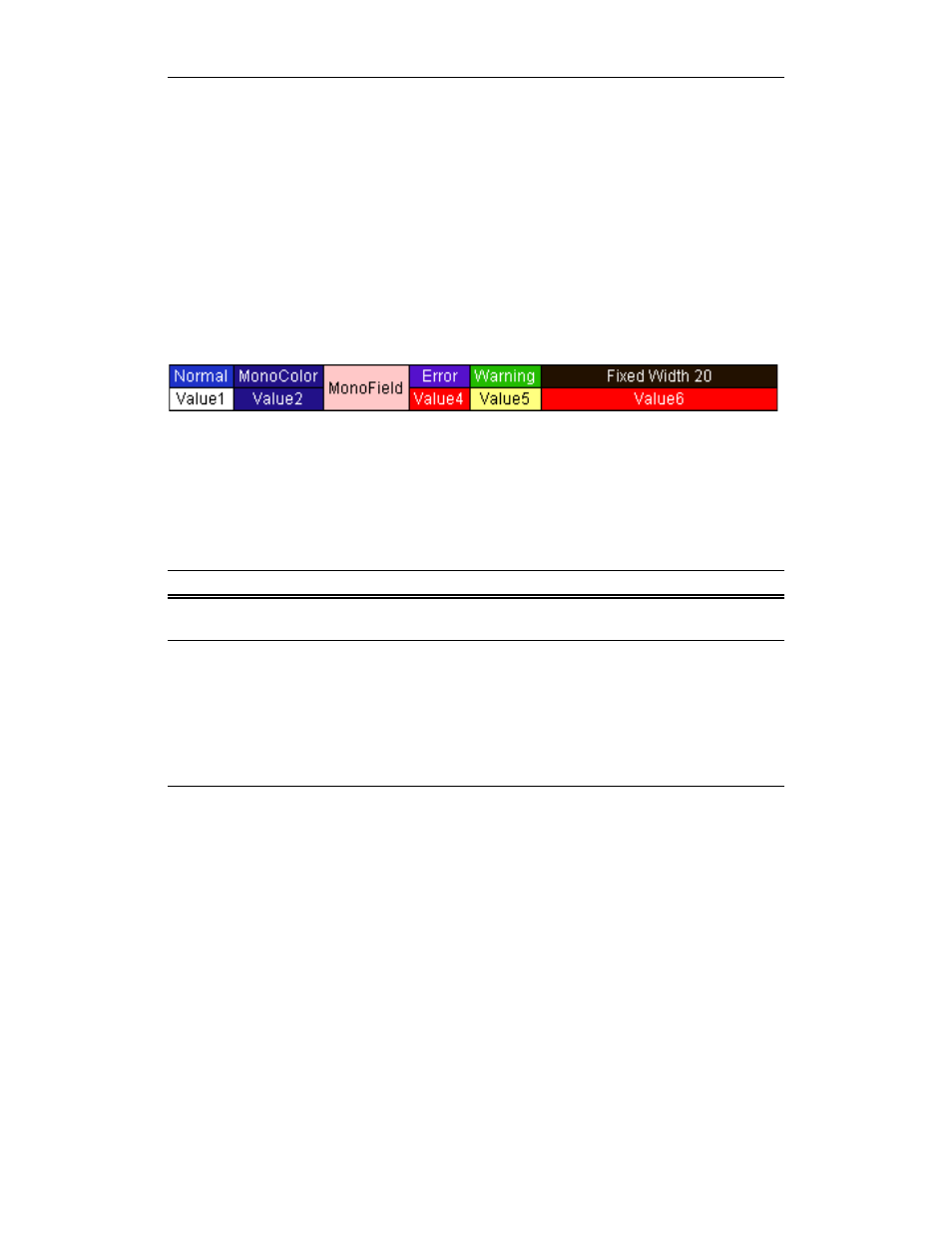

Figure 13-1: Example output for AddCell
Parameter Meaning Default Value Comments
data_value raw, list, or
integer
Interpreted the same way as GetNBits inter-
prets data_source
additional_info any Used to create special cells or to modify cell
attributes. Possible values are:
_BYTES
_COLLAPSED
_DWORDS
_EXPANDED
_HIDDEN
_SHOWN (default)
