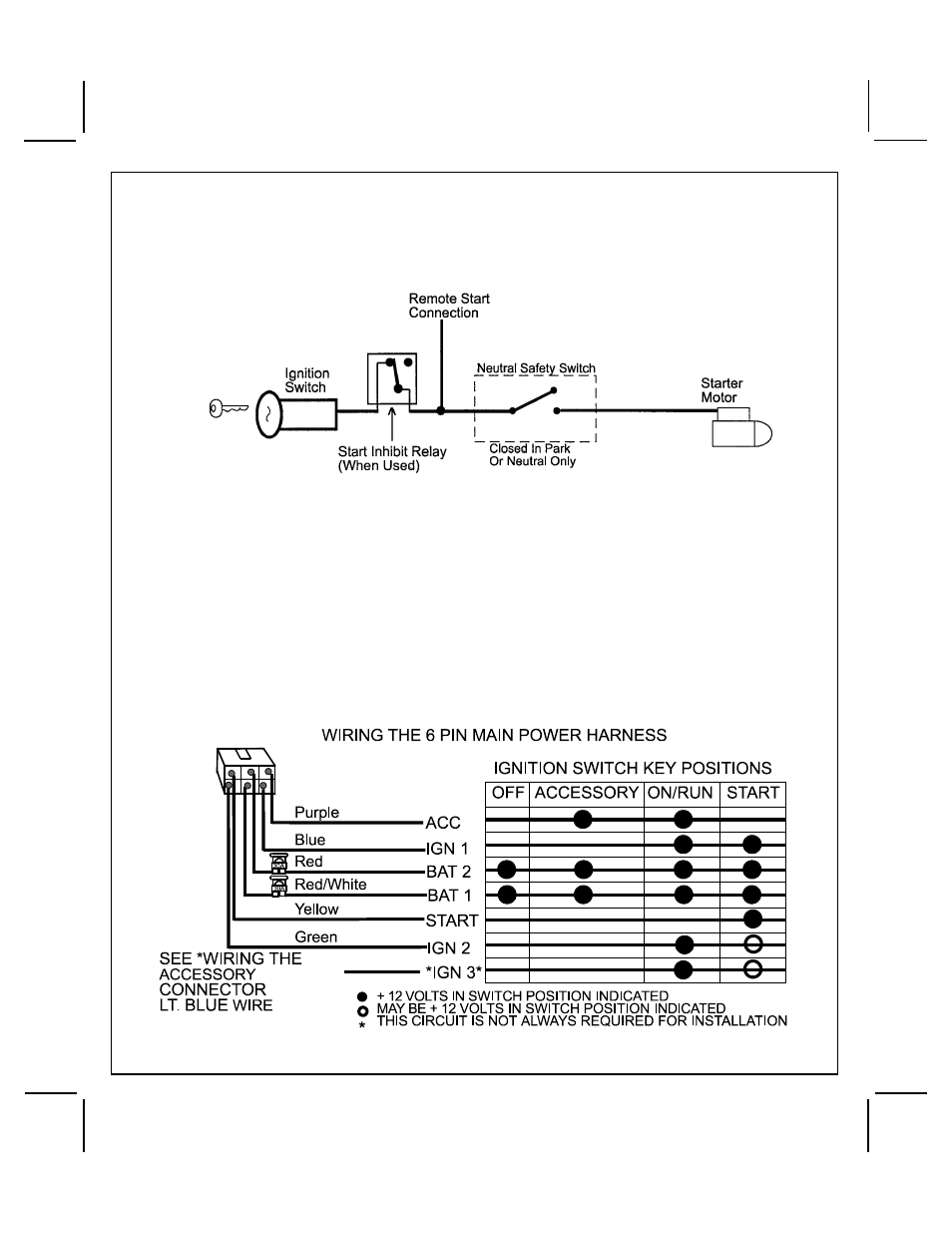

SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.
BLUE WIRE: Ignition 1 Output
Connect this wire to the ignition 1 wire from the ignition switch. This wire will show +12 volts when the ignition key
is turned to the to the "ON" or "RUN" and the "START" or CRANK" positions and will have 0 volts when the key is
turned to the "OFF" and "ACCESSORY" positions.
For Diesel Applications, this wire must be connected to the ignition circuit that powers the glow plugs if the vehicle
requires glow plug pre-heating.
GREEN WIRE: Ignition 2 Output
Connect this wire to the ignition 2 wire from the ignition switch. This wire will show + 12 volts when the ignition key
is turned to the "ON" or "RUN" position and is some cases the "START" or CRANK" position. This wire will show
0 volts when the key is turned to the "OFF" and "ACCESSORY" positions.
NOTE: See programming information concerning this wire to allow output during the "START" mode.
