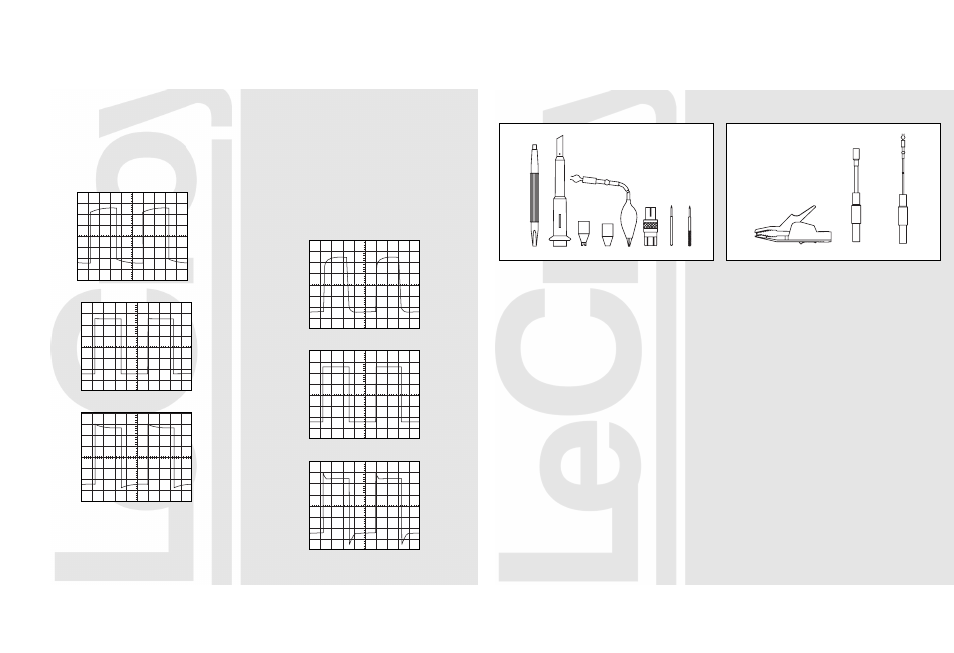

LF P ROBE A DJUSTMENT (100:1)
Connect the probe to a 1 kHz square wave
signal. Adjust compensation trimmer in the
BNC-box for optimum square wave response.
Undershoot
Correct
Overshoot
HF P ROBE A DJUSTMENT
The probe can be adjusted for high frequency if
necessary. Remove boot and isolation from
BNC-box. Connect the probe to 1 MHz square
wave signal. Turn the PCB in the BNC-box by 180 °
and adjust this trimmer for optimum square wave
response. Then replace all parts again in their
previous position.
Undershoot
Correct
Overshoot
S TANDARD ACCESSORIES SUPPLIED
WITH THE PROBE
Accessories Quantities
1. Trimming tool 1
2. Sprung hook 1
3. IC Insulating tip (red) 1
4. Insulating tip (red) 1
5. Ground lead (22 cm) 1
6. BNC Adapter 1
7. Straight tip (0.8 mm) 1
8. Spring contact tip (0.8 mm) 1
9. Crocodile clip 1
10. Flexible 4 mm security adapter 1
11. Security ground lead 1
The following accessories are rated up to:
Sprung hook
1000 V
BNC Adapter 100 V
Crocodile clip 1000 V
Flexible 4 mm security adapter 1000 V
O PTIONAL P ROBE K IT P K 103
Same as standard accessories supplied with
probe, except for:
Straight tip (5 pieces)
Spring contact tip (5 pieces)
8 7 6
5
2
4 3
1
9
10
11
