1-29 ASUS A8V-VM SE
The system panel connector is color-coded for easy connection. Refer to
the connector description below for details.
A8V-VM SE System Panel Connector
F_PANEL
PLED- PWR PLED+
Ground
GND
Reset
IDELED+ IDELED-
HD LED RESET
PLED PWRSW
R
A8V-VM SE

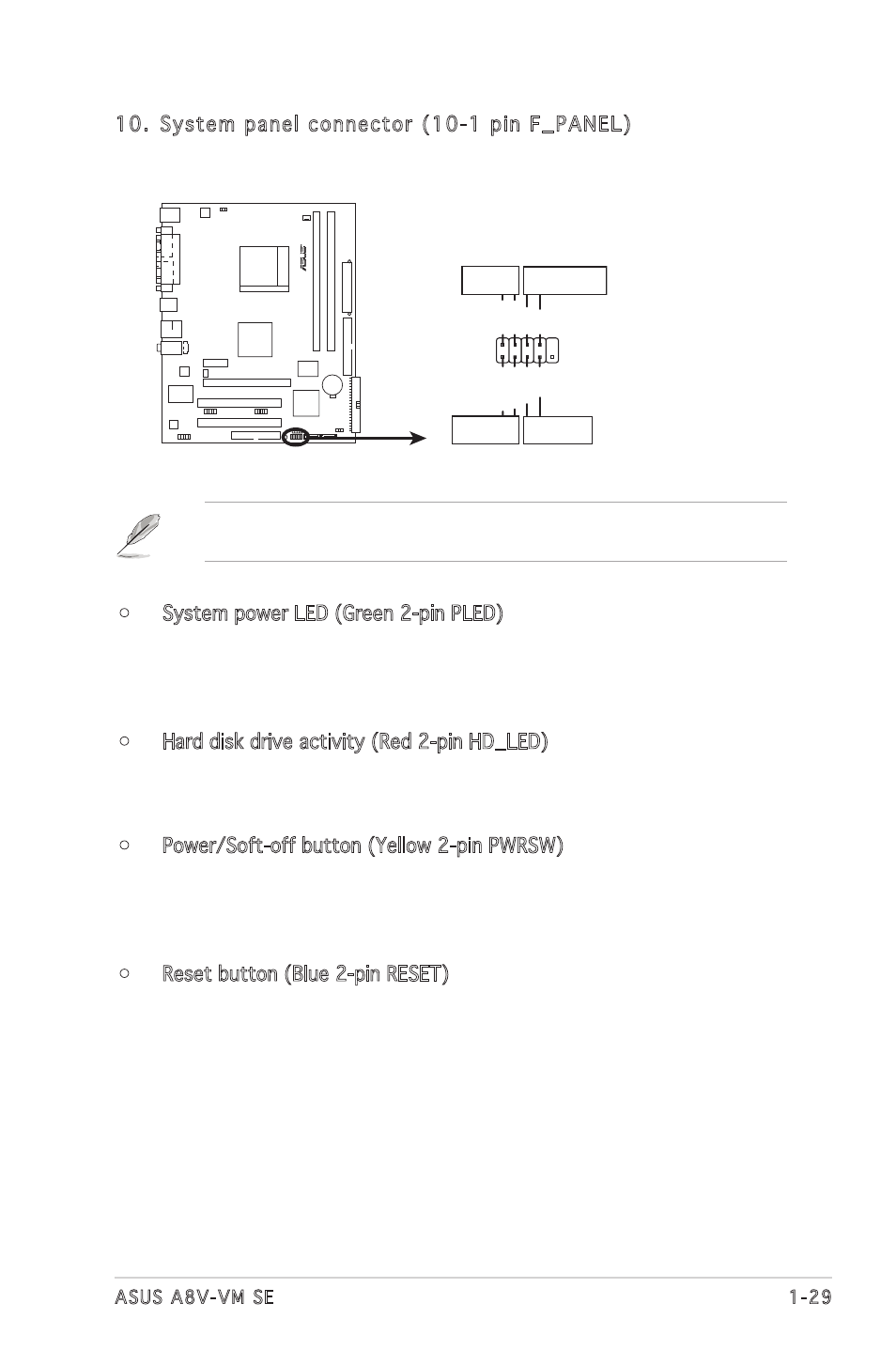

10. System panel connector (10-1 pin F_PANEL)
This connector supports several system chassis-mounted functions.
• System power LED (Green 2-pin PLED)
This 2-pin connector is for the system power LED. Connect the
chassis power LED cable to this connector. The system power LED
lights up when you turn on the system power, and blinks when the
system is in sleep mode.
• Hard disk drive activity (Red 2-pin HD_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or flashes
when data is read from or written to the HDD.
• Power/Soft-off button (Yellow 2-pin PWRSW)
This connector is for the system power button. Pressing the power
button turns the system ON or puts the system in SLEEP or SOFT-OFF
mode depending on the BIOS settings. Pressing the power switch for
more than four seconds while the system is ON turns the system OFF.
• Reset button (Blue 2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for
system reboot without turning off the system power.
