1-28 Chapter 1: Product introduction
• We recommend that you connect a high-definition front panel
audio module to this connector to avail of the motherboard high-
definition audio capability.
• If you want to connect a high-definition front panel audio module to
this connector, make sure the High Definition Audio item in the BIOS
is set to [Auto]. See page 2-24 for details.

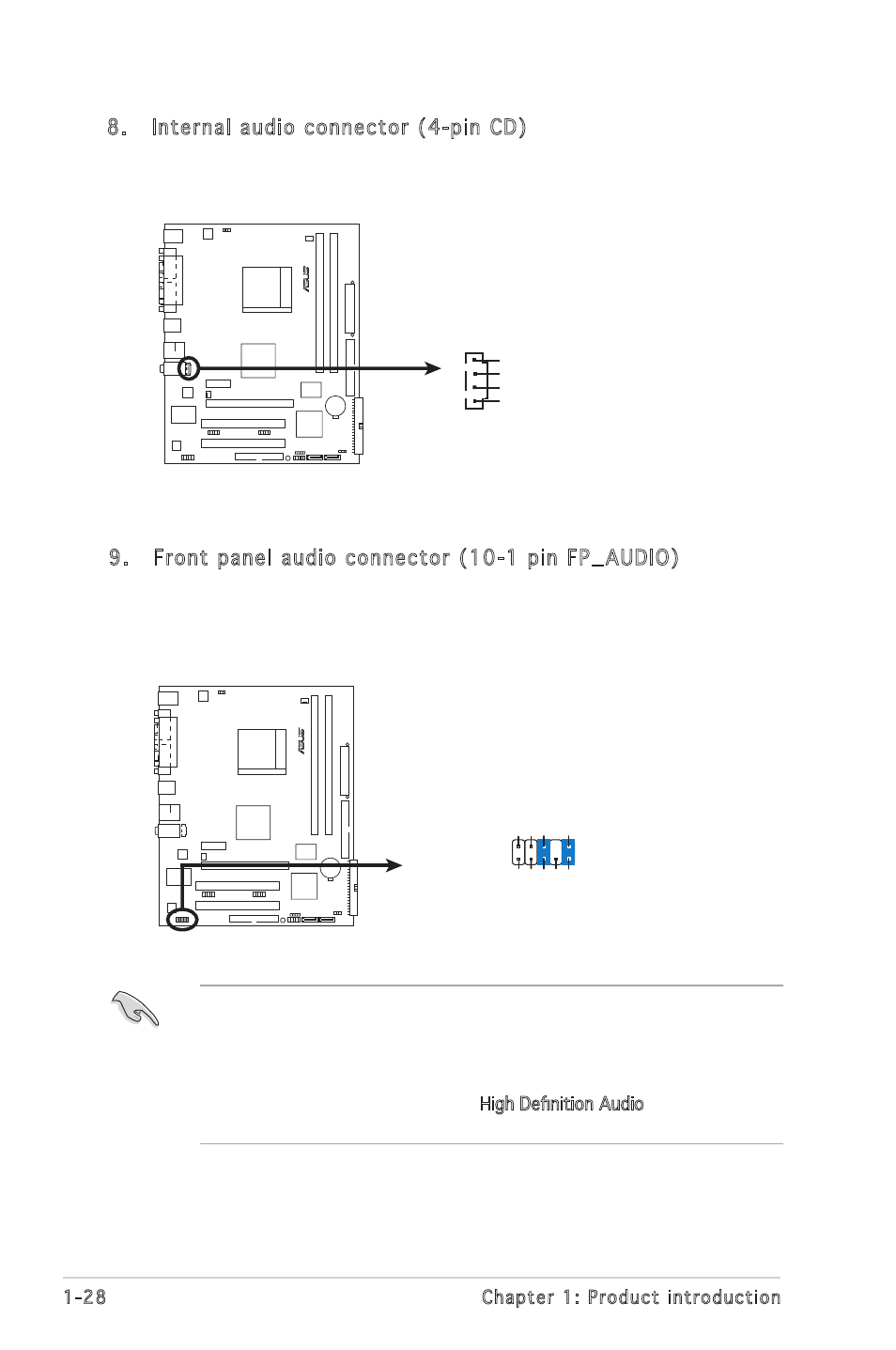

9. Front panel audio connector (10-1 pin FP_AUDIO)
This connector is for a chassis-mounted front panel audio I/O module
that supports High Definition Audio. Connect one end of the front
panel audio I/O module cable to this connector.
A8V-VM SE Front Panel Audio Connector
HP_HD
MIC2_L
HP_R HP_L
MIC2_JD
Jack_Sense
MIC2_R
PRESENSE# AGND
FP_AUDIO
R
A8V-VM SE
8. Internal audio connector (4-pin CD)
This connector is for the 4-pin audio cable that connects to the audio
connector at the back of the optical drive.
R
A8V-VM SE
A8V-VM SE Internal audio connector
CD(Black)
Right Audio Channel
Left Audio Channel
CD_GND
CD_GND
