WR6Zi-ExtRef-In/Out Accessory
Enabling the External Reference Clock
When using the WR6Zi-ExtRef-IN/OUT adapter, set your oscilloscope to look for the external reference
clock. Do this from the timebase menu at Timebase → Horizontal Setup.
l
The TimeBase dialog is shown. Touch the Clock Source tab to the right of TimeBase to show the
Clock Source dialog.
l

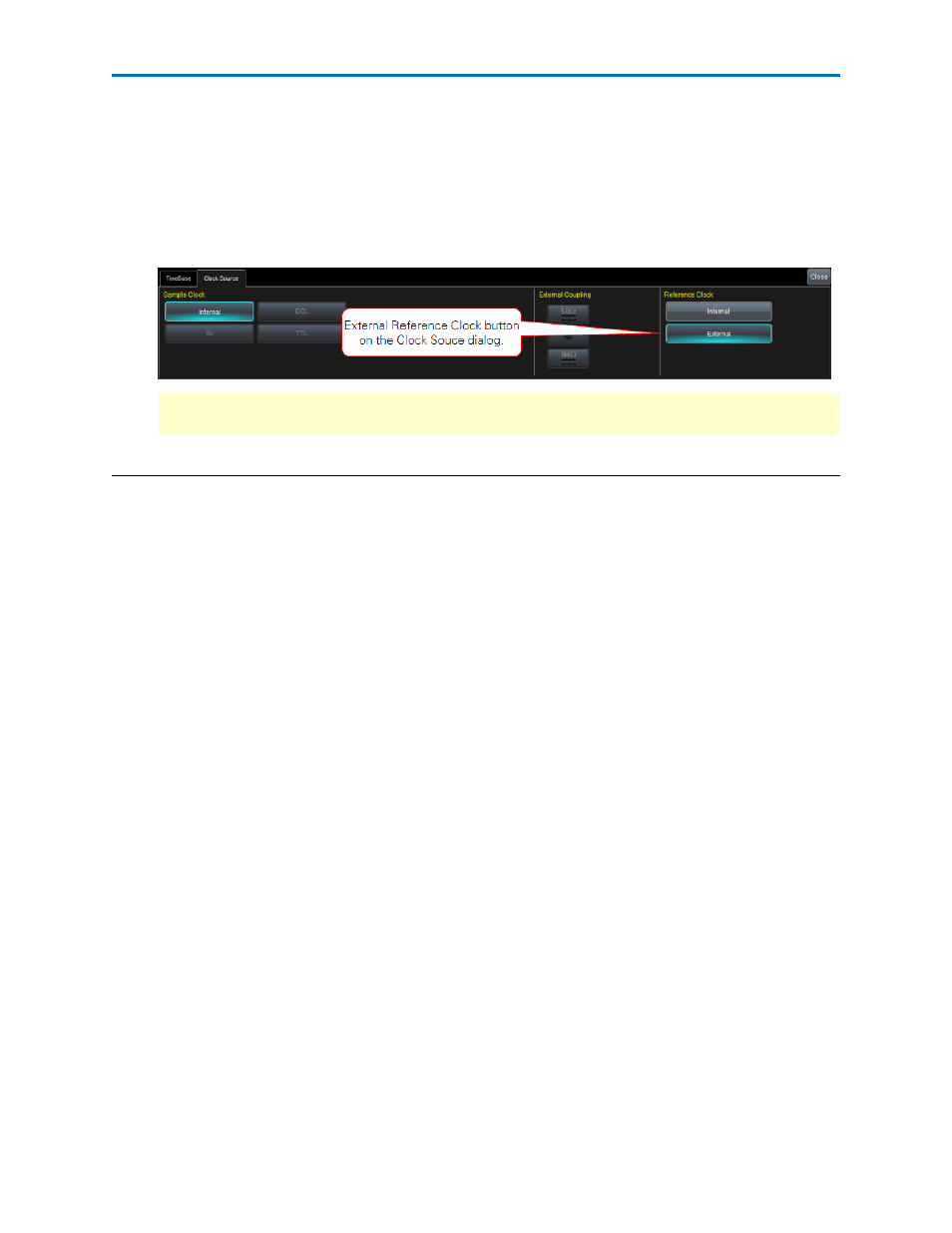

Touch the External button on the Reference Clock section of the Clock Source dialog.
NOTE: The Internal and External buttons are only both shown and enabled when the adapter is
properly connected to the LBUS Connector.
