OC910 Instructions
Modification 2: Lower MCMZi
If you wish to lower the height of the MCMZi control module for easier viewing, remove the top surface of the
cart where the MCMZi normally sits. The MCMZi can sit on the shelf just below.

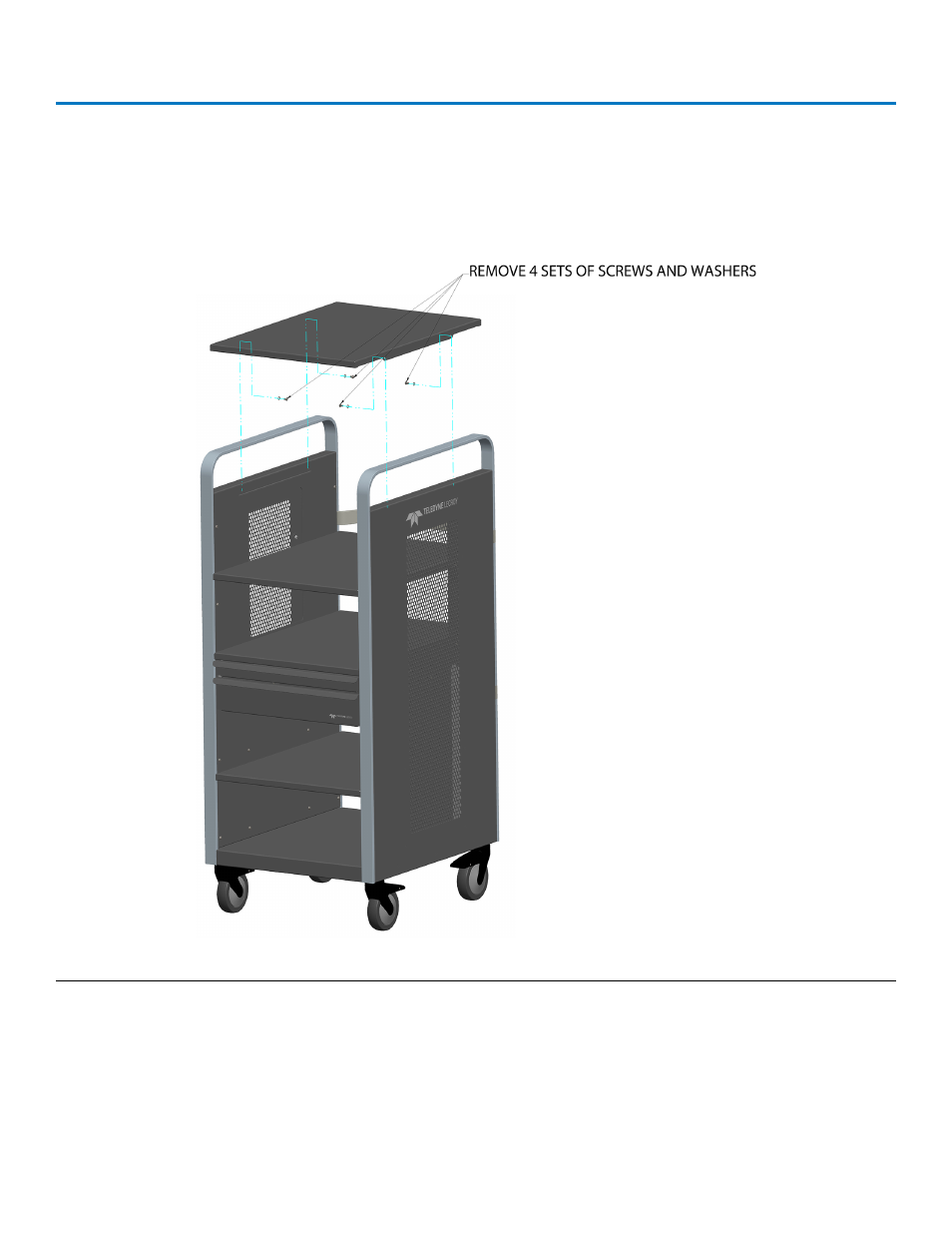

Use a metric hex key (3.0 mm across flats) to remove the four fasteners attaching the top.
Note: Do not remove additional shelves.
