Voltage Drop Calculator
User Guide – Version 2

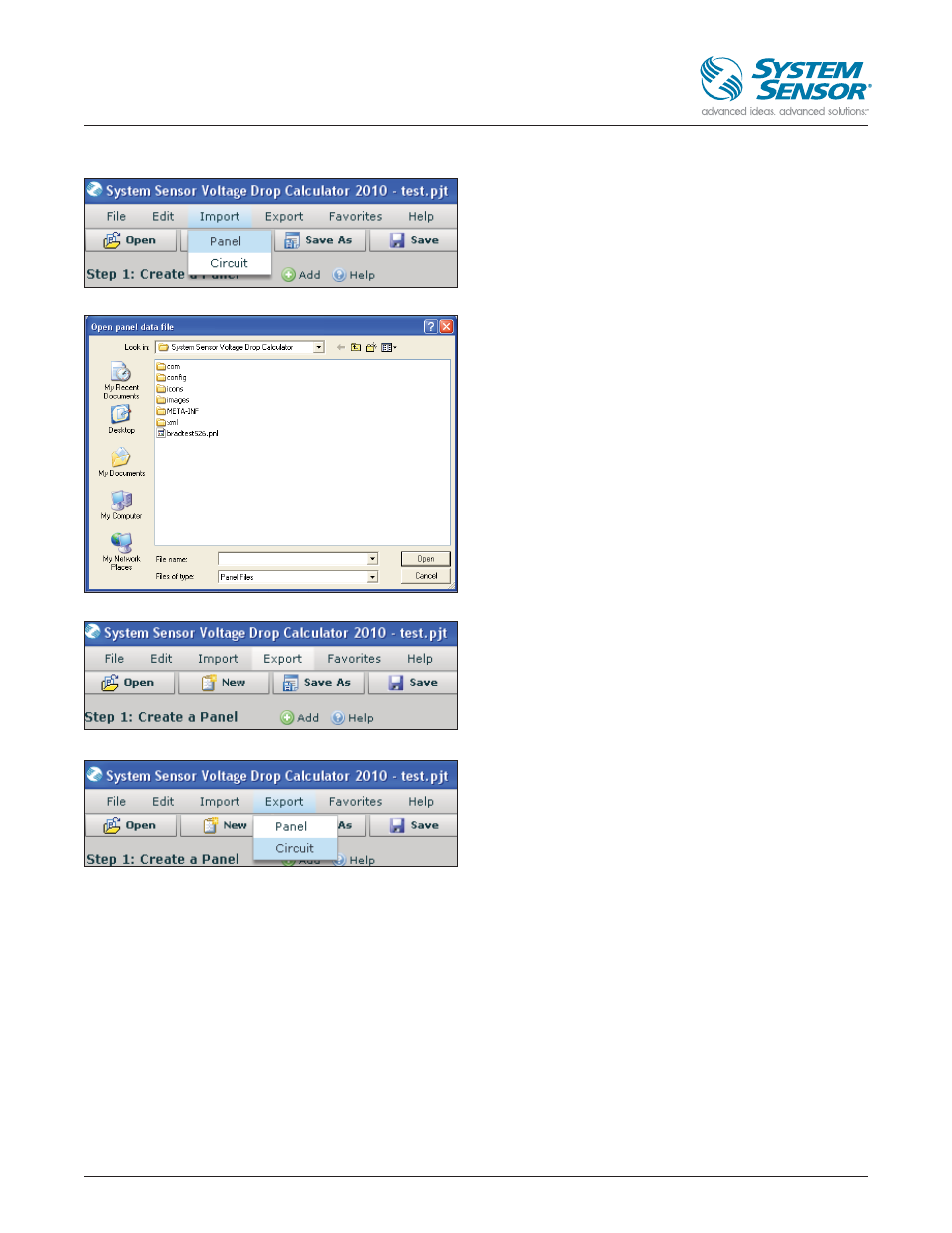

6.1.2 Importing Panel
Select “Panel” from the drop-down menu to import a panel.
A window showing your computer files will open next.
Navigate to the panel you want to import, select it, and
click “Open”.
6.2 Export
6.2.1 Export Circuits
To export panels or circuits, select “Export” from the top
menu bar.
To export a circuit, select “Circuit” from the drop-down menu.
