10
Voltage Drop Calculator
User Guide – Version 2

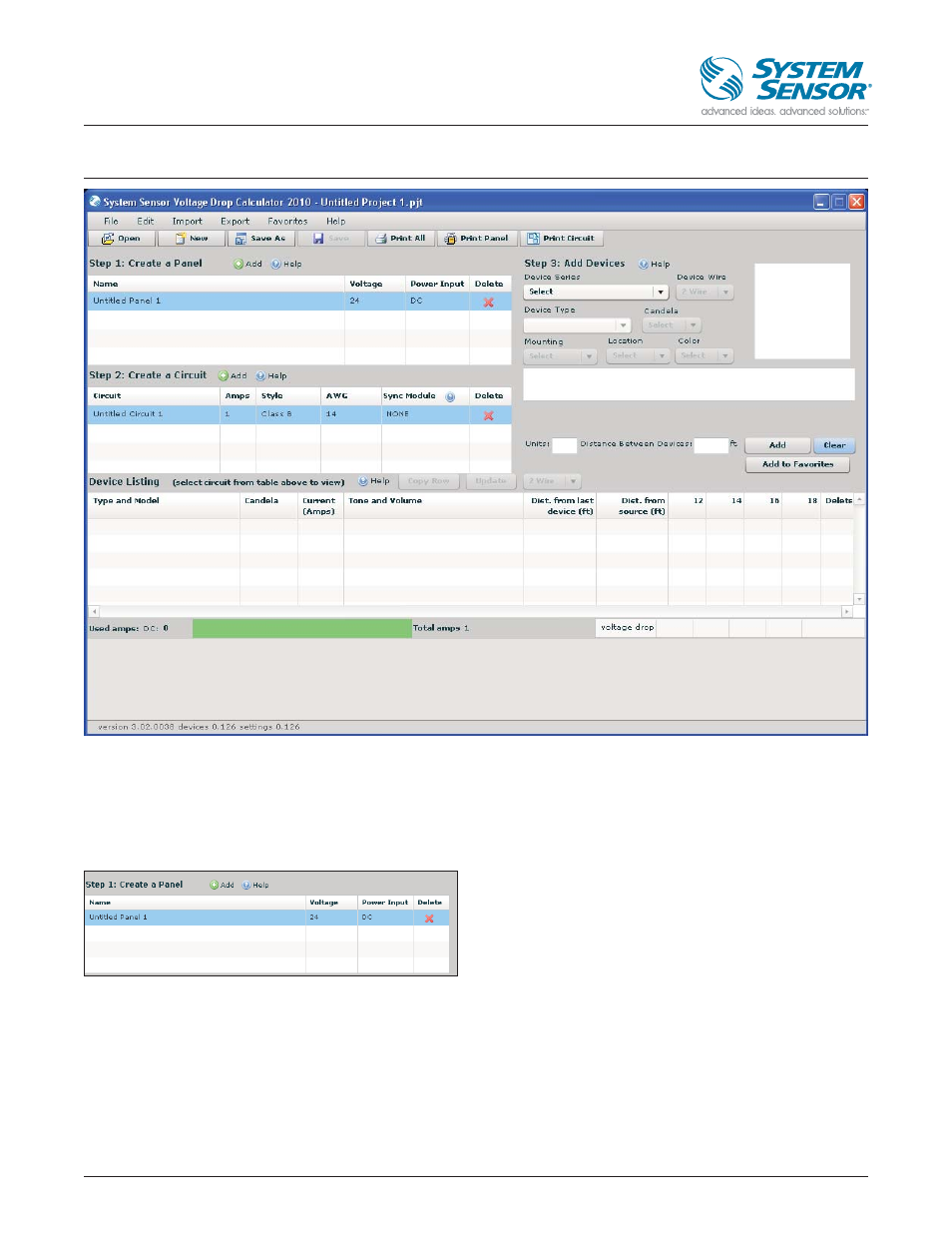

3 DESIGN PAGE
All project design work for the Voltage Drop Calculator is accessible from this page, including Create a Panel, Create a Circuit, and
device listing (adding devices). While these tasks can be completed in any order, this Help Guide performs the tasks in “step”
order.
NOTE: The default values for the Panel and Circuit can be updated to fit your specific job.
3.1 Create a Panel
When creating a panel, you can update the default values to
set the panel’s Name, Voltage, and Power Input. The panel’s
name can be changed by clicking on the default name (in
this case, “Untitled Panel 1”), and typing a new name.
Voltage and Power Input can be selected using drop-down
menus that appear by clicking on the current or default
value. To add another panel, click the green “Add” button. To
remove an existing panel, click the red “X” in the “Delete”
column. If more than one panel is in the design, select one at
a time to add circuits.
