26
Voltage Drop Calculator
User Guide – Version 2
6 IMPORTING/EXPORTING PANELS OR
CIRCUITS

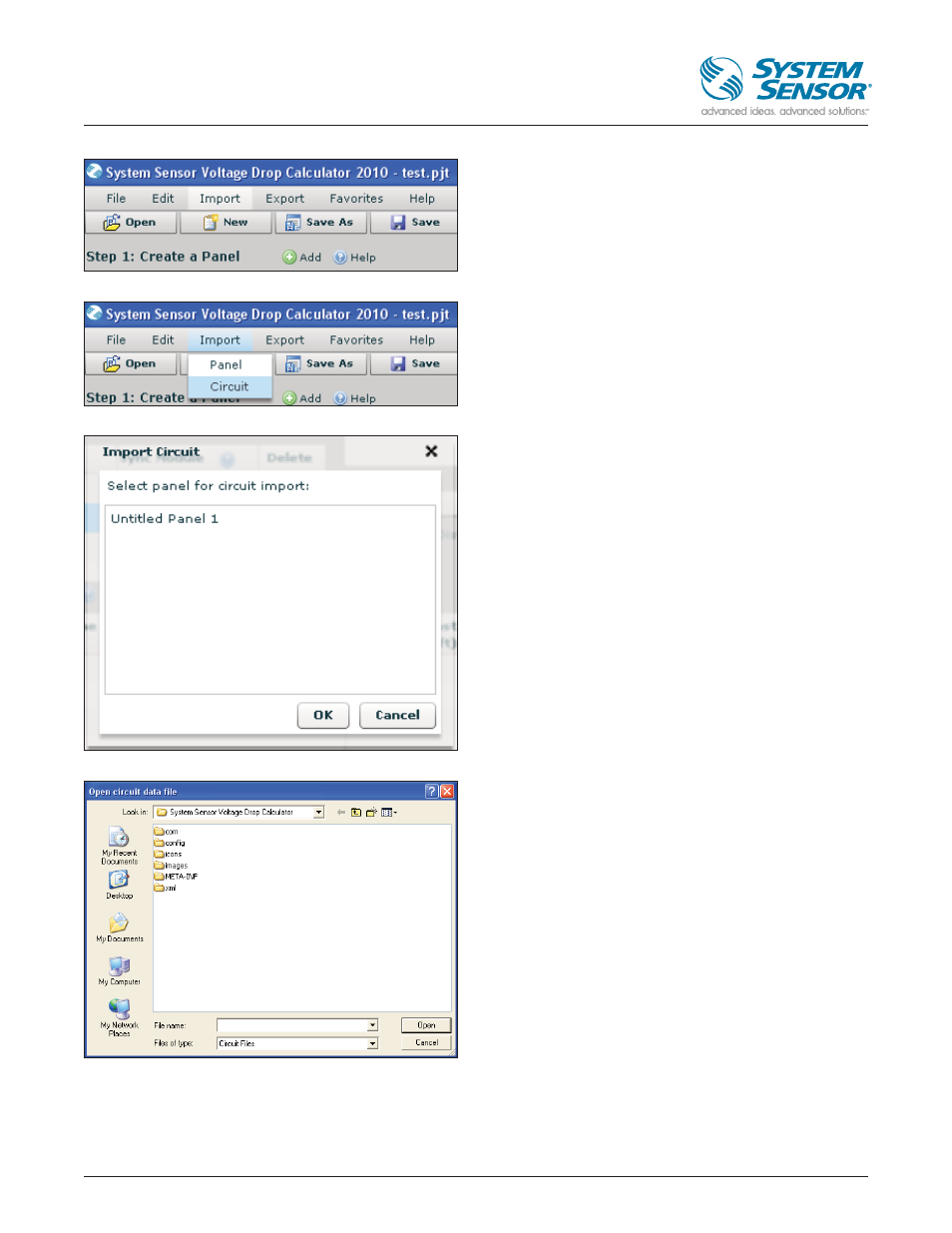

Select “Import” from the top menu bar to import panels
or circuits.
6.1 Import
6.1.1 Importing Circuit
Select “Circuit” from the drop-down menu to import a circuit.
Selecting “Circuit” opens a dialogue to choose which panel
the import will be used in. Click on the panel you want to
use. Then click “OK” to continue or “Cancel” to abort.
A window showing your computer files will open next.
Navigate to the circuit you want to import, select it, and
click “Open”.
