Superwinch DC POWER DRIVES - Manual (Page 3)

Gearbox Type Right Angle
Gear Reduction Worm and Wheel
Braking Inherent-See Warning in Safety Section
Mounting Three point bulkhead, requiring three
5/16-18 UNC Grade 5 or better bolts
Output Shaft(s) 3/4 OD with 5/16 through hole and
3/16 keyway
S P E C I F I C AT I O N S
3
D I M E N S I O N S

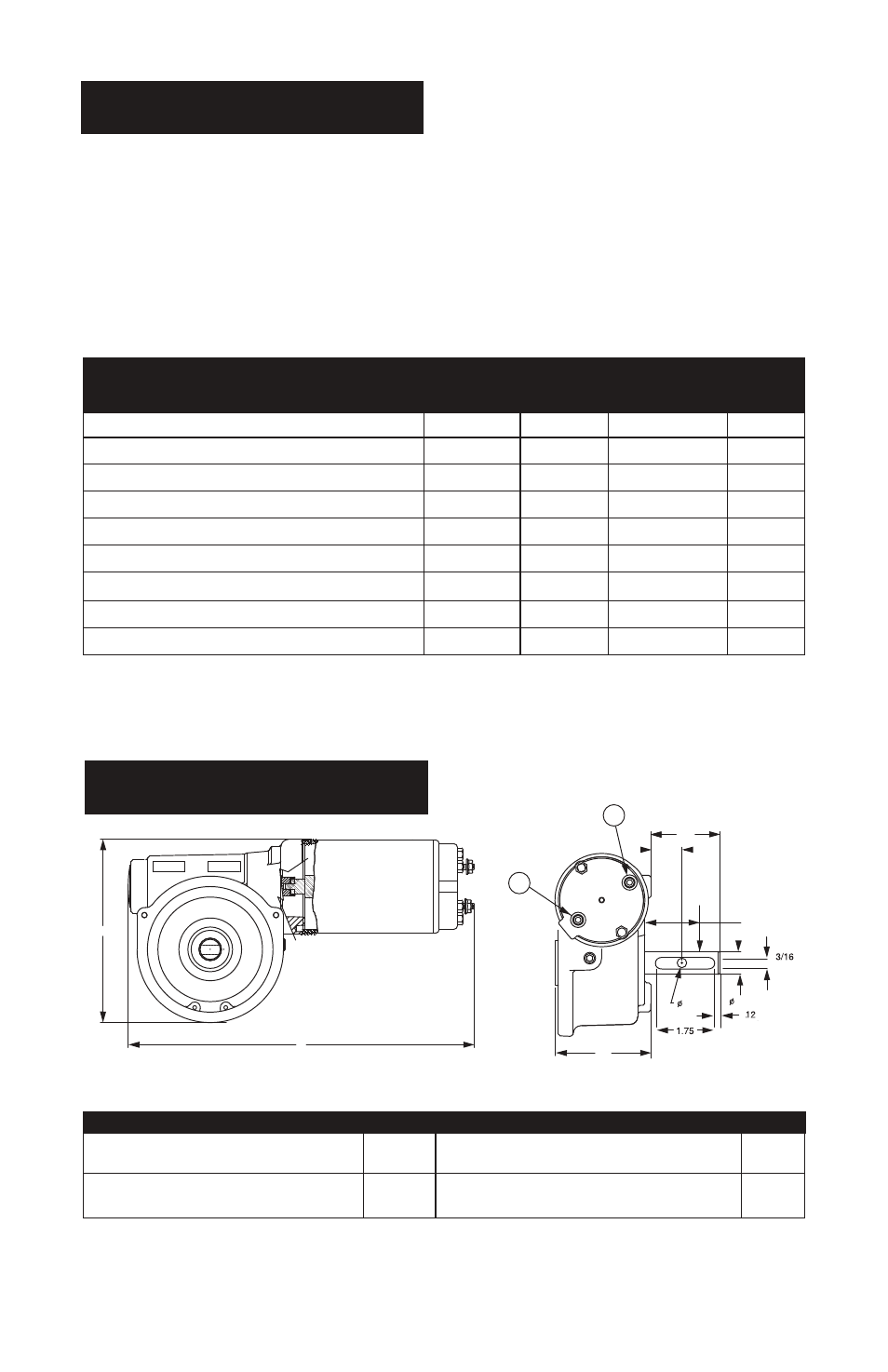

Figure 2: Power Drive Dimensions
Table 1: Specifications
OHL = Overhung Load
Weight Motor Power
Power Drive #'s Ratio (Lbs.) Voltage (hp)
719527, 719520 90:1 10.5 12V DC 1.3
719627 90:1 11.5 12V DC 1.8
719537 90:1 10.5 24V DC 1.3
719637, 719630 90:1 11.5 24V DC 1.8
716527 60:1 10.5 12V DC 1.3
716627 60:1 11.5 12V DC 1.8
716537 60:1 10.5 24V DC 1.3
716727 60:1 12.3 12V DC 2.1
Power Drive #'s "L" Power Drive #'s "L"
719527, 719537, 716527 719630 11.6 11.0
719627, 719637, 716627 11.4
S P E C I F I C AT I O N S
L
⁄
6.1
716727, 719727
719727 90:1 12.3 12V DC 2.1
12.0
1.02
2.3
3.1
3/4
2
1
OHL
P
5/16
