24
CAUTION
!
5
3. Disconnect the vehicle negative and
positive battery leads. Route the long
red and black color coded wires to the
battery. To ensure against insulation
abrasion and/or cutting, apply several
layers of electrical tape where wiring
may come in contact with sharp parts
on the vehicle. Attach the red color
coded wire to the battery positive and
reattach the terminal to the battery.
If your vehicle is equipped with side
pole terminals, it may be necessary
to obtain auxiliary side terminal bolts
from your local auto parts dealer to
make these connections.
Connect the black color coded wire to
the battery negative terminal, then
connect the terminal to the battery.
4. Pull and turn the freespool clutch lever
to the, “disengaged” position. Pull sev-
eral feet of wire rope off the drum.
Return the clutch lever back to the,
“engaged” position. Plug in remote
pendant control. Push button momen-
tarily to check rope drum rotation
direction. If drum rotates in the wrong
direction, recheck your wiring.
Automobile batteries
contain gasses
which are and explosive.
Wear eye protection during installa-
tion and remove all metal jewelry.
Do not lean over battery while mak-
ing connections.
PENDANT OPERATION
The handheld pendant switch activates
a solenoid that activates power to the
winch motor.
To connect pendant control, remove the
cover on the plug receptacle and insert
the plug end of the remote switch.
The plug on the pendant control cord
one way. Lock the plug by rotating the
unlock the plug by rotating collar in the
opposite direction. The switch returns
to the “off” position when released. To
change direction, press the button for
the other direction.
PENDANT BATTERY INSTALLATION
To install the AAA batteries into the hand-
held pendant, remove the battery door
on the back of the pendant and insert the
batteries as noted on the graphic inside
the battery compartment. Replace the
battery door.
The switch assem-
bly must be kept
free of dirt and moisture to ensure
safe operation.
The wire rope may
break before the
winch stalls. For heavy loads use a
pulley block to reduce the load on
the wire rope.
If the winch motor
stalls, do not con-
tinue to apply power to the winch.
To prevent unauth-
orized use of the
winch, remove the pendant control
and store it in a clean dry area such
as the glove box.
CAUTION !
CAUTION !
!
WARNING !
WARNING !
!
OPERATION
Figure 3
Rope
Out
Rope
In

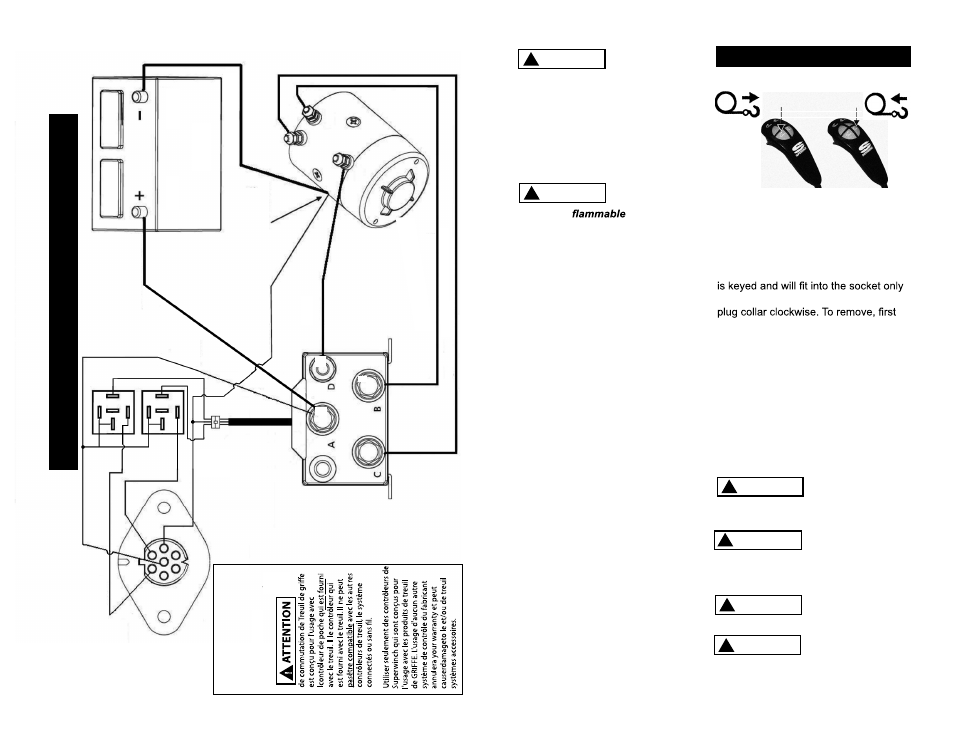

Treuil de la Série Talon
T
E
L
E
G
R
A
P
H
IE
R
D
IA
G
R
A
M
LE SO
L
NOIR DE DOUILLE
LE POUVOIR ROUGE DE DOUILLE
ROUGE + 12V DC 2
A
WG
POSITIF
NEG
ATIF
PILE
SO
L NOIR 2
AWG
LA
VIS DE SO
L
DE MOTEUR DE
TREUIL
LE SO
L NOIR
DE SOLENOIDE
2A
WG
TRANSPO
R
TE L
A BARRE
2A
WG
TRANSPO
R
TE L
A BARRE
2A
WG
TRANSPO
R
TE L
A BARRE
D
JAUNE
Contrôle de poche : Noir-à-le jaune = EN (L
ED
ro
ug
e
su
r
Noir-à-le marron = HORS (L
ED
v
er
te
su
r
)
DANGE
If different length
bolts, nuts, washers
and other hardware are required for
your installation, always use hard-
ware that equals or exceeds the
strength grade of the supplied hard-
ware. In no circumstance should the
end of the mounting bolts touch the
inside of the casting mount pockets.
!
WARNING !
