4912CAH & 4920CAH
4
rev. 12/19/06
ITEM NO.
DESCRIPTION QTY.
1
BASE
1
2
*
BALL 1/4"
1
3
*
SEAL
1
4
RELEASE VALVE
1
5
*
O-RING
1
6
CYLINDER
1
7
*
WASHER
1
07-1
*
SEAL
1
07-2
RSAMPC
AIR MOTOR PUMP CYLINDER
(INCL. # 07-1)
1
8
PUMP CYLINDER
1
9
*
O-RING
1
10
RS49HDL12 HANDLE
1
11
*
CUP SEAL
1
12
*
BACK UP RING
1
13
PUMP PLUNGER
1
14
HANDLE SLEEVE
1
15
COTTER PIN
3
16
PIN
1
ITEM NO.
DESCRIPTION QTY.
17
PIN
2
18
*
PACKING
1
19
RESERVOIR
1
20
*RS49FP FILLER PLUG
1
21
EXTENSION SCREW 1
22
RAM
1
23
CUP SEAL
1
24
*
CAP WASHER
1
25
*
SNAP RING-G
1
26
*
PACKING
1
27
TOP NUT
1
28
*
O-RING
1
29
SPRING
2
30
SPRING PLATE
1
31
NUT
1
32
O-RING
1
33
O-RING
1
34
PACKING
1
35
THROTTLE
1
36
SPRING
1
ITEM NO.
DESCRIPTION QTY.
37
RS12CAHVB VALVE BODY
1
(INCL. # 31-44)
38
HOSE CONNECTOR
1
39
SPRING
1
40
AIR FILTER
1
41
LEVEL
1
42
LOCK LEVER
1
43
LEVER PIN
1
44
HOSE CONNECTOR
1
45
HOSEBAND
2
(INCL. W/ #46)
46
RS12CAHHA
AIR HOSE ASSY.
1
(INCL. #45 & 47)
47
PUMP ELBOW
1
(INCL. W/ #46)
48
RS12CAHAM AIR MOTOR
1
(INCL. # 07-1 & 07-2)
49
SPRING WASHER
2
50
NUT
2
51
EYE BOLT
2

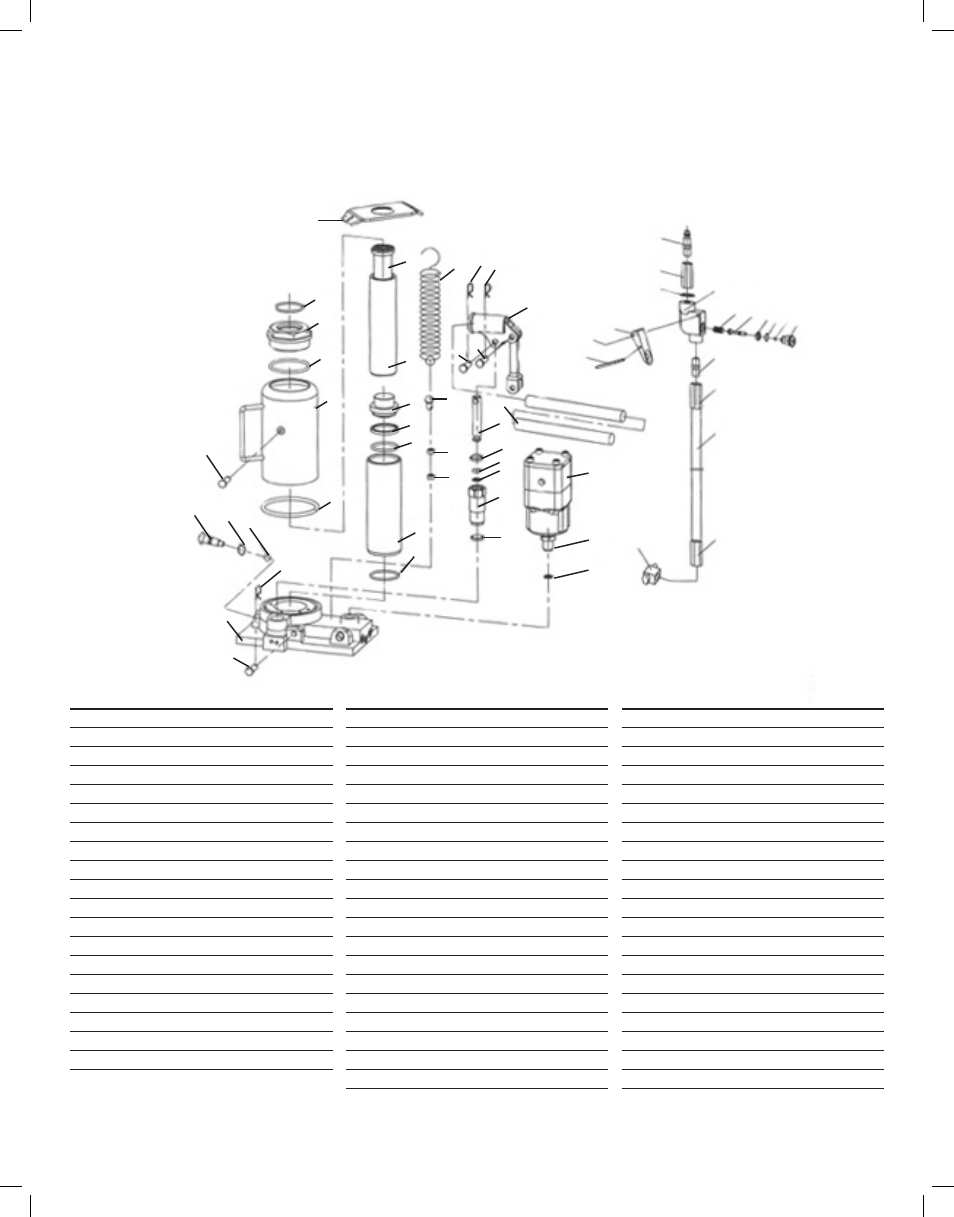

4912CAH &
4920CAH
12 & 20 TON CAPACITY
AIR/HYDRAULIC
BOTTLE JACK
38
39
40
41
43
42
37
36 35 3433
31
32
44
45
46
45
47
07-1
17
01
02
03
04
20
18
19
26
27
28
30
21
22
23
24
25
06
05
07
08
09
11
12
13
17
16
15
15
14
10
48
29
51
50
49
15
*Also Available- RS12CAHSK seal kit for 4912CAH and RS20CAHSK seal kit for 4920CAH (items identified by *).
NOTE: Only seal kits and items identified by a part number are available for purchase.
07-2
