Chapter 5

102

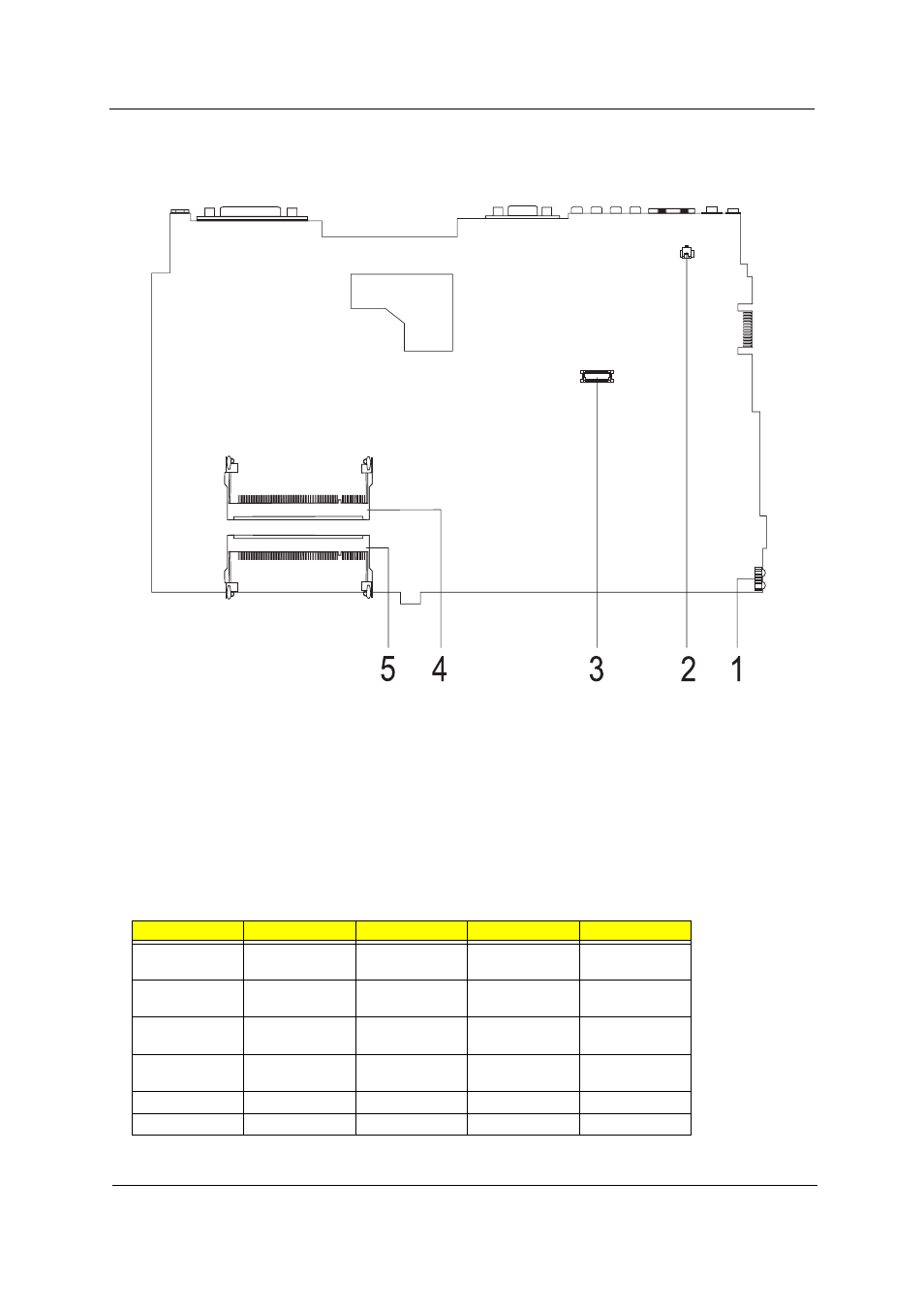

Bottom View

1

U7

FIR Port

2

RING1

Modem Cable Connector

3

MDC1

Modem Card Connector

4

DM1

DIMM Socket 1

5

DM2

DIMM Socket 2

SW1 Settings

1

2

3

4

Password
Enable

ON

X

X

X

Password
Disable

OFF

X

X

X

Bootblock
Enable

X

ON

X

X

Bootblock
Disable

X

OFF

X

X

Adapter 90W

X

X

ON

X

Adapter 120W

X

X

OFF

X
