The heart, Specifications, Luxury series

background image

54

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

March 2008

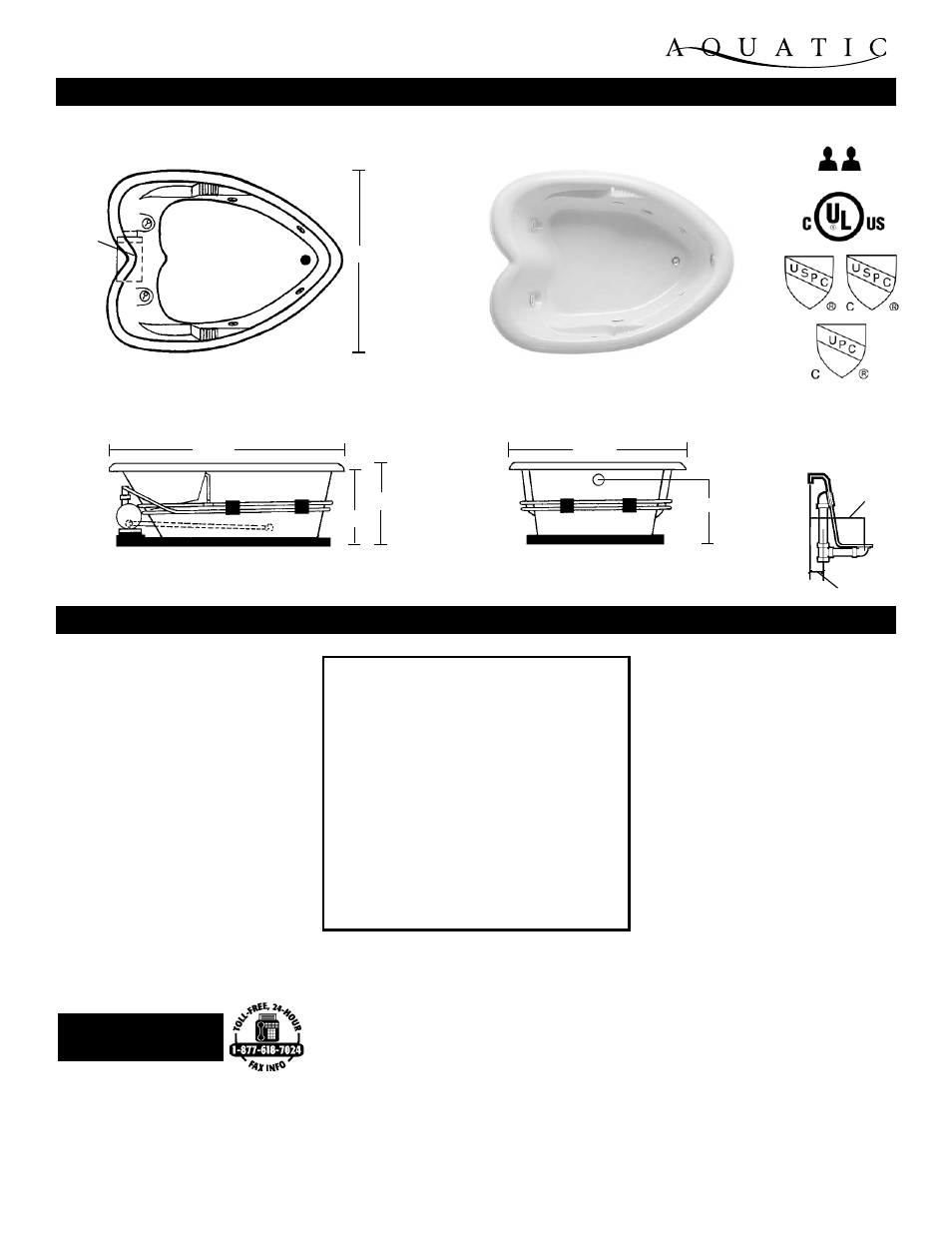

Rough-In Plumbing
Measurements

ThE hEArT

luxury SErIES

Model #

ai6648H

GeneRal SPecIfIcatIonS:

Tub Size

70 1/8” x 51 1/2” x 22 1/4”

178 cm x 131 cm x 57 cm

Bathing Well

44” long

33” wide

20 3/4” interior depth

Shipping Weight

190 lbs. / 86 kg

Tub Weight Filled

927 lbs. / 420 kg

Gallons to Overflow 95 gal. / 360 L
Gallons to Operate 1 bather: 76 gal. / 288 L

2 bathers: 57 gal. / 216 L

electRIcal SPecIfIcatIonS:

Pump

1.75 HP; 12 AMP; 110V

Requirement

15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

Optional Heater

1.5 kW; 12.5 AMP; 110V

Requirement

15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

Chromatherapy LED Lighting

Comfort Pillow - Oval or Rectangle

Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel

1.5 kW Inline Maintenance Heater

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)

2 HP, 3-Speed Run-Dry Pump Upgrade

Remote Pump Location

Hand Held Jet - Chrome or Polished Brass

Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading fixture manufacturers.

oPtIonal equIPMent:

fax-on-Demand

Document # 1041

6 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 Recessed Rotary Massage Jets
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”

Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Integrally Molded Safety Grasps
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors

ul & IaPMo listed, factory tested

limited lifetime Warranty

StanDaRD equIPMent:

70 1/8”

18 1/4”

51 1/2”

19 1/2”

22 1/4”

Pump

51 1/2”

no alternate pump location available.

Two Person Bath

4 1/2”

14”
