Southern Folger 10300P PNEUMATICALLY OPERATED DEADLATCH - Manual (Page 2)

TECHNICAL DATA:
• STANDARD FINISH: US32D
• LOCK BODY: Stainless steel
• FACE PLATE: Stainless steel
• LATCHBOLT: Stainless steel
• DEADLOCK ACTUATOR:
Stainless steel
• ELECTRICAL: 24 VDC,
1.5 watt continuous duty
Swing Chart:
Specify circled swing number when ordering.
• AIR REQUIREMENT:
Consumption: .44 cubic
inches per operation
Supply pressure:
80 - 100 P.S.I. at the door
• LOCK SIZE:
10-5/8"H x 1-1/2"W x 1-3/4"D
• LOCK WEIGHT: 3.2 lbs.
• LATCHBOLT SIZE:
1-5/8"H x 5/8"TK
• LATCHBOLT THROW: 3/4"
• BUILDER’S CYLINDER:
1-5/32" diameter with
standard Yale cam or equal
• UL Listed for use on three-
hour fire doors
• UL Listed as burglary
resistant
• ASTM F 1577 Certified
Impact Test-Grade 1
P N E U M A T I C L O C K S
JAMB MOUNTED FOR
SWINGING DOORS
Minimum and medium security.

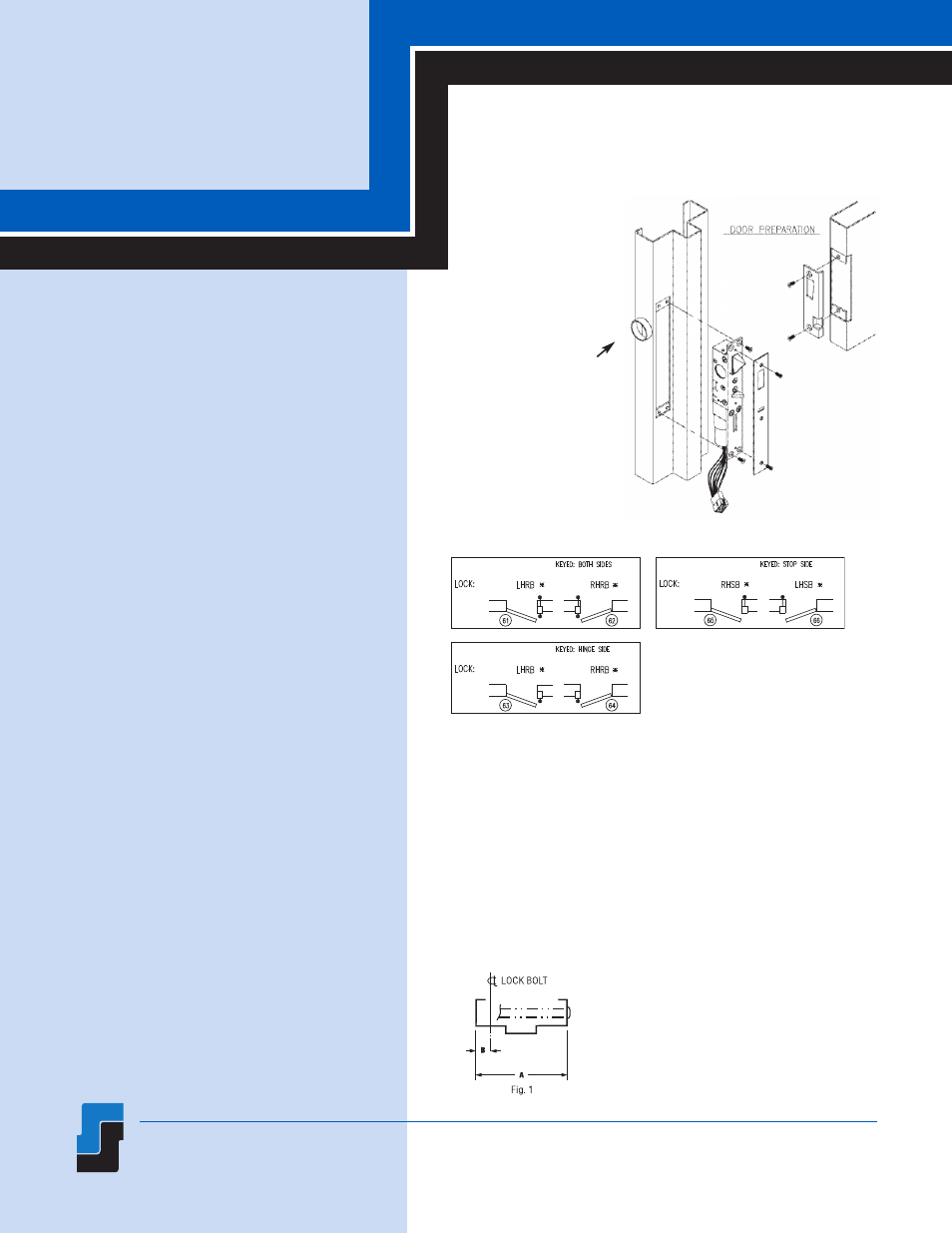

Frame Preparation
NOTE: Drawing for illustration only. Reference template
for specific Information.
1-11/16" O.D. x 1/8"
wall cold drawn tubes
are required.
See Note 1
C6 Printed in USA SS Rev. 04-14
P.O. Box 2021, San Antonio, TX 78297 ■ Ph: 210.533.1231 ■ Fx: 210.533.2211
Web: www.SouthernFolger.com ■ Email: [email protected]
STANDARD FEATURES:
• Deadlock indication switch
• Mechanical latchback
• Strike with security fasteners
• Faceplate with security fasteners
• Plug connector
• Solenoid valve
• Fail secure
• Mounting fasteners
Note #1: 1-11/16" O.D. x 1/8" wall cold drawn
tubes furnished by hollow metal manufacturer.
OPTIONAL FEATURES:
NO LATCHBACK - Latchbolt remains retracted
as long as control switch is activated. Latchbolt
extends when power is removed. Specify “NL.”
LOCAL ELECTRIC KEYSWITCH - Day key
provides local electric operation and may be
disabled from remote control point. Master key
provides both electric and mechanical
operation. Specify “LEK.”
EMERGENCY EXIT RELEASE - From remote
location latchbolt can be retracted and held
retracted until released from remote station.
Requires a second pneumatic tube to the lock
and an emergency reserve air system. Specify
“EER.” UL listing for fire door (GYQS) not
available with this function.
BUILDER’S HARDWARE CYLINDERS -
Specify:
• “10300P-1” keyed one side.
• “10300P-2” keyed both sides.
KEY CYLINDER EXTENDER -
Required whenever lock is keyed on stop side.
Overall frame depth 4" minimum. Specify “KCE.”
Full body rim cylinder required on stop side.
Full body mortise cylinder required on hinge side.
PROVIDE: (See Fig. 1)
1. Dimension “A” (overall frame width)
2. Dimension “B” (edge of frame to centerline
of lockbolt)
10300P PNEUMATICALLY
OPERATED DEADLATCH
