INTRODUCTION
Features
• Waterproof (IP68) (meets or exceeds N4)
• Vandal Resistant Enclosure
• Backlit Keypad
• Multi-color LED status display
• Integrated Alarm Buzzer & Output
• One Programmable Relay Output
• Stand Alone or Pass-Through Operation
• 2000 Users (Card/PIN/Card+PIN)
• 10 Panic Card/PIN Codes
• Low power consumption (50mA)
• Anti-Tamper Alarm
• Latch Mode to hold door or gate open
The LiftMaster KPR2000 is a single entry multi-function Access Controller with integrated keypad and card reader. It is designed and manufactured to
perform in a wide range of indoor, outdoor, and harsh environments.
The KPR2000 supports up to 2000 users in multiple access configurations (Card Only, Card or PIN, or Card + PIN). The built in 125 KHz card reader
supports HID 26 bit Wiegand and 30 bit Sentex Wiegand proximity card formats. The KPR2000 offers advanced programming features like; block
enrollment, advanced relay programming, and Panic PINs/Cards (which open the entry and set off the alarm).

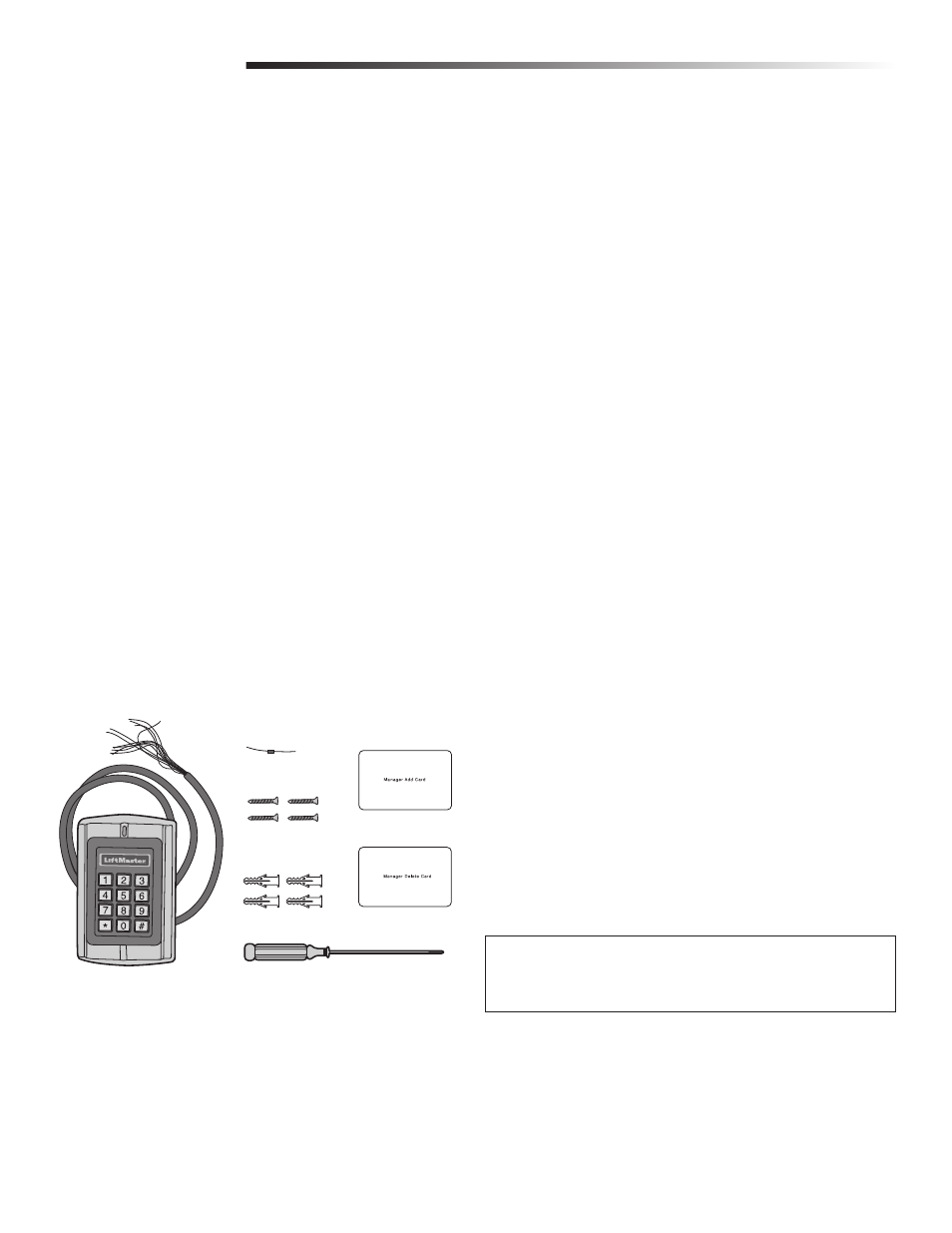

Carton Inventory
KPR2000
Keypad/Proximity Reader/Controller
Diode IN4007 (For Relay
circuit protection)
Self Tapping Screws #8 x 1"
Wall Anchors #6 x 1 1/8"
Manager Add Card
Manager Delete Card
Security Screwdriver
(T-10 Security Torx Driver)
NOT SHOWN: User's Manual
Accessories
• Model PEDS44 Low Profile Access Pedestal
• Model PEDAD 4 x 4 Pedestal Adaptor
• Model PS12V2A 12 Vdc, 2 Amp Power Supply
One Year Limited Warranty
The Chamberlain Group, Inc. warrants to the first consumer purchaser of
this product that it is free from defect in materials and/or workmanship
for a period of 1 year from the date of purchase.
Specifi cations
User Capacity . . . . . . . . . . .2000 Cards/PINS plus 10 Panic Cards/PINS
Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 ~ 24 Vdc
Idle Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ~ 50mA
Active Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ~ 80mA
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Key (3x4)
Proximity Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . HID 26 bit
and 30 bit (Sentex)
Radio Technology . . . . . . 125 KHz Industry Standard Proximity Card
Read Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 inch - 2.5 inches
Wiring Connections . . . . . . . . . . . . . . Relay Output, REX, DOTL, Alarm,
Wiegand (in/out)
Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . One (NO, NC, Common)
Adjustable Relay Output Time . . 1 ~ 99 Seconds (5 seconds default)
Adjustable Alarm Output Time . . . . . 0 ~ 3 Minutes (1 minute default)
Lock Output Load . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Amp Maximum
Alarm Output Load . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Amp Maximum
Wiegand Interface . . . HID Wiegand 26 and 30 bit Format Input & Output
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . Meets or exceeds IP68
Operating Temperature . . . . . . . . . . . .-20°C ~ 60°C, or -4°F ~ 140°F
Operating Humidity . . . . . . . . . . . . . . . 10% ~ 90% Non-Condensing
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Zinc-Alloy Enclosure
Surface Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Powder Coat
Dimensions . . . . . . . . . . . . . . . . . . . L:128mm x W:82mm x D:28mm
Unit Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pound
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.4 Pounds
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
