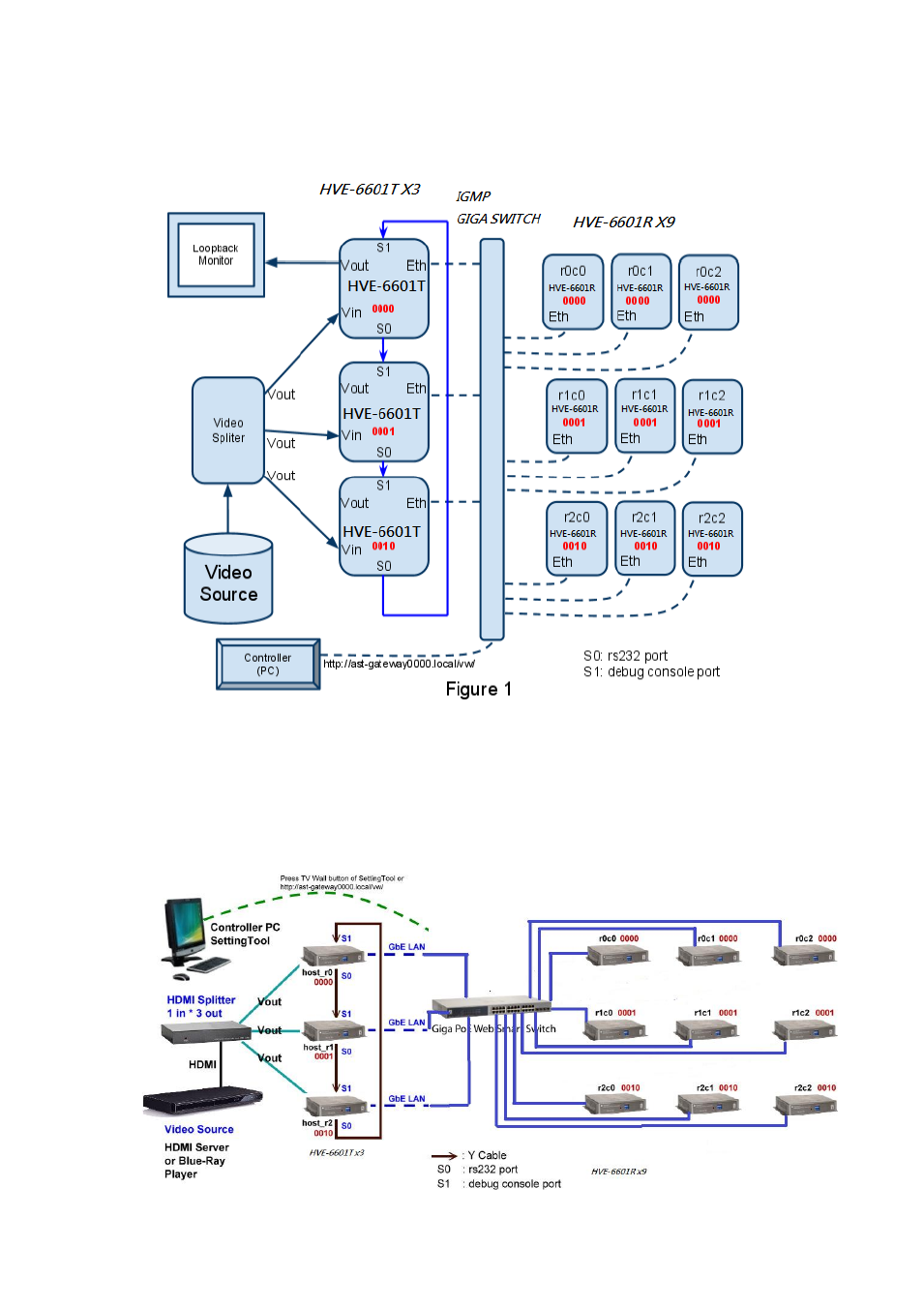

Following is the system setup
figure for 3x3 video wall.
Note:
● If you use single Ethernet switch, the switch must support and enable IGMP
snooping. And separate each row to different multicast group by using different
4-bits DIP switch number. Please visit Figure 2.
Figure 2
