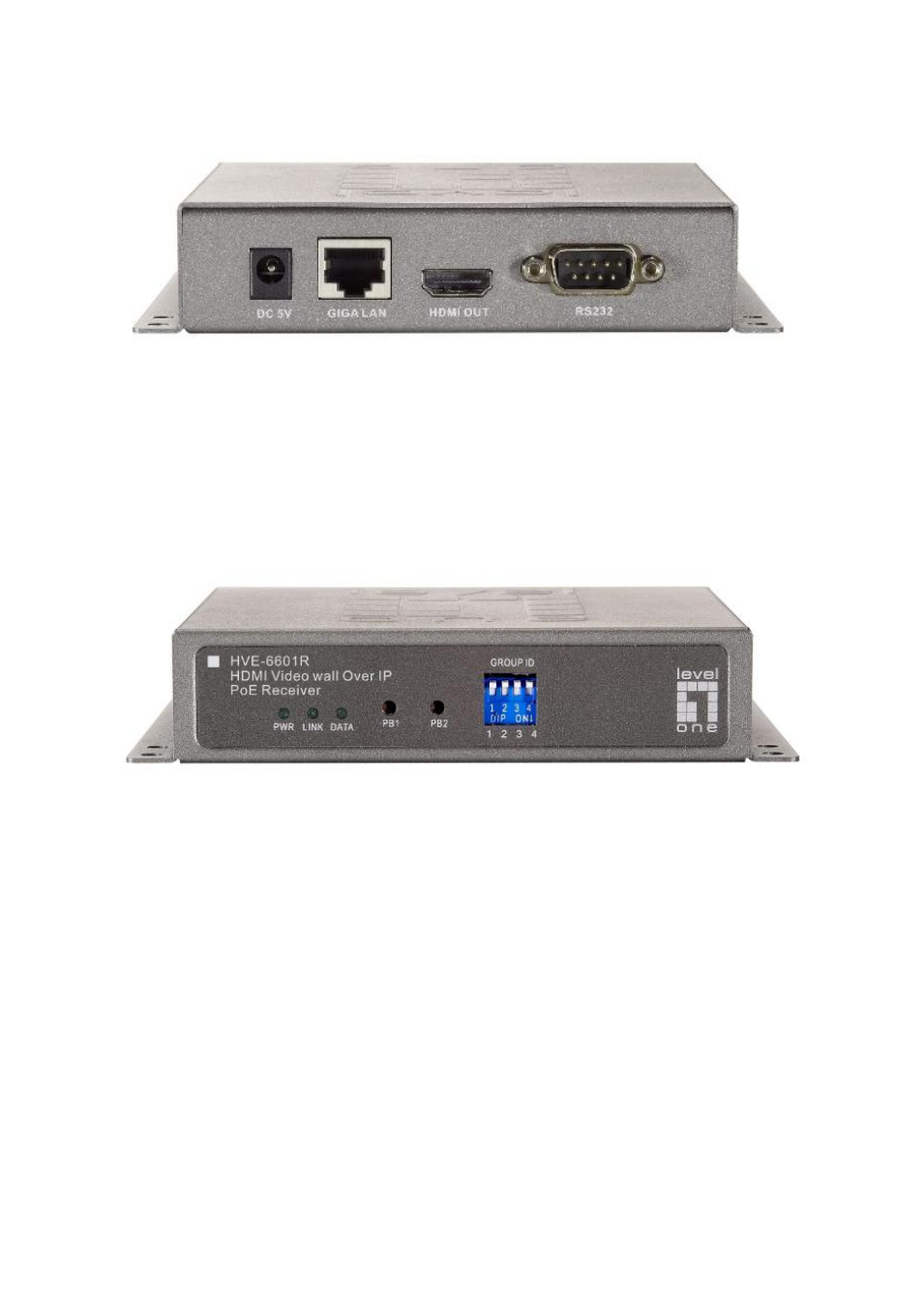

HVE-6601 Receiver (Video Wall)
1. DC5V: Connect to the supplied AC adapter and plug into an electrical outlet.
2. GIGA LAN: Connect directly to a Transmitter or to a GIGA(1000Mbps) Ethernet
Switch using CAT6 cable.
3. HDMI OUT: Connect to an HDMI display device with an HDMI M-M cable. Use
an HDMI --> DVI adapter if the display is DVI.
4. RS232: Connect to the RS232 port of the device you want to configure. In
Video Wall system solutions it will not be used.
1. POWER LED Blinking: power on and the unit is booting up.
2. POWER LED On: power on and the unit is active.
3. LINK LED Off: LAN is not connected.
4. LINK LED On: LAN is connected.
5. DATA LED Blinking: The Receiver is connecting with Transmitter, or the HDMI
source is removed.
6. DATA LED On: All the connections are working.
7. PB 1 : Change OSD shows control/Column position; Firmware Upgrade Mode
and Reset to default* using this button. Please to see the Push Button
Descriptions.
8. PB 2 : change between Video Mode / Graphic Mode ; Anti-Dither ; Update
EDID* using this button. Please to see the Push Button Descriptions.
9. GROUP ID: The d
efault GROUP ID is “0000”
