49
For LPD printing application in Mac OS X 10.4.x

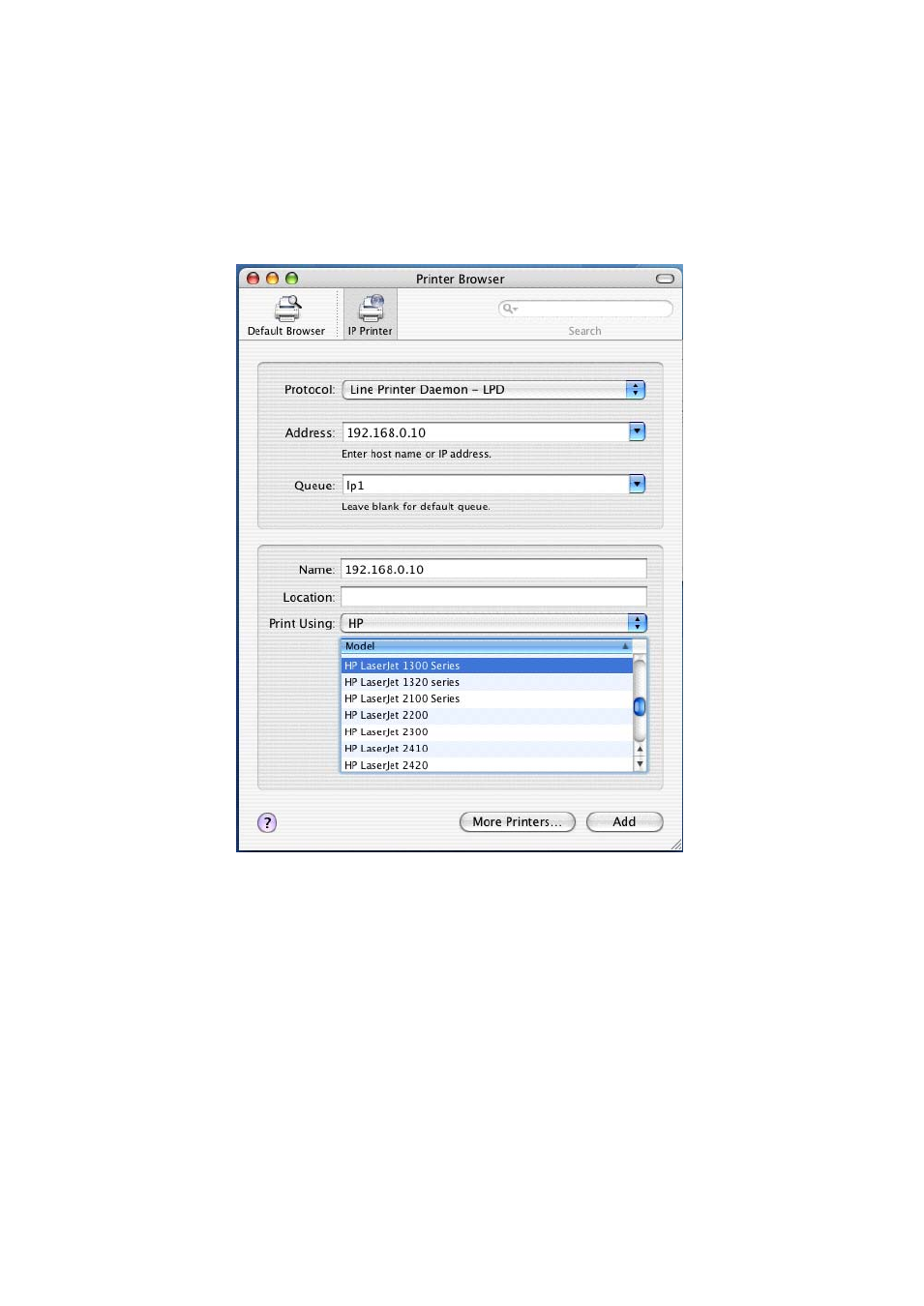

1. From the Printer Setup Utility, click Add.
2. Click IP Printer and select Line Printer Daemon – LPD.
3. Input the IP address of print server and the Queue name.
For example: If printer connects to the port-1 of print server, the queue name is lp1.
4. Choose a proper printer model from the Print Using. Then click Add.
SNMP Setup
TCP/IP networks use a standard management protocol called Simple Network
Management Protocol (SNMP). SNMP is widely used in the industry as a solution for remote
network management and monitoring of networking devices. SNMP actually includes a
protocol, a database structure specification, and a set of database objects. The database
objects are contained in a standard database called Management Information Base (MIB)
that is stored on the networking device called SNMP agent. The print server's SNMP
implementation runs in a TCP/IP environment.
A host on the network running Network Management System (NMS) software can
access the print server device by reading and writing the MIB objects stored in the device.
