Wds only mode – LevelOne WAP-6150 User Manual
Page 24
24
default setting is “A/N mixed”.
10. Authentication & Encryption: You may select one of the following
authentications to secure your wireless network: Open, Shared, Auto, WPA-PSK,
WPA, WPA2-PSK, WPA2, WPA-PSK/WPA2-PSK,WPA /WPA2, or 802.1x.
11. Remote AP MAC 1 ~ Remote AP MAC 4: If you do not enable the Lazy mode,
you have to enter the wireless MAC address for each WDS peer one by one.
Afterwards,
click on “Save” to store your settings or click “Undo” to give up the
changes.
3.1.3.1.3

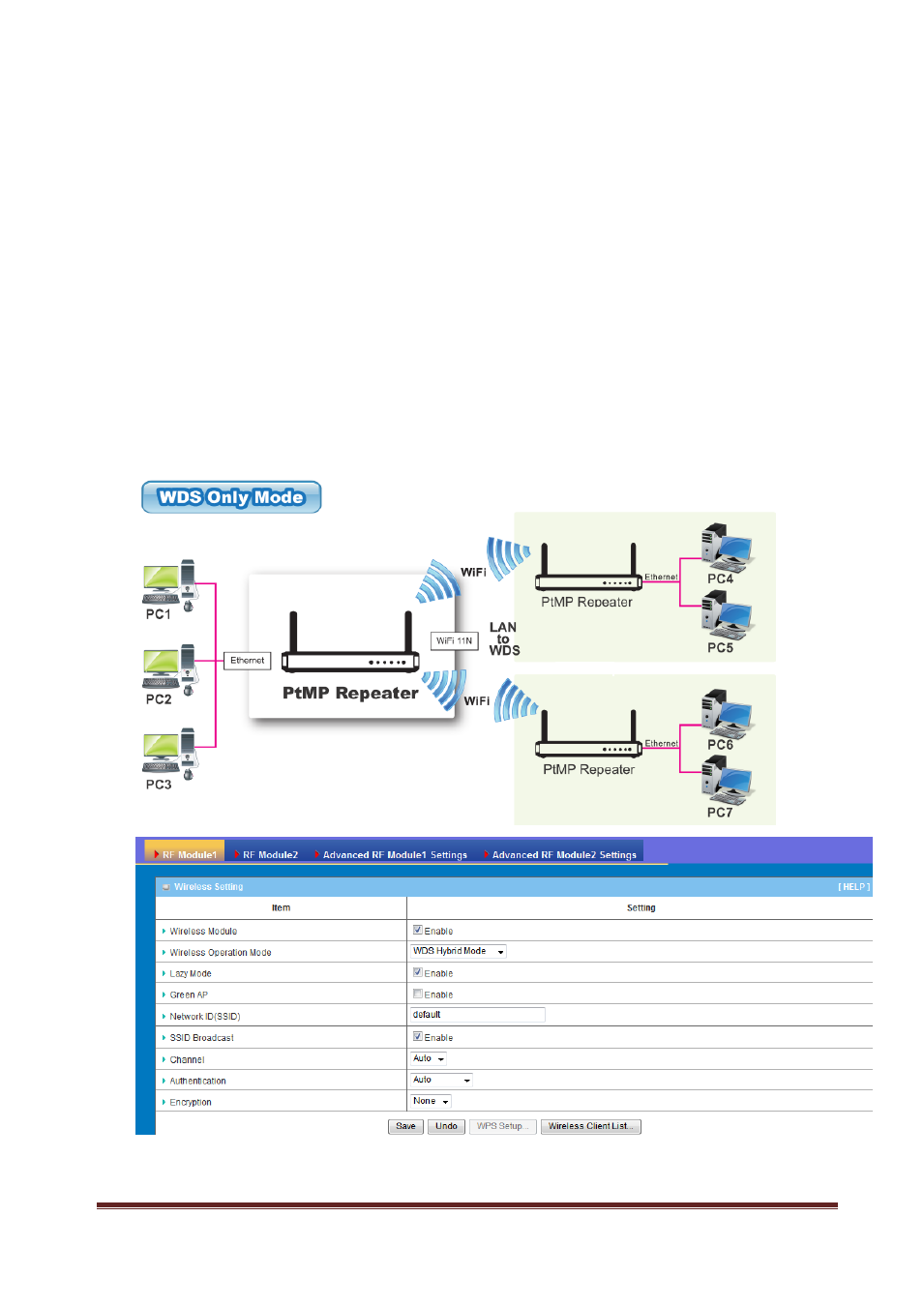

WDS Only Mode
WDS (Wireless Distributed System) function let this access point acts as a wireless
LAN access point and repeater at the same time. Users can use this feature to build
up a large wireless network in a large space like airports, hotels and schools …etc.
1. Lazy Mode: This device support the Lazy Mode to automatically learn the MAC
address of WDS peers, you don
’t have to input other peer AP's MAC address.
