Hardware Description
This section mainly describes the hardware of the FSW-1671 Web Smart Switch and
gives a physical and functional overview on the certain switch
Physical Dimensions
The FSW-1671 Smart Switch physical dimensions is
440mm x 220mm x 44mm (WxDxH)

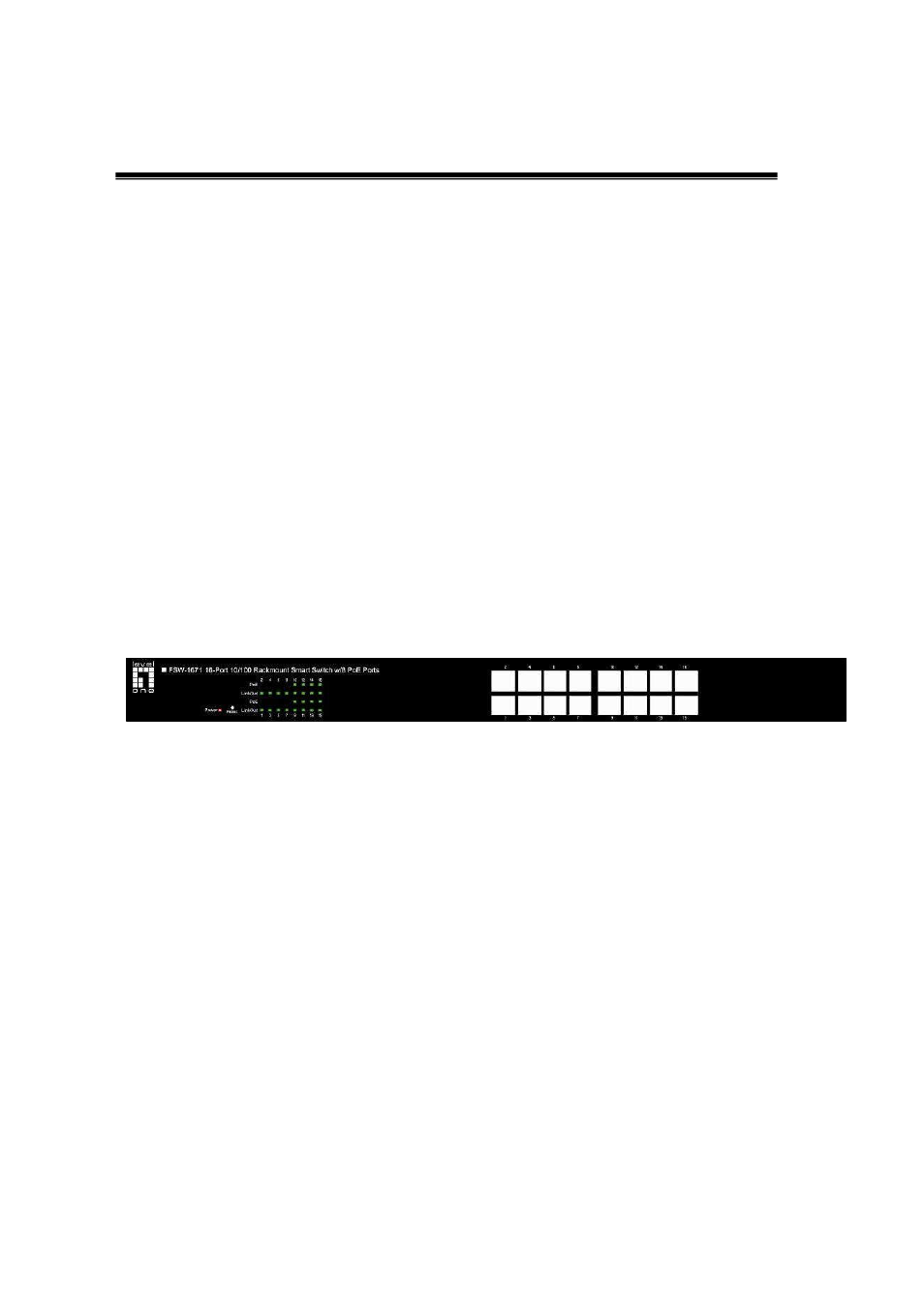

Front Panel
The front panel of the FSW-1671 Web Smart Switch consists of 16 x 10/100Base-TX
RJ-45 ports (Auto MDI/MDIX). The LED Indicators are also located on the front panel
of the switch.
RJ-45 Ports (Auto MDI/MDIX): 16 x 10/100 N-way auto-sensing for 10Base-T or
100Base-TX connections. In general, MDI means connecting to another Hub
or Switch while MDIX means connecting to a workstation or PC. Therefore, Auto
MDI/MDIX would allow connecting to another Switch or workstation without
changing non-crossover or crossover cabling.
LED Indicators
The LED Indicators display real-time information of systematic operation status. The
following table provides descriptions of LED status and their meaning .
