Note:

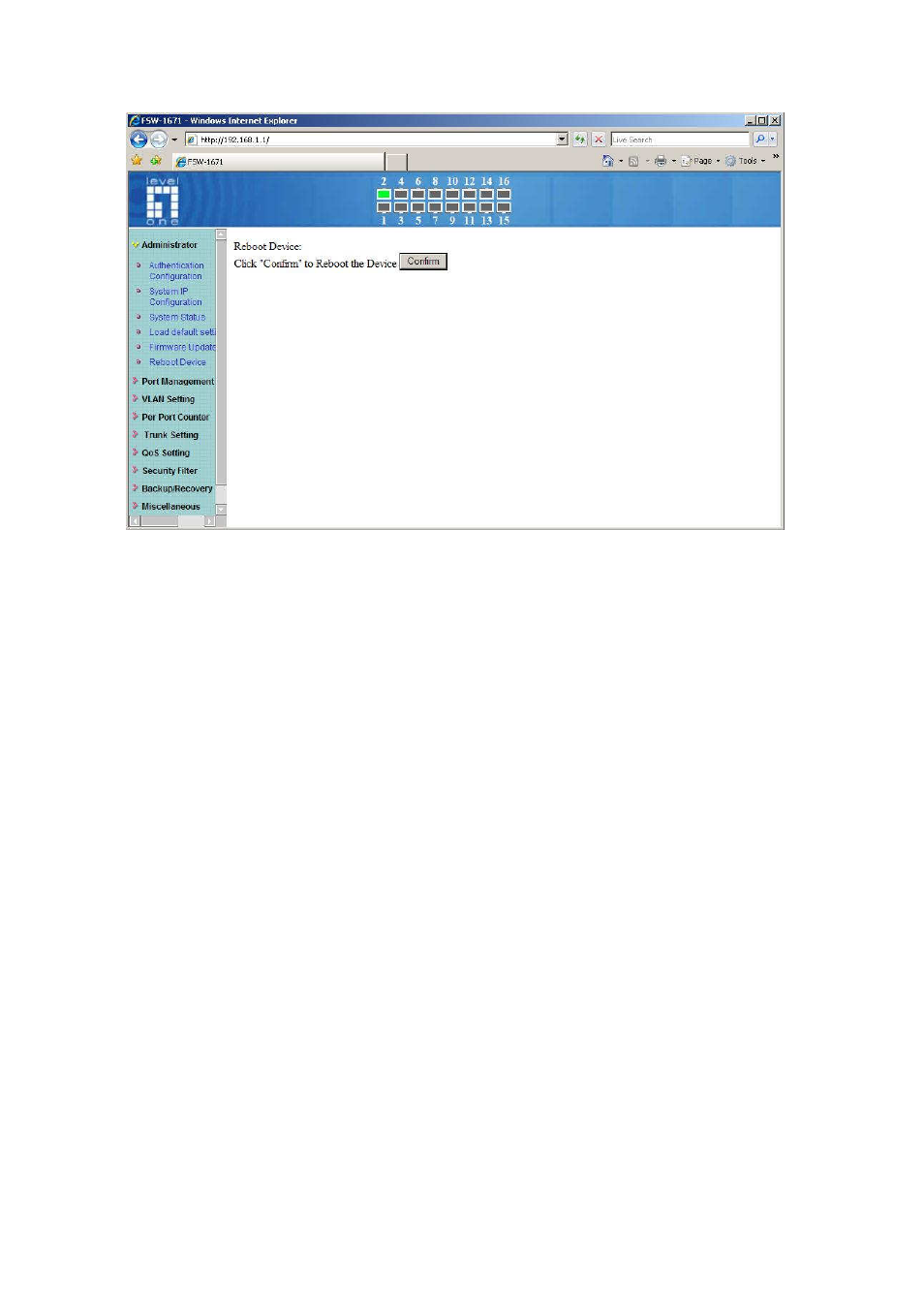

The reboot is for software base instead of hardware base.
Port Management
Port Management includes Port Configuration, Port Mirroring , Bandwidth Control,
Broadcast Storm Control and PoE
Port configuration
In Port Configuration, you can set and view the operation mode for each port.
Auto-Negotiation: Enable and Disable. Being set as ‘Enable’, the Speed, Duplex
mode, Pause, Backpressure, TX Capability and Address Learning are
negotiated automatically. When you set it as ‘Disable’, you have to assign those
items manually.
Speed: When the Auto-Negotiation column is set as Disable, users have to set the
connection speed to the ports ticked.
Duplex: When the Auto-Negotiation column is set as Disable, users have to set the
connection mode in Half/Full to the ports ticked.
Pause: Flow Control for connection at speed of 10/100Mbps in Full-duplex mode.
