Page 68: Example qos plan

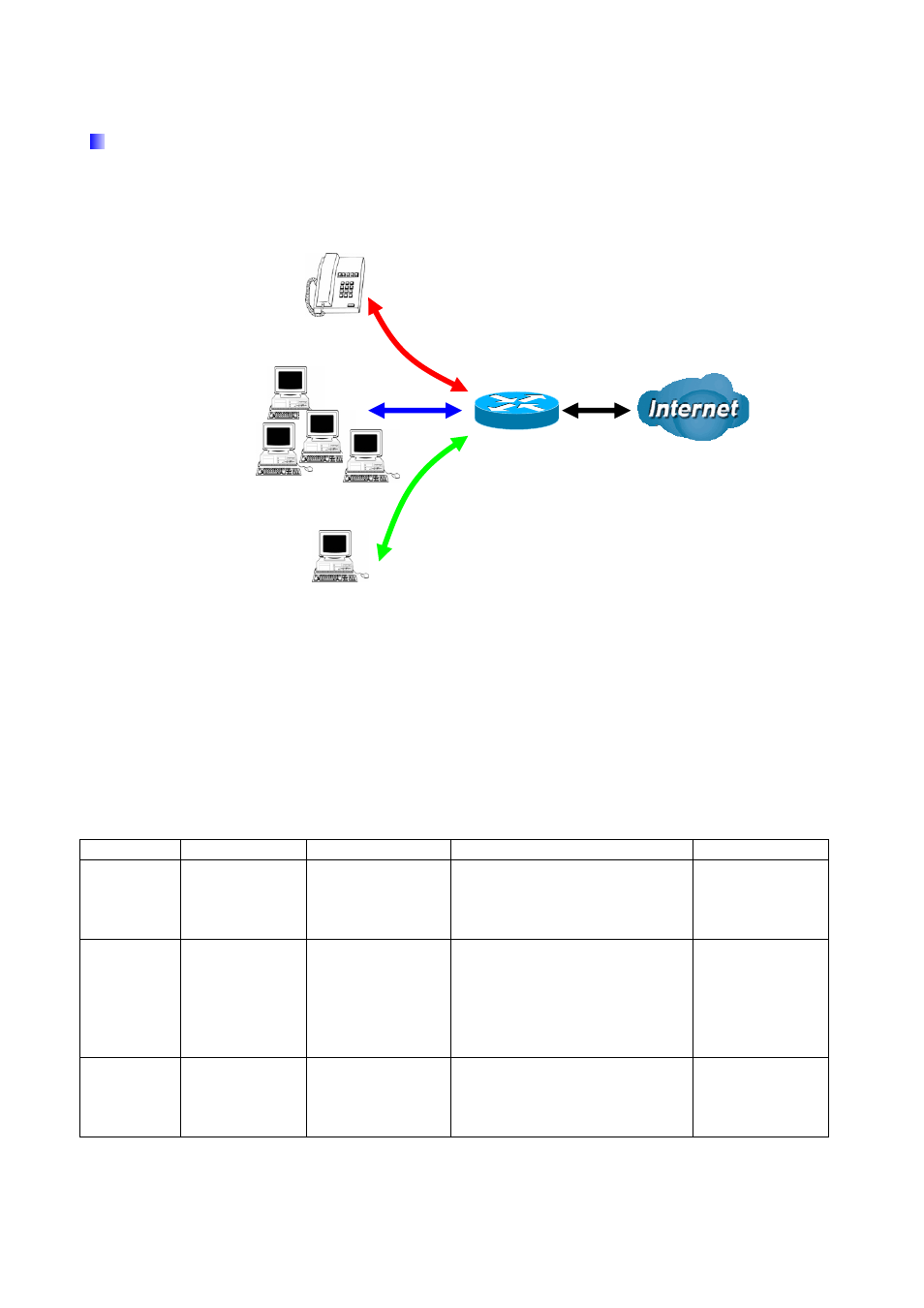

QoS example for your Network

Connection Diagram

HTTP web
browsing users

Restricted PC

Normal PCs

VoIP

ADSL Subscription Rate

Upstream: 256 kbps
Downstream: 2048 Mbps

Example QOS Plan

Application IP or Ports

Control Flow

Data Rate

Time Schedule

VoIP User

192.168.0.1

Outgoing

Minimal 20% with high priority
for non-used bandwidth with
SDCP marking Class 1 Gold
Service

Always

FTP Sever 192.168.0.100 Incoming and

Going

outgoing :minimal 30%. Data
rate.
incoming :minimal 30%. Data
rate.
Both with low priority for
non-used bandwidth.

Only Working
Hours 9:00 to
17:00 Monday
to Friday.

HTTP web
browsing
users

80 Incoming

and

Going

outgoing : limited 20%. Data
rate.
incoming : limited 30%. Data
rate.

Always
