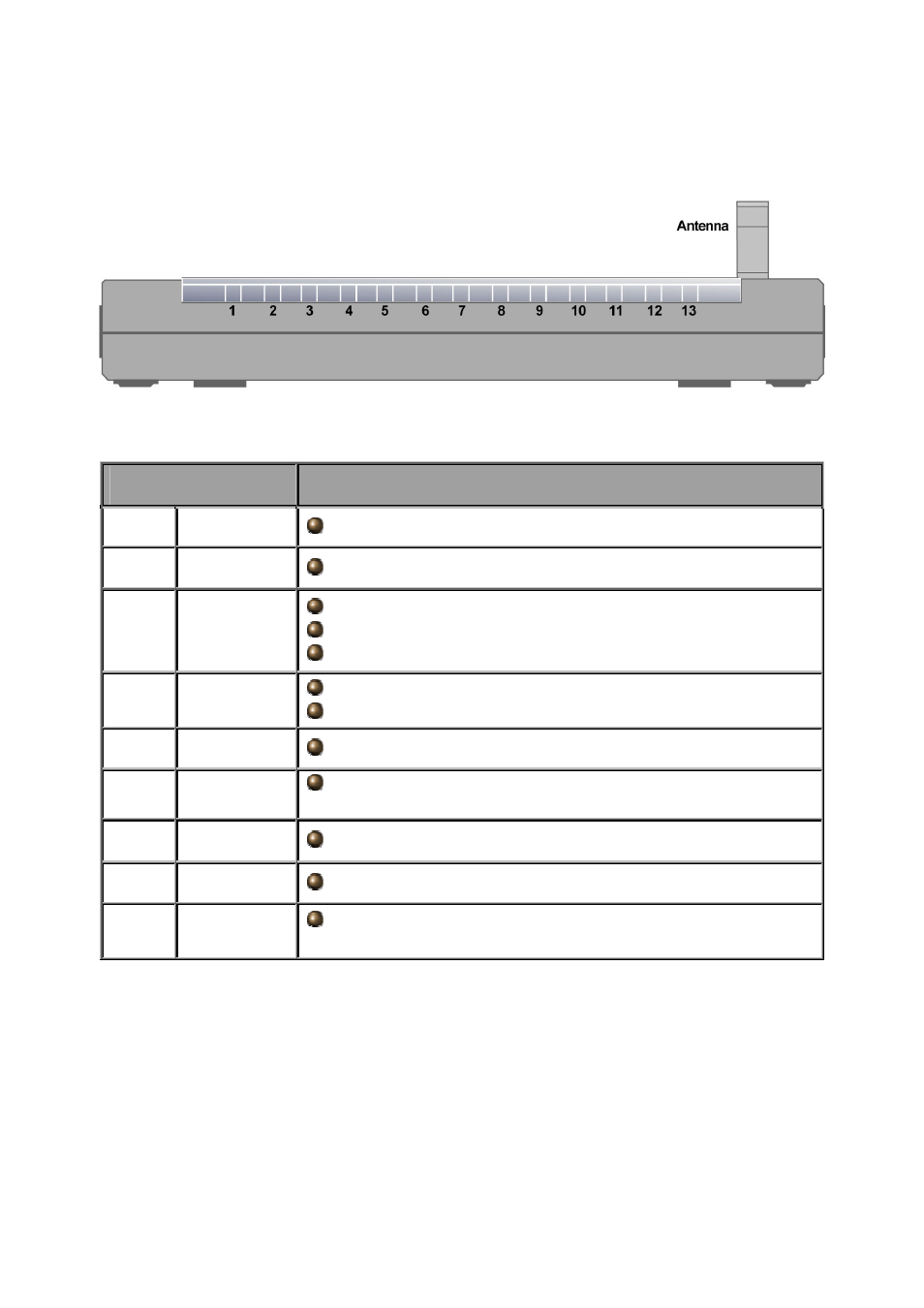

2.3 The Front LEDs

LED

Description

1 PWR：

Lights when the power is ON.

2 SYS：

Lights when the system is ready.

3-6

LAN Port
1-4：

Steady glow when connected to an Ethernet device.

Glows green for 100Mbps; Orange for 10Mbps.

Blinking light when data is Transmitted / Received.

7 WLAN：

Lit green when the wireless connection is established.

Flashes when sending/receiving data.

8-9 Phone：

Lit green when the phone is off-hook.

10 LINE：

Lit when the inbound and outbound calls transmitted

through PSTN.

11 VoIP：

Lit when SIP registration is OK.

12 PPP：

Steady glow when there is a PPPoA / PPPoE connection.

13 ADSL：

Lights when successfully connected to an ADSL DSLAM

(linesync).
