6 American Dryer Corporation 450569 - 5

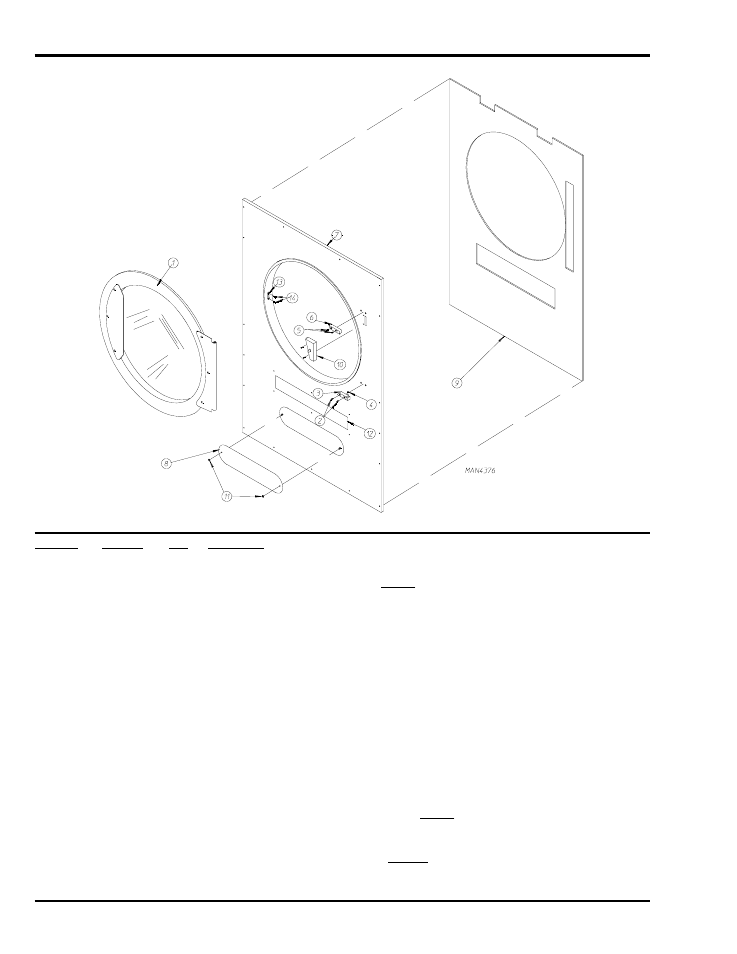

Main Door / Front Panel Assembly
Illus. No. Part No. Qty. Description
1 –––––– 1 Main Door
(refer to Main Door Assembly on page 7)
2 150443 2 Socket Cap Screw
3 881441 1 Bottom Hinge Block (white)
882283 1 Bottom Hinge Block (wrinkle coral blue)
4 153031 1 Nylon Washer
5 150443 2 Socket Cap Screw
6 881440 1 Top Hinge Block (white)
882284 1 Top Hinge Block (wrinkle coral blue)
7 801614 1 Magnet Door Front Panel
882236 1 Front Panel (white)
(includes illus. nos. 7, 13, and 14)
882345 1 Front Panel Assembly (wrinkle coral blue)
(includes illus. nos. 7, 13, and 14)
8 390227 1 Emblem
9 116326 1 Front Panel Insulation
10 –––––– 1 Main Door Switch
(refer to Main Door Switch Assembly on page 8)
11 182507 2 1/4-20 High Crown Acorn Nut
12 –––––– 1 Lint Screen
(refer to Lint Drawer Assembly on page 11)
13 170330 1 Friction Door Latch
14 154215 2 5/32 x 1/4” Rivet
