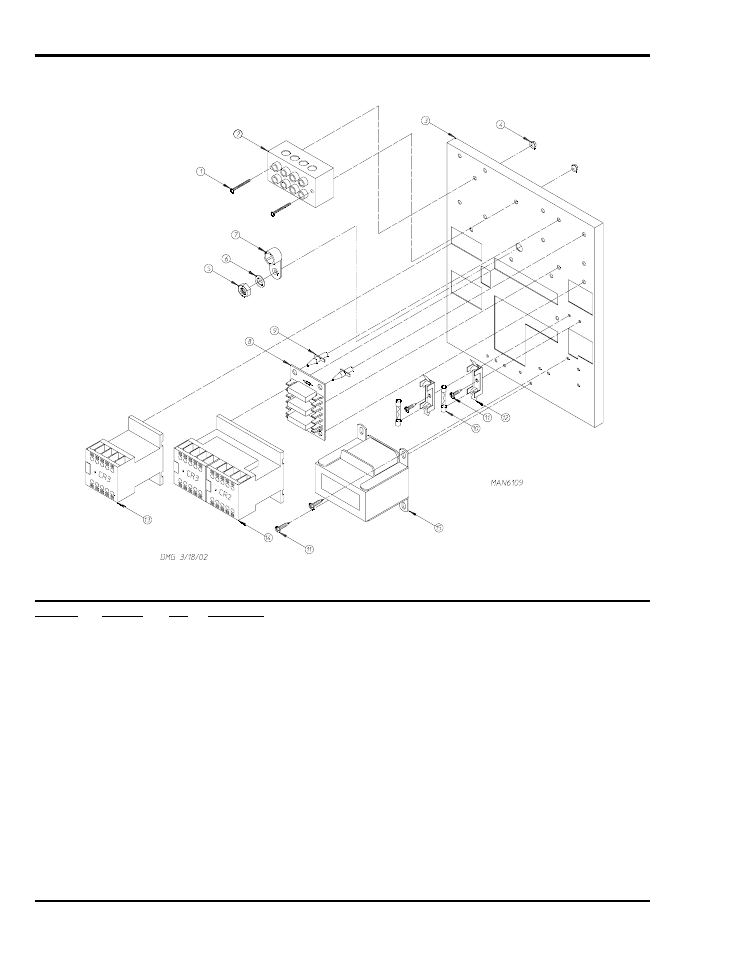

Reversing Relay Panel Assembly
For Models Mfd. prior to February 10, 2006
Illus. No. Part No. Qty. Description
1 150008 2 #6-32 x 1-1/4” Phillips Round Head Machine Screw
2 120701 1 4-Position Terminal Block
3 859356 1 208 Volt Reversing Relay Panel Assembly Complete
(includes illus. nos. 1 through 15)
323743 1 Reversing Relay Panel ONLY
4 151000 1 #6-32 Pal Nut
5 152004 1 5/16-18 Hex Nut
6 153002 1 5/16” Lock Washer
7 121012 1 Ground Lug
8 137060 1 Arc Suppressor Board
9 137013 4 Nylon Standoff
10 136057 2 1/2-Amp (Slo-Blo) Fuse
11 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
12 136008 2 Fuse Holder ONLY
13 132455 1 1 hp 3ø Contactor
14 132497 1 Reversing Contactor
15 132070 1 208-240 Volt Transformer
881763 1 Transformer Terminal Kit
