· After about 7 years thermostats
are not as accurate. Replacing
them with a new anticipated
model will reduce the
temperature swings that are
common with older thermostats.
·Thermostats should be mounted
on an inside wall for best
performance.
· Mounting a thermostat above a
fan wall heater will not hinder
the performance of a high
quality thermostat.
· Keep lamps or any other forms
of heat (like in-wall hot water
pipes or the sun) away from the
thermostat location for the most
accurate control of a zone or space.

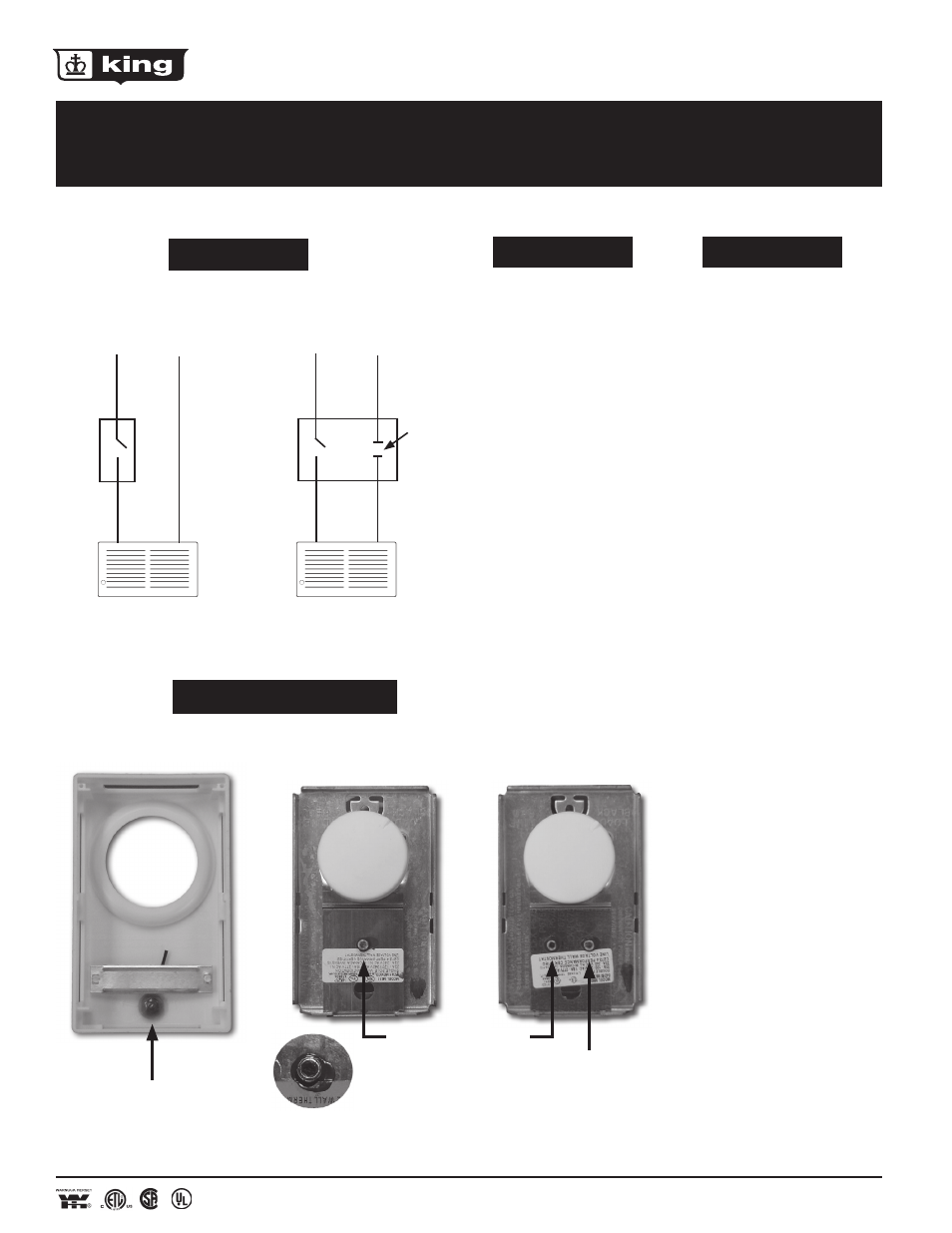

WIRING DIAGRAM
This line voltage device should
be installed and serviced by
a qualified electrician. The
thermostat has been designed
to mount to a standard 2"X 4"
electrical outlet box. Leveling of
the thermostat is not required.
Mounting screws are provided.
Mount the thermostat about five
feet above the floor in an area
with good air circulation. Avoid
mounting the thermostat where it
will be affected by drafts, air from
ducts and radiant heat sources
such as appliances, the sun,
lamps or hot water pipes.
INSTALLATION NOTES
good – line voltage
EURO STYLE SINGLE OR DOUBLE POLE LINE VOLTAGE (CONTINUED)
CALIBRATION ADJUSTMENTS
HE-1 & K601
Single Pole
HE-2 & K602
Double Pole
TO CHANGE CALIBRATION:
• 3/32" hex allen wrench required
• CLOCKWISE to DECREASE
maximum temperature setting
of dial
• COUNTERCLOCKWISE to
INCREASE maximum temperature
setting of dial
• To prevent unwanted movement
of calibration screw once set,
place a drop of fingernail polish
or glue on screw.
Note: Overtightening of mounting
screws can twist base and alter
calibration. To solve this loosen
mounting screws.
Thermometer Cover
Turn nut to adjust thermometer
ON / OFF Switch
Adjust calibration here
(3/32" hex allen wrench required)
K601 calibration screw
THERMOST
AT
RED
L1 L2
BLACK
THERMOST
AT
RED
L1 L2
BLACK
RED
BLACK
ON / OFF
SWITCH
HEATER
UP TO 5280 WATTS
HEATER
UP TO 5280 WATTS
K601 K602
