Navigation System 19
Getting Started

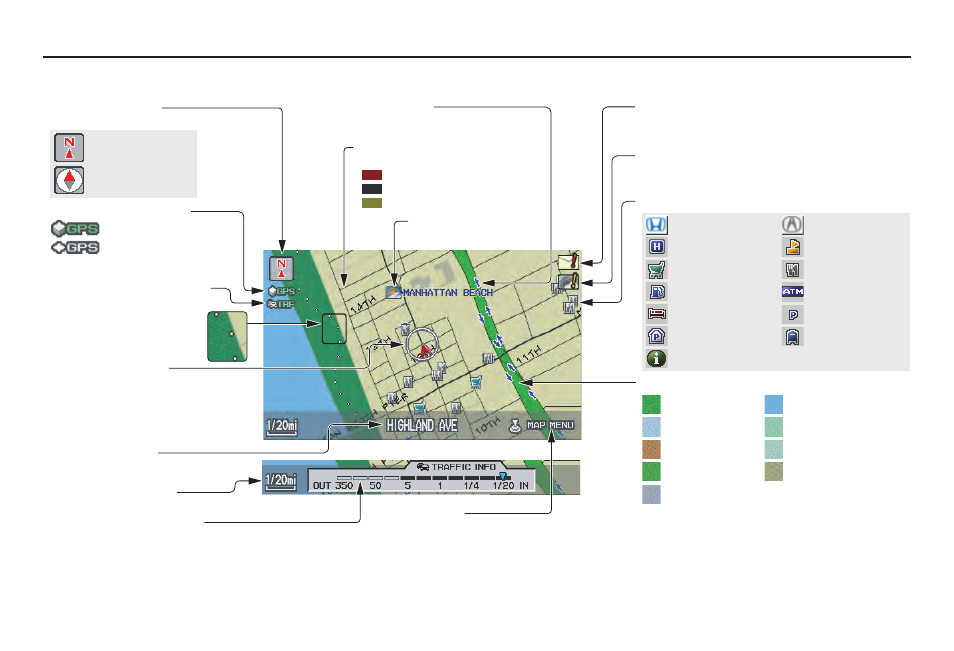

Map Screen Legend
Acura Dealer
School
Restaurant
ATM
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information
Vehicle Position
(see page 70)
(Use voice command
“Display the current location,” or
use the Interface Dial to show
current location.)
Landmark Icon - Generic (see page 63)
Current Map Scale
(see page 61)
Map Features
NOTE:
If you move the Interface Dial over an
area (map features shown above), the
name is displayed on the screen.
: Park
: Hospital
: Shopping Mall
: Golf Course
: Water Area
: Cemetery
: University
: Indian Reservation
: Airport/Stadium/Business
Current Street
(see page 6)
NOTE:
See
Map Legend on the INFO screen ( Other ) for further explanation.
GPS Signal Strength
: Best Reception
: Good Reception
Missing: Poor/No Reception
“North Up”
“Heading Up”
Map Orientation
(see page 62)
Map Menu
(see page 57)
(Push in on the Interface Dial to view.)
Map Scale Adjustment
(Mile or km per half-inch appears only when you
zoom in or out by rotating the Interface Dial knob.)
Traffic Status Indicator
(see page 22)
“Breadcrumbs”
(see Off-road Tracking
on page 69)
Weather Icon
(see page 64)
One-Way Traffic Icon
(1/20 mile scale only) (see page 63) Message Icon (see page 78)
Indicates that you have a message. View
messages by pushing in on the Interface Dial.
Warning Icon
Indicates that there are weather warnings.
To check the warning list, see page 82.
Streets
(see Map Overview on page 6)
Interstates or Freeways
Verified Streets
Unverified Streets
