2.0 Technical Information
2.1 Specifications

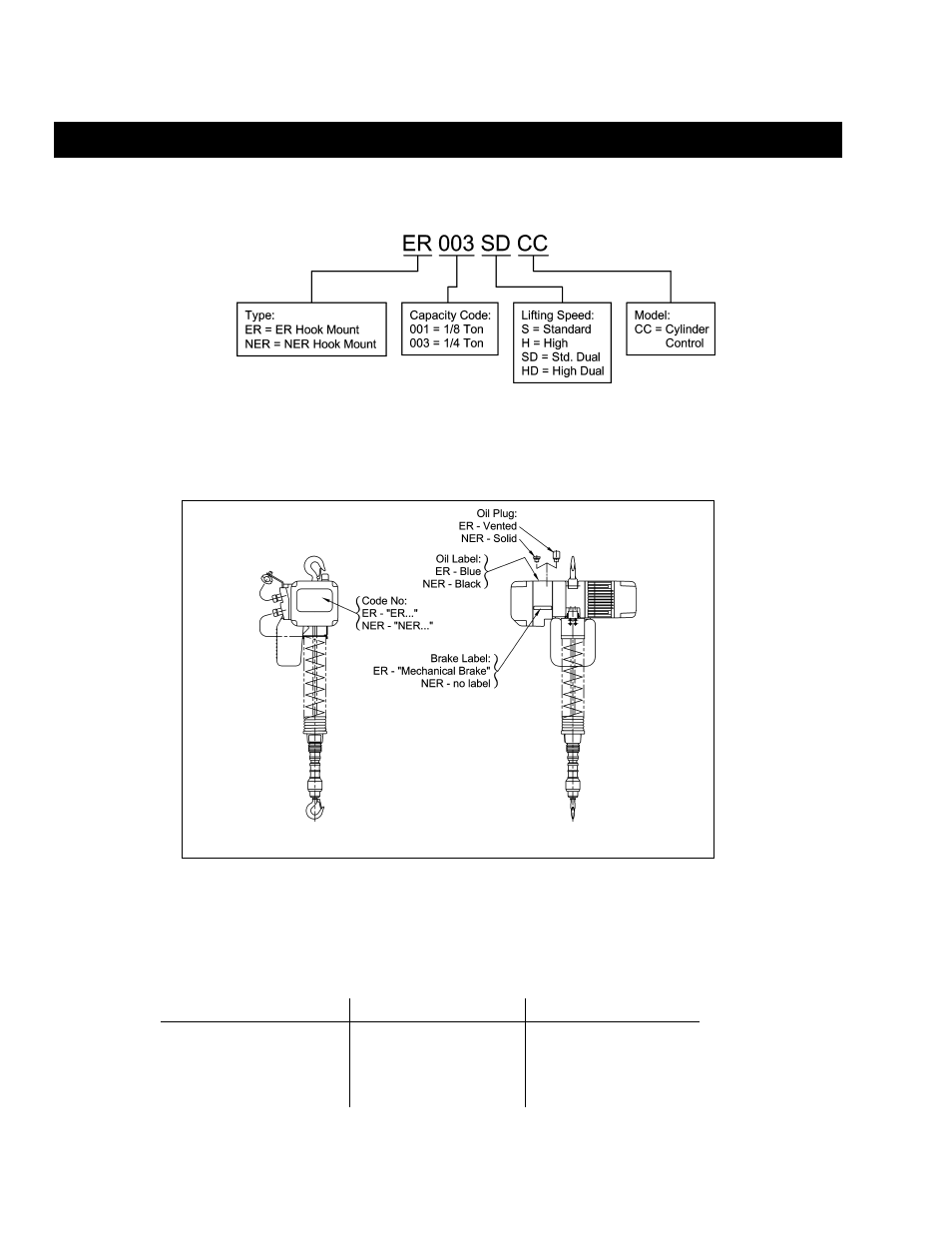

2.1.1 Product
Code
2.1.2
ER and NER Models - Harrington ER series hoist are available in two versions, the ER and NER.
These two versions are equipped with different options as standard equipment. The NER has a friction
clutch mechanism that provides over winding protection. The ER has a mechanical load brake/friction
clutch combination and an electronic count/hour meter in the control circuit. Refer to Figure 2-1 for the
visual differences between the ER and NER.
Figure 2-1 Identifying ER verses NER Models
2.1.3
Operating Conditions and Environment
Temperature range: -4° to +104°F (-20° to +40°C)
Humidity: 85% or less
Enclosure Rating: Hoist Meets IP 55, Cylinder Meets IP44
Supply Voltage: Standard 208-230/460V-3-60, Optional 575V-3-60, Special Voltages Available
Single Speed
Dual Speed
ASME Duty Classification:
H4
H4
Intermittent Duty Rating:
60% ED
360 starts per hour
40/20% ED
120/240 starts per hour
Short Time Duty Rating:
60 min.
30/10 min.
