CAUTION

Improper operation of a hoist can create a potentially hazardous situation which, if not

avoided, could result in minor or moderate injury, or property damage. To avoid such a

potentially hazardous situation THE OPERATOR SHALL:

• Maintain a firm footing or be otherwise secured when operating

the hoist.

• Check brake function by tensioning the hoist prior to each lift

operation.

• Use hook latches. Latches are to retain slings, chains, etc. under

slack conditions only.

• Make sure the hook latches are closed and not supporting any

parts of the load.

• Make sure the load is free to move and will clear all obstructions.
• Avoid swinging the load or hook.
• Make sure hook travel is in the same direction as shown on

controls.

Inspect the hoist regularly, replace damaged or worn parts, and

keep appropriate records of maintenance.

• Use the hoist manufacturer’s recommended parts when repairing

the unit.

• Lubricate load chain per hoist manufacturer’s recommendations.
NOT allow your attention to be diverted from operating the hoist.
NOT allow the hoist to be subjected to sharp contact with other

hoists, structures, or objects through misuse.

NOT adjust or repair the hoist unless qualified to
perform such adjustments or repairs.

2.0 Technical Information

2.1 Specifications

2.2.1 Product Code:

¼ Ton capacity = LX003
½ Ton capacity = LX005

2.2.2 Hoist Models: LX1A and LX1B as identified on

the nameplate. LX1B is the latest LX version. It
has improved Free-Wheel function and bolted
LX003 bottom hook yoke.

2.2.3 Operating Conditions and Environment

Temperature Range: -40° to +60°C (-40° to
+140°F)
Humidity: 100% or less, this is not underwater
device.
Material: No special materials such as spark
resistant and asbestos.




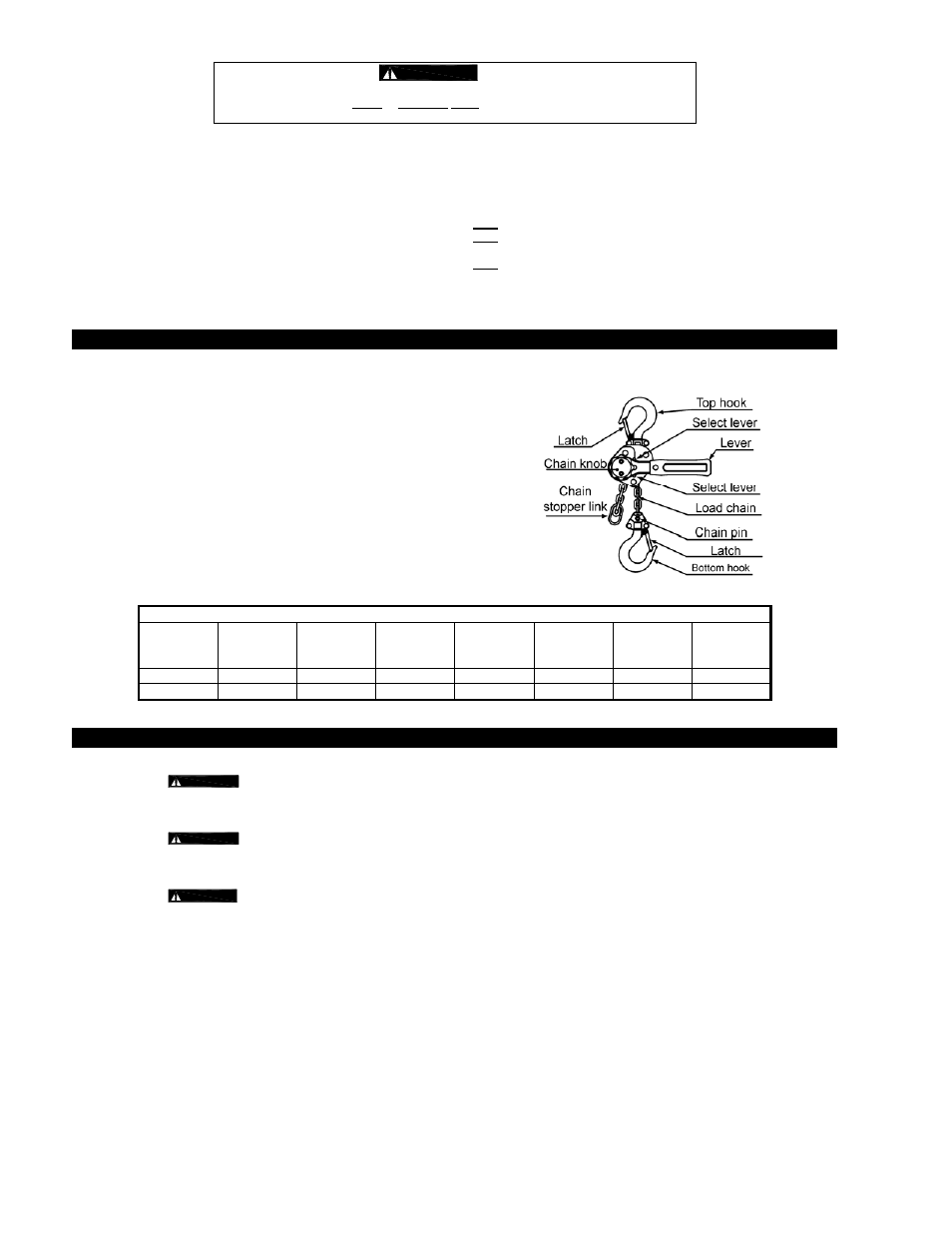

2.2.4 Hoist

Parts

Table 2-1 Hoist Specifications

Capacity

(Ton)

Product

Code

Headroom

C

(in.)

Standard

Lift

(ft)

Pull to Lift

Rated Load

(lbs)

Load Chain
Dia. x Pitch

(mm)

Chain Fall

Lines

Net Weight

(lbs)

¼

LX003

8.1

5

40

3.2×9.0

1

3.5

½

LX005

9.7

5

62

4.3×12.0

1

5.7

3.0 Operation

3.1 Introduction

3.1.1

WARNING

HOIST OPERATORS SHALL BE REQUIRED TO READ THE OPERATION SECTION OF THIS MANUAL, THE

WARNINGS CONTAINED IN THIS MANUAL, INSTRUCTION AND WARNING LABELS ON THE HOIST OR LIFTING
SYSTEM, AND THE OPERATION SECTIONS OF ANSI/ASME B30.21 and ANSI/ASME B30.10.

3.1.2 Measure and record the “k” dimension of the top and bottom hook. See Table 4-3 under Section 4, “Inspection”.

3.1.3

WARNING

For the LX1A model hoist, lifting a light load (approx. 11 lbs. or less) may not produce full braking performance

and slippage can occur.

3.2 Free Chaining

3.2.1

DANGER

„ Do not operate the hoist in free chain mode while a load is applied to the hoist.
„ Set the select lever to the lifting (‘UP’) position before performing a lifting operation. Do not leave the lever in the neutral
(‘N’)

position.

„ Do not pull the no-load-side chain with the select lever set in the lowering (‘DN’) position. This will cause the lever to rotate,

which can be hazardous.

3.2.2 Free Chain Principle

„ Free chaining allows the load chain to be moved freely because the brake is released under no load situations.
„ An internal spring releases the mechanical brake allowing the load chain to be pulled in either direction to the desired

length.

„ The brake is engaged during lowering or lifting the load.
