Aquatic AI9AIR7444TO - Manual

78
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
October 2007

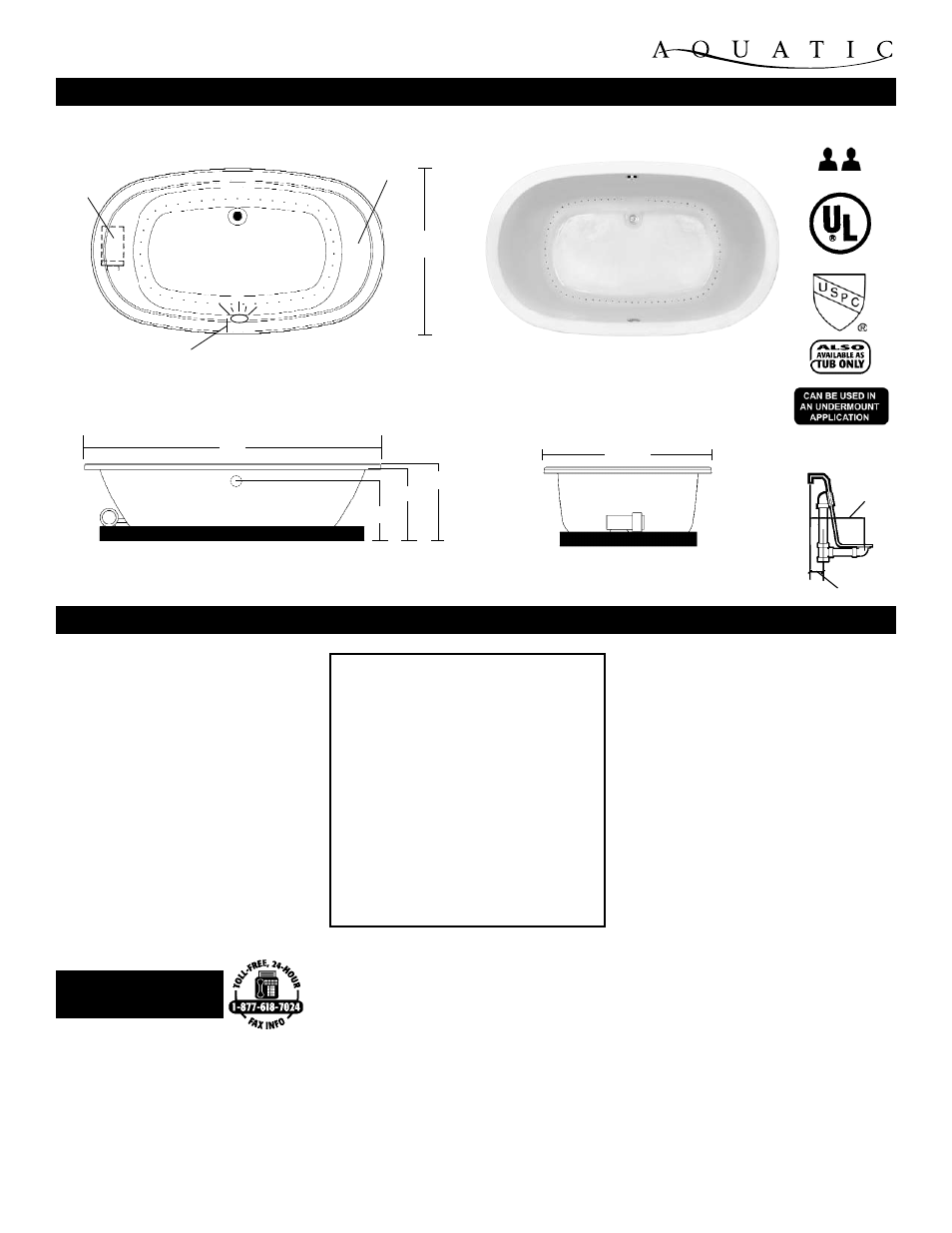

Rough-In Plumbing
Measurements
SErENITy STudIO 9
SErENITy STudIO
Model # AI9AIR7444 / AI9AIR7444To (Tub only)
Air Bath System:
- 60 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- 600 Watt Air Heating System
- Electronic Control Package with Wave and Pulse Features
- Automatic Purge and Dry Cycle with Water Sensor
Aquatic Quality Features:
- Chromatherapy
- Slip Resistant Floor
- Air Channels Lined with Antimicrobial Coating
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Durable, easy to clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
STAndARd eQUIPMenT:
•
Comfort Pillow - Oval or Rectangle
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Waterproof Remote Control with infrared sensor
and 25’ cord
•
Optional Blower Location
• Remote Blower Wiring Kit
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
OPTIOnAL eQUIPMenT: GeneRAL SPecIFIcATIOnS:
Tub Size 74” x 44 1/2” x 23 1/2”
188 cm x 113 cm x 60 cm
Bathing Well 50” long
28” wide
21 1/2” interior depth
Shipping Weight 200 lbs. / 91 kg
Tub Weight Filled 1170 lbs. / 532 kg
Tub Only Weight 146 lbs. / 66 kg
Gallons to Overflow 128 gal. / 485 L
eLecTRIcAL SPecIFIcATIOnS:
Blower/Heater 1 HP; 10.5 AMP; 120V
Requirement 15 AMP; 120V, separate circuit
required protected w/ Class A GFCI
Two Person Bath
74”
Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air tem-
perature will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air
coming from the air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.
44 1/2”
Blower Option 2 Standard
Blower
Location
Deck Width 3”
note: Serenity tub only models feature
a Pre-leveled ABS Support Base.
44 1/2”
21 3/4”
20 1/2”
23 1/2”
Fax-On-demand
document # 1188
2 1/2”
13”
