7.0 MECHANICAL REQUIREMENTS
7.1 PHYSICAL DIMENSION
150 mm (W) × 86 mm (H) × 140mm (D)
7.2 CONNECTORS
EPS 12V 8PIN connector
Yellow
Yellow
Yellow
Yellow
Signal
+12V
+12V
+12V
+12V
Pin
5
6
7
8
Pin
1
2
3
4
Signal
COM
COM
COM
COM
Black
Black
Black
Black

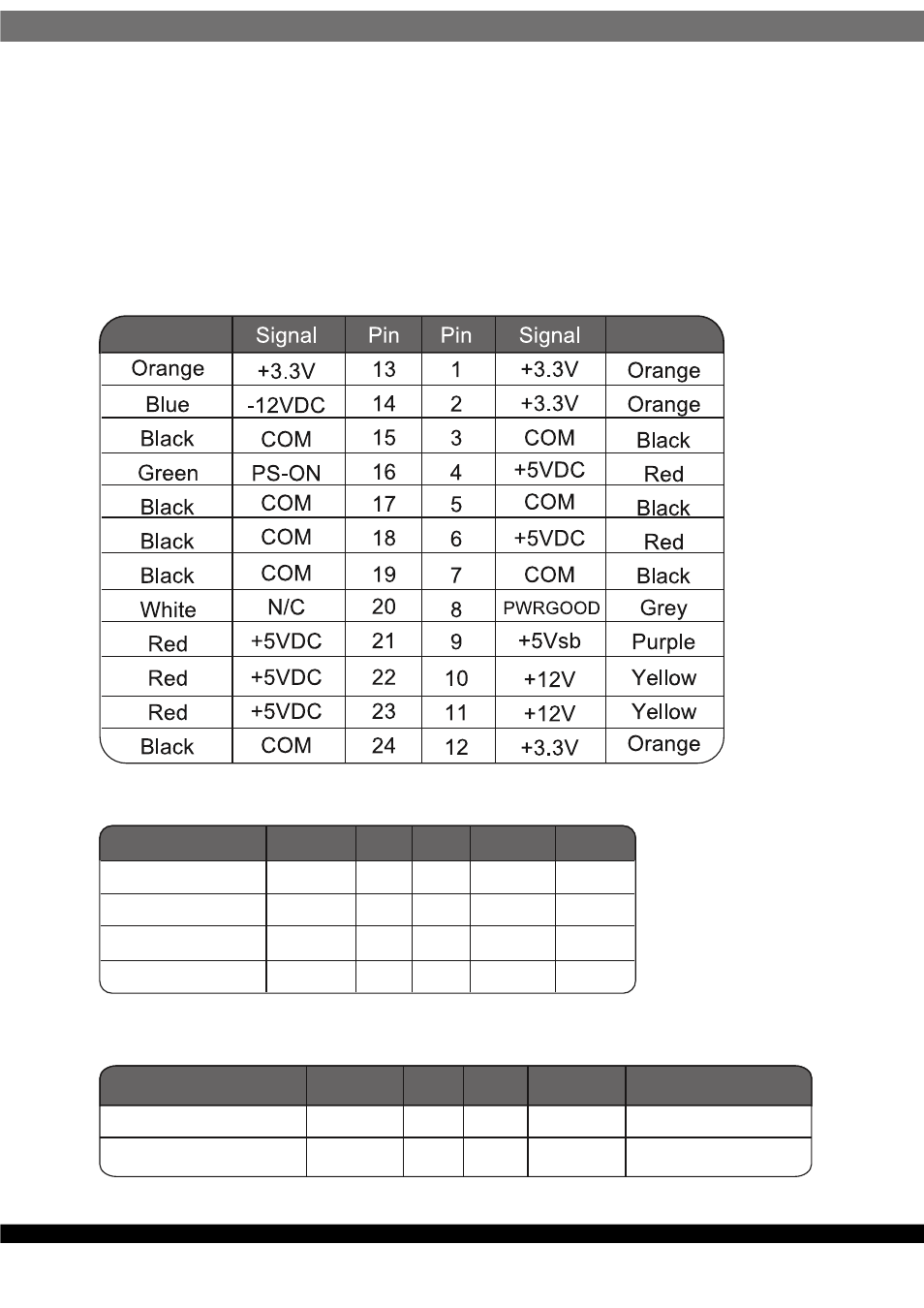

M/B 24PIN connector
ATX 12V 4PIN (4+4PIN EPS 12V in split mode)
Signal
GND
GND
Black
Black
Yellow
Yellow
Pin
1
2
Pin
3
4
Signal
+12V
+12V
