Assembling & Connecting

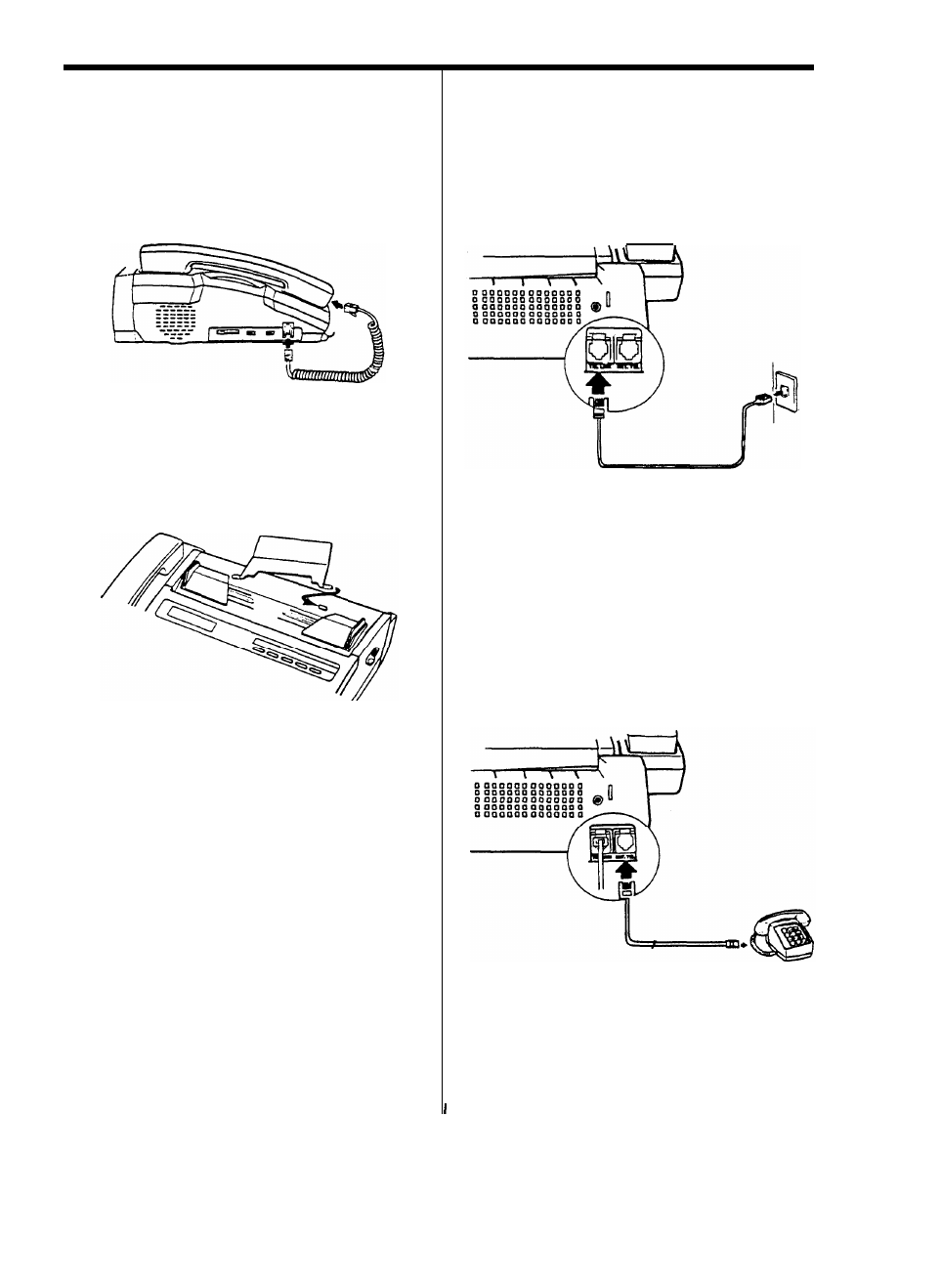

Installing the Handset
Plug one end of the handset cord to the jack on the
bottom of the handset. Then, plug the other end of
the cord to the HANDSET jack on the left side of
the machine.
Attaching the Document Tray
Insert one tab then flex the tray to insert the other
tab into the raised holes on the top of the paper
cover of the fax unit as shown below.
Connecting the Phone Line
Connect your machine in either of two ways:
l
Plug one end of the line cord into the TEL LINE
jack on the machine and the other end into a
standard telephone wall jack.
l
If you have a multi-line telephone, plug one end of
the line cord into the TEL LINE jack on the
machine and the other end into a jack on the
multi-line phone system.
Notes:
l
If you install the unit in an electronic or digital
telephone system or PBX, it may not operate
correctly. To use the unit on such a system, you
may have to contact your local telephone
company and have them install a separate line
that bypasses this equipment.
8
l
Many modern office buildings feature identical
wall jacks for telephone lines and data lines for
computers. If the computer terminals in your
office plug into wall jacks, make sure that you
plug your unit into a live telephone jack, not a
data jack.
Connecting Extension Telephone
o r A n s w e r i n g M a c h i n e
( i f
necessary)
Plug one end of the modular cord into the EXT.TEL
jack on the rear of your machine. Plug the other
end of the cord into a modular jack on an answering
machine or a regular telephone you wish to use as
an extension.
