Operator's Manual
Rivers Edge One-Man Ladder Stands
ASSEMBlY INSTRuCTIONS (RE623)
Tools needed – two 7/16" wrenches, rubber mallet
iMpoRtant aSSEMblY tip: do not tiGhtEn nut & bolt coMbinationS
coMplEtElY until all paRtS aRE aSSEMblEd toGEthER! FinGER tiGht-
En onlY pluS onE tuRn oF a WREnch onlY! thiS Will tEMpoRaRilY hold
thE lock nut on thE bolt WhilE hElpinG aliGnMEnt oF all paRtS!
aFtER all paRtS aRE aSSEMblEd toGEthER, all nut & bolt coMbina-
tionS MuSt bE coMplEtElY tiGhtEnEd!
1. Attach (1) ladder receiver J-pipe (112ML70) to the bottom of left foot
platform (112ML66) and (1) ladder receiver J-pipe to the bottom of right
platform (112ML69) using (4) provided 1/4-20 x 2-1/2” bolts, locknuts and
steel washers. SEE fIGuRE 1. DO NOT tighten all nut and bolt assemblies
completely!
notE: Mesh surface should be on top.
2. Attach left and right platforms together using (2) provided 1/4-20 x 2-1/2”
bolts, locknuts and steel washers. SEE fIGuRE 1.
3. Attach (1) platform spanner tube (112ML77) to the bottom of assembled
platforms (near front end of platforms) using (4) provided 1/4-20 x 2-1/2”
bolts, locknuts and steel washers. SEE fIGuRE 2.
notE: pockets of platform spanner tubes should be orientated upward.
4. Attach (1) platform spanner tube (112ML77) and (2) support tubes
(112ML75) to the bottom of assembled platforms (near back end of
platforms) using (2) provided 1/4-20 x 3-1/4” bolts, (2) 1/4-20 x 2-1/2" bolts,
(4) locknuts and (4) steel washers. SEE fIGuRE 2.
notE: pockets of platform spanner tubes should be orientated upward.
notE: bent ends of support tubes must be attached to the platform
spanner tubes.

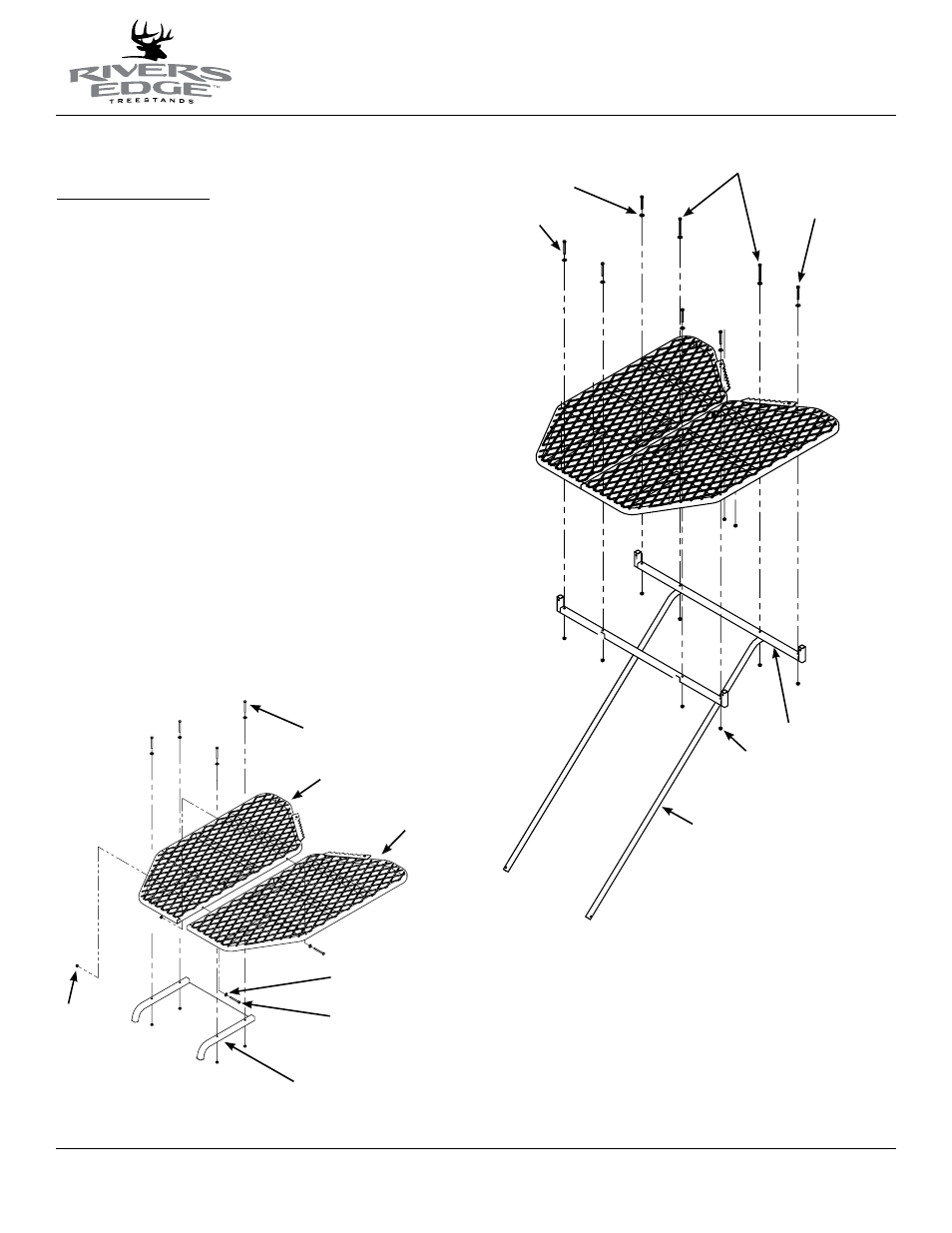

Figure 1
Figure 2
locknuts
right foot
platform
left foot
platform
1/4-20 x 2-1/2" bolts
steel washers
1/4-20 x 3-1/4" bolts
1/4-20 x 2-1/2" bolts
platform spanner tubes
locknuts
support tubes
steel washers
1/4-20 x 2-1/2" bolts
ladder receiver j-pipes
1/4-20 x 2-1/2"
bolts
