3. Attach the two rear leg pockets w/ plates (TP151 & TP152) to the bottom
of assembled platform using (6) provided 1/4-20 x 1-1/2” bolts, locknuts
and steel washers.
SEE FIGURE 3.
NOTE: Make sure the pockets are orientated outward, away from
each other.
4. Attach the seat post (TP11) to the assembled platforms using (4) provided
1/4-20 x 1-1/2” bolts and locknuts.
SEE FIGURE 4.
5. Attach swivel (48662) to top of seat post using (4) provided 1/4-20 x 3/4”
bolts and locknuts.
SEE FIGURE 5.
NOTE: Make sure head of bolts are on swivel side and nut on bottom
of seat post plate to prevent any obstruction when swivel is pivoted
during use.
6. Attach seat frame (TP154) to swivel using (4) provided 1/4-20 x 1-1/4”
bolts and locknuts.
SEE FIGURE 5.
NOTE: Make sure head of bolts are on swivel side and nut on top of
seat frame to prevent any obstruction when swivel is pivoted during
use.
NOTE: Mesh surface should be on top.
7. Attach backrest rim (TP158) to tabs of seat frame using (2) provided 1/4-
20 x 1-1/4” bolts and locknuts.
SEE FIGURE 5.
8. Attach the (2) armrests (TP164) to the seat frame and lower holes of
backrest rim using (4) provided 1/4-20 x 2” bolts, locknuts and steel
washers.
SEE FIGURE 5.
NOTE: The armrest is approximately 1" longer on one side. Bolt the
longer side to the backrest rim and the shorter side to the seat
frame.
9. Using the longer side, attach (2) shooting rail side rails (TP142) to the
upper holes of backrest rim using (2) provided 1/4-20 x 2” bolts, locknuts,
steel washers and nylon washers.
SEE FIGURE 5.
NOTE: The bent portion of the shooting rail side rails should lie on
top of the armrests.
NOTE: Nylon washers should be placed between side rails and
backrest rim for noise elimination
wARNING
BE SURE SEAT PAD IS SECURELY AND COR-
RECTLY ATTACHED TO PREVENT ACCIDENTAL
REMOVAL.
wHEN HUNTING FROM A TREESTAND/POD STAND
FALLS CAN OCCUR ANY TIME AFTER LEAVING
THE GROUND CAUSING INJURY OR DEATH.

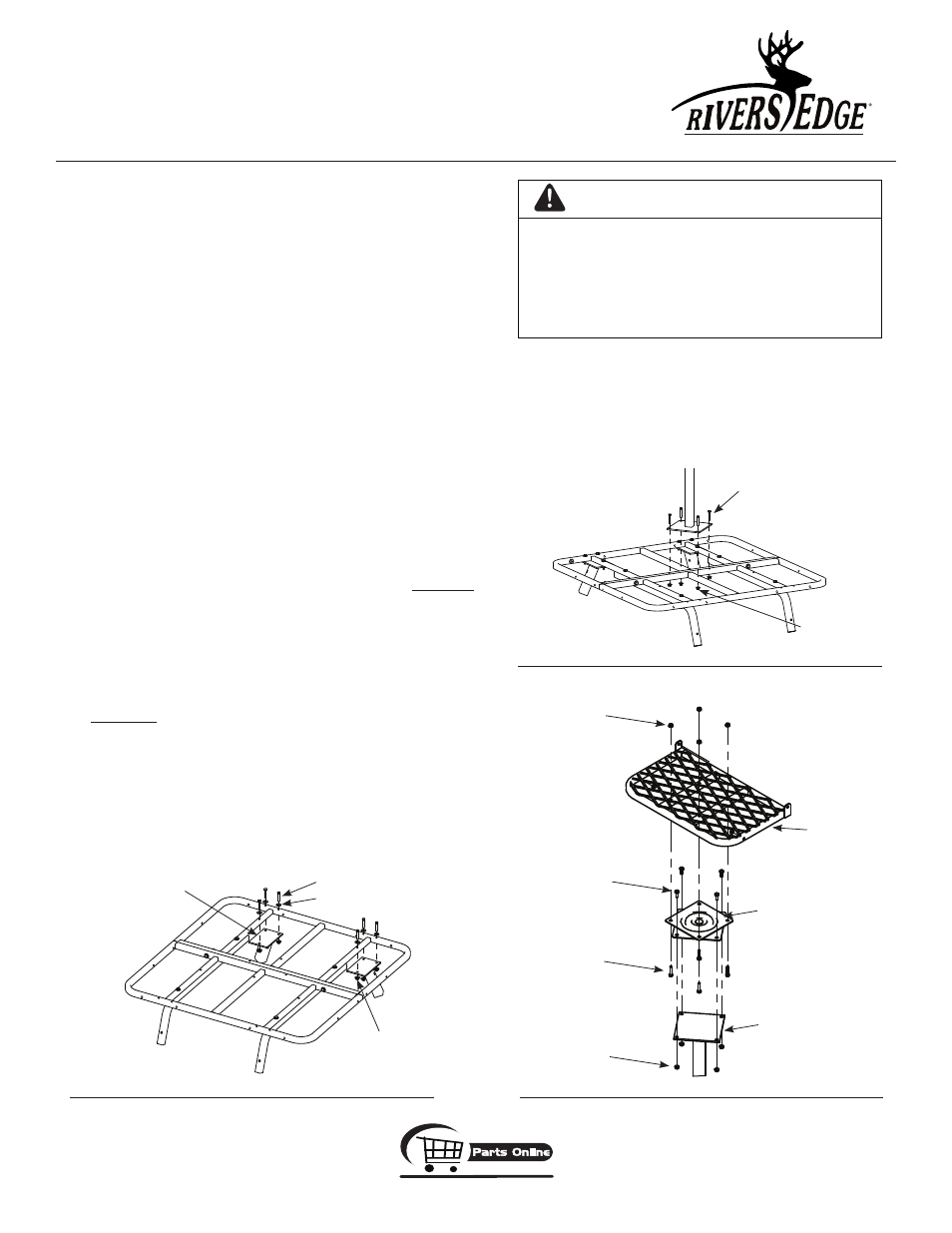

FIGURE 4
1/4-20 x 1-1/2" bolts
locknuts
FIGURE 3
rear leg pockets
1/4-20 x 1-1/2" bolts
locknuts
steel washers
FIGURE 5
1/4-20 x 3/4" bolts
1/4-20 x 1-1/4" bolts
seat frame
locknuts
swivel
seat post
locknuts
