14' Perimeter ™ Ladder Pod (RE712)
HuntRiversEdge.com
800-450-EDGE (3343)
KEY # PART # DESCRIPTION QTY.
1 1401B BOLT 5/16-18 X 1-1/4 HHCS Gr5 BLK 2
2 8909B BOLT 1/4-20 X 1-1/4 HHCS Gr5 BLK 16
3 8930B BOLT 1/4-20 X 3/4 HH Gr5 BLK 4
4 48151 BOLT 5/16-20 X 3/4 HHCS Gr5 BLK 12
5 48153B BOLT 1/4-20 X 2 HHCS BLK P-T 6
6 48240B BOLT 1/4-20 X 1-1/2 HHCS Gr5 BLK 12
7 48250B BOLT 1/4-20 X 1-3/4 HHCS Gr5 BLK 6
8 48261B WASHer, FLAT BLK 1/4 20
9 48271B BOLT 1/4-20 X 2-1/4 HH Gr5 BLK 12
10 48662 SWIVeL 1
11 48752B NUT, TOP LOCK FLANGeD 1/4-20 56
12 60G5NyB NUT 5/16-18 BLK 14
13 SL51 LADDer, 4-STeP 2
14 TP11 SeAT POST 1
15 TP100 PLATFOrM 2
16 TP109 reCeIVer 2
17 TP113 FOOT PAD 2
18 TP115 BrACKeT, SUPPOrT BAr 6
19 TP131 BrACe, FeMALe CrOSS 60" 8
20 TP132 BrACe, MALe CrOSS 36" 2
21 TP142 SIDe SHOOTING rAIL 2
22 TP143 FrONT SHOOTING rAIL 1
23 TP145 LeG, FTS 4
24 TP146 TAB, DUAL SUPPOrT BrACe 4
25 TP147 BOTTOM LeG, W/FOOT 2
26 TP149 BrACe, MALe CrOSS 12" 2
27 TP150 BrACe, MALe CrOSS 48" 4
28 TP151 LeFT, LeG reCeIVer 1
29 TP152 rIGHT, LeG reCeIVer 1
30 TP154 SeAT, 20" X 12" 1
31 TP158 BACKreST, FTS 1
32 TP159 BOTTOM LADDer 1
33 TP164 ArM reST 2
34 WN516 WASHer, NyLON BLK 5/16 2
ITEMS NOT SHOwN
-- 48126 PADDeD SeAT 1
-- 48858 PADDeD BACKreST 1
-- 48874 CAMO PAD, 66" 1

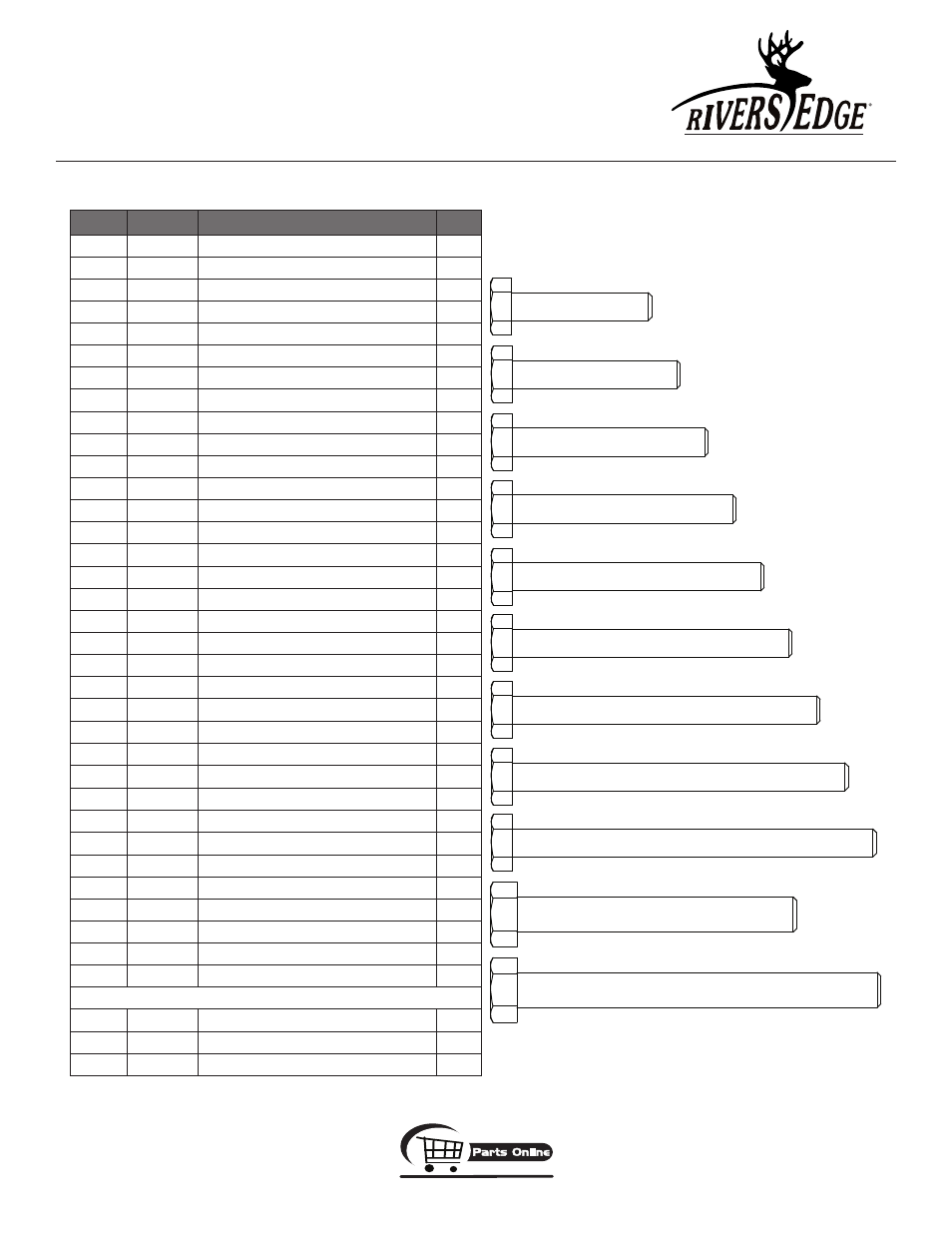

LADDER PARTS LIST BOLT IDENTIFICATION CHART
Not all bolt sizes shown are included with all treestands. Bolts
shown are for size reference only. extra hardware may be
included in the parts bag.
1/4-20 x 1-1/4" grade 5 hex head bolt
1/4-20 x 1-1/2" grade 5 hex head bolt
1/4-20 x 1-3/4" grade 5 hex head bolt
1/4-20 x 2" grade 5 hex head bolt
1/4-20 x 2-1/4" grade 5 hex head bolt
1/4-20 x 2-1/2" grade 5 hex head bolt
1/4-20 x 2-3/4" grade 5 hex head bolt
5/16-18 x 2-1/2" grade 5 hex head bolt
5/16-18 x 3-1/4" grade 5 hex head bolt
1/4-20 x 3" grade 5 hex head bolt
1/4-20 x 3-1/4" grade 5 hex head bolt
