Check for parts online at www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5 12
Operator's Manual
Rivers Edge Two-Man Ladder Stands
6. Attach the tree blade frame (2ML127) to the inside, lower set of holes of the
side seat support loops using (4) provided 1/4-20 x 2-1/4" bolts, locknuts,
and steel washers. SEE FIGuRE 4. Press the (2) provided rubber bumper
stops into top side holes of tree blade frame. SEE FIGuRE 4.
7. Attach the flip-up seat platform (2ML69), with mesh surface on top, to the
upper, rear holes of side seat support loops using (2) provided 1/4-20 x
2-1/4" bolts, locknuts, nylon washers and steel washers. SEE FIGuRE 4.
note: nylon washers should be placed between seat frame and side
seat support for noise elimination.
8. Attach the backrest rail (2ML65) to the outside lower set of holes at top ends
of side seat support loops using (4) provided 1/4-20 x 2” bolts, locknuts, and
steel washers. SEE FIGuRE 5. Press the (2) provided rubber bumper stops
into top side holes of backrest rail. SEE FIGuRE 5.
9. Attach the shooting rail (2ML64) to the outside upper front holes at top end
of side seat support loops using (2) provided 1/4-20 x 2-1/4” bolts, locknuts,
nylon washers, and steel washers. SEE FIGuRE 6. You must now tighten
all nut & bolt assemblies. Be sure not to over tighten or crush tubing
when tightening!
note: nylon washers should be placed between shooting rail and side
seat support for noise elimination.

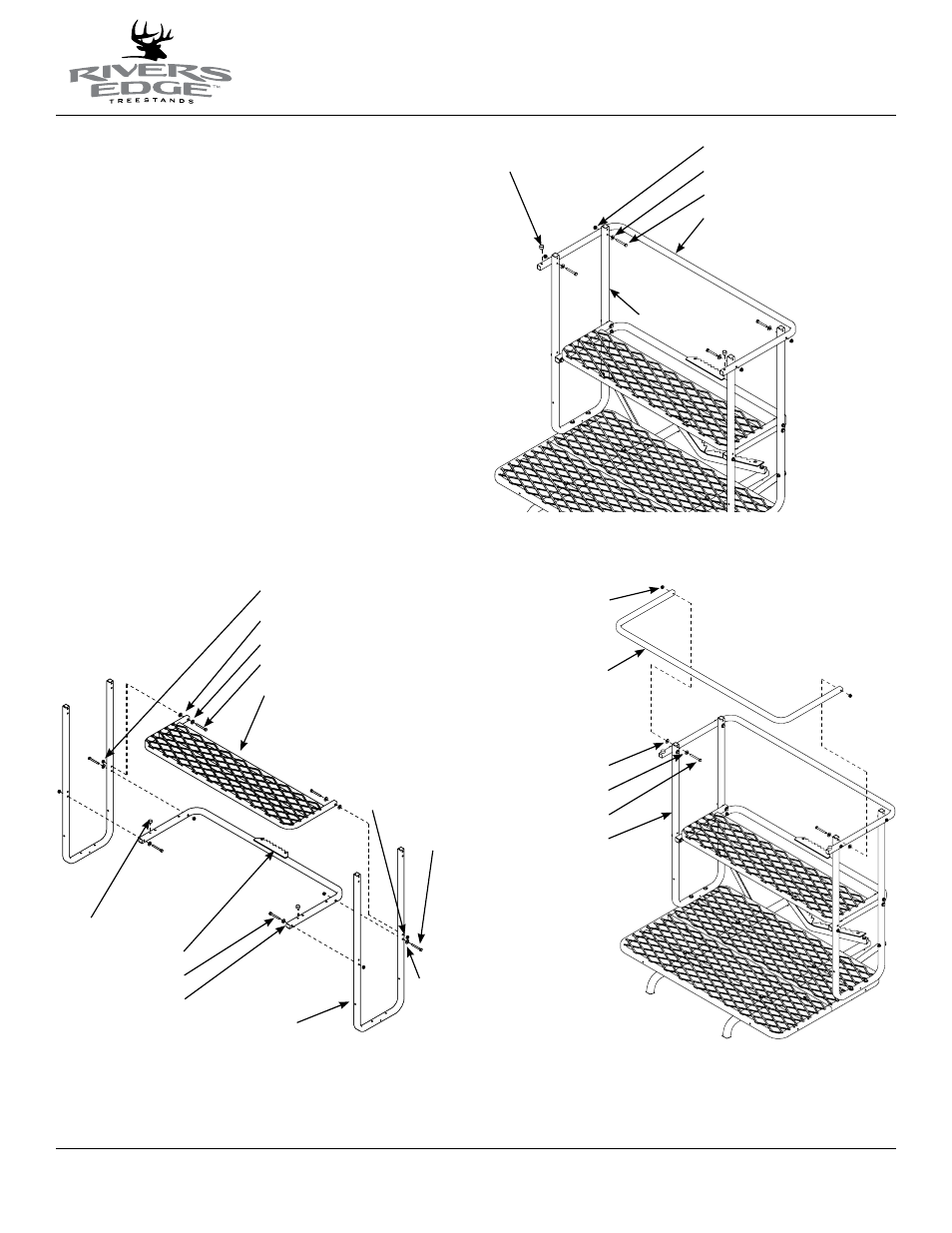

Figure 4
rubber bumper stops
tree blade frame
1/4-20 x 2-1/4" bolts
steel washers
locknuts
nylon washers
steel washers
1/4-20 x 2-1/4" bolts
flip-up seat platform
Figure 5
seat support loops
locknuts
steel washers
1/4-20 x 2" bolts
backrest rail
rubber bumper stops
Figure 6
locknuts
shooting rail
nylon washers
steel washers
1/4-20 x 2-1/4" bolts
seat support loops
locknuts
steel
washers
1/4-20 x
2-1/4" bolts
seat support loops
