AA-09-01.1 : Evolver SE

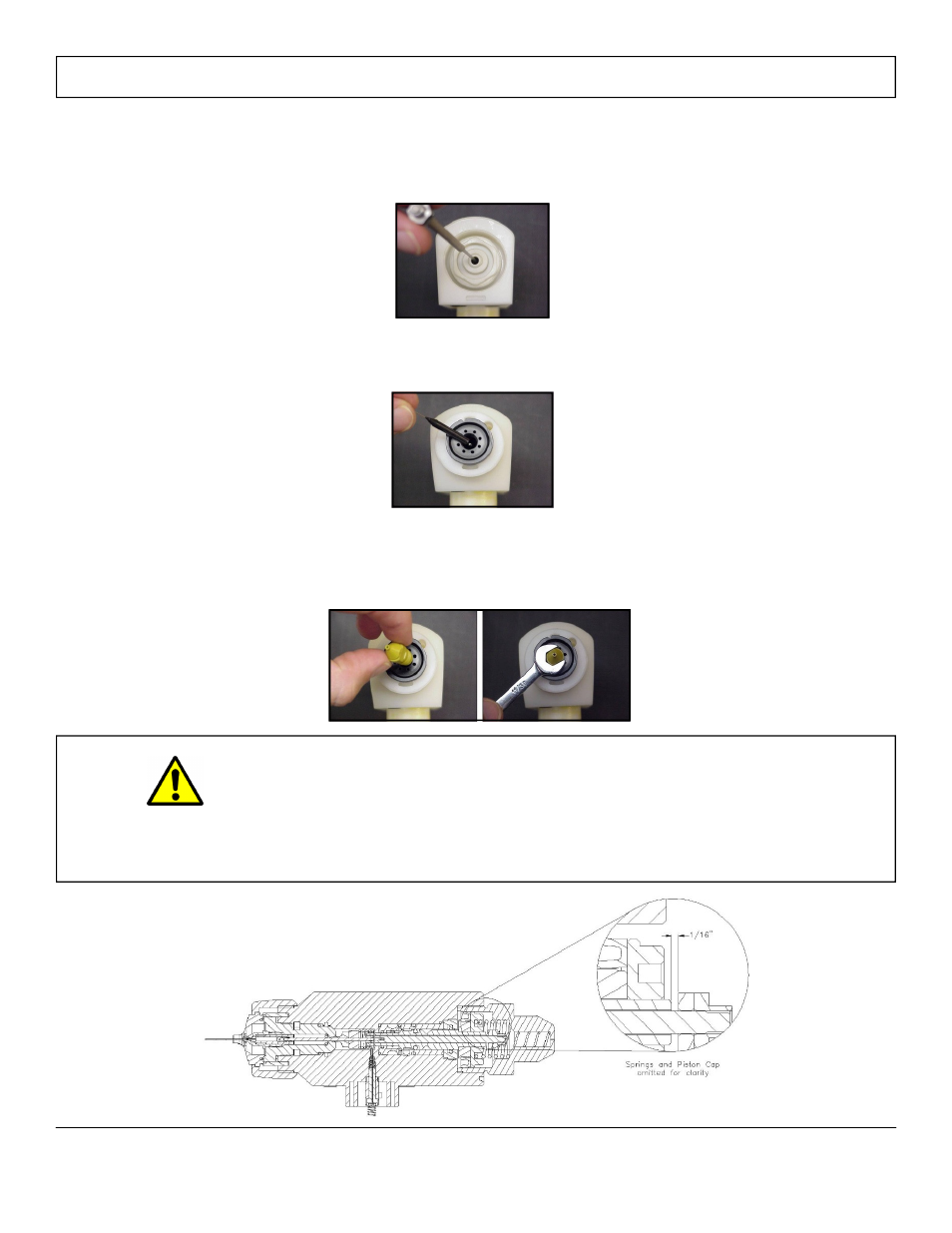

APPLICATOR CLEANING (continued)
9. After cleaning, insert the front needle back into the spray head assembly. Apply Loctite #222, low strength (purple) thread locker, to
the threads of the tip assembly before reassembly.
10. Install the electrode.
NOTE - The electrode should always be installed and tightened before installing the fluid tip and valve springs.
11. Screw fluid tip back into place. Hand tighten first, then with a small wrench, tighten an additional 30°.
1
2
REAR
FRONT
•
After tightening the fluid tip, always check to see if the proper gap of 1/16" (1.59mm) between the needle
nuts and air valve stem occur, before installing the needle and valve springs back into the head.
CAUTION
