AA-09-01.1 : Evolver SE
Section 3: INSTALLATION
This information is intended ONLY to indicate the general installation parameters of this product and, where applicable,
its working relationship to other Ransburg system components in typical use.
Each installation is unique and should be directed by an authorized Ransburg representative or conducted using the
Ransburg installation drawings provided for your particular installation.

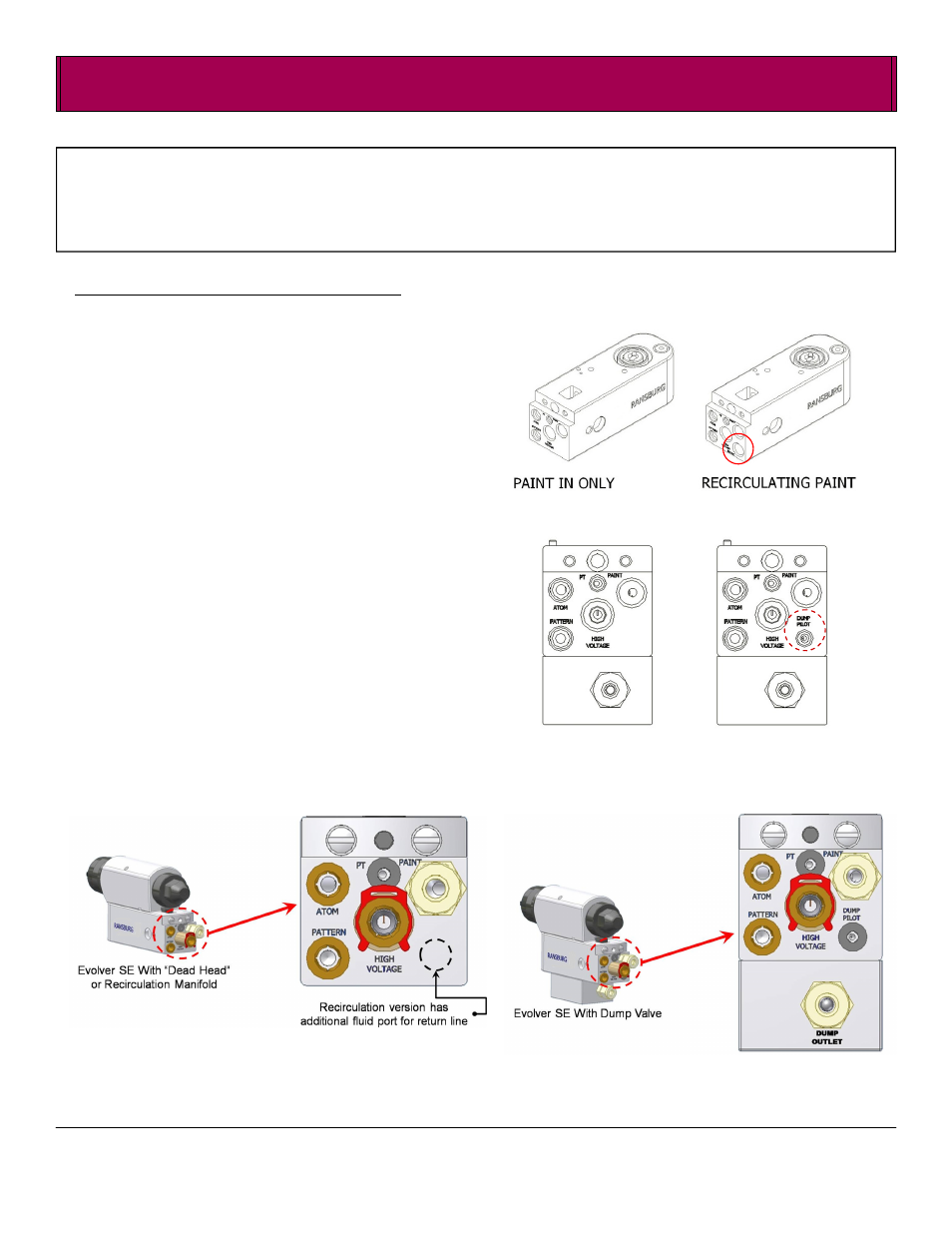

High Voltage Cable and Tubing (installation)
1. Connect the high voltage cable to the body assembly by first
adding a small amount of dielectric grease (NOT petroleum
jelly) to the banana plug end. Fully insert cable until it bot-
toms out in the plug receptacle. Once fully inserted, place
the
red collet lock behind the collet to secure the cable in
place. Gently pull the cable to ensure it is locked securely.
2. Insert the 5/16" (8mm) or optional 3/8" PTFE paint line into
the compression fitting and tighten securely. Use two
wrenches to prevent fitting from turning. Gently pull on the
tubing to ensure it is secure.
3. Install the 5/16" (8mm) fan and atomization air tubing into
the collet style fittings. Make sure to push the tubing past
the o-ring. Gently pull on the tubing to ensure it is secure.
4. Install the 5/32" (4mm) trigger pilot tubing into the collet
style fitting. Make sure to push the tubing past the o-ring.
Gently pull on the tubing to ensure it is secure.
5. If equipped with dump valve: Install the 5/16" (8mm) dump
line (PTFE) into the compression fitting on the dump block
body. Use two wrenches to prevent fitting from turning.
Gently pull on the tubing to ensure it is secure. Install the
5/32" (4mm) dump pilot tubing into the collet style fitting.
Make sure to push the tubing past the o-ring. Gently pull on
the tubing to ensure it is secure.
