Section 3 - Plumbing Installation
QUESTIONS?... Contact Customer Service at 1-800-753-1601 M-F 8:00 am- 4:30 pm CST 10
1/2" Copper Tube
To By-pass
Regulator
P/N 8850
Brass Elbow
1/2" comp x 1/4
NPT

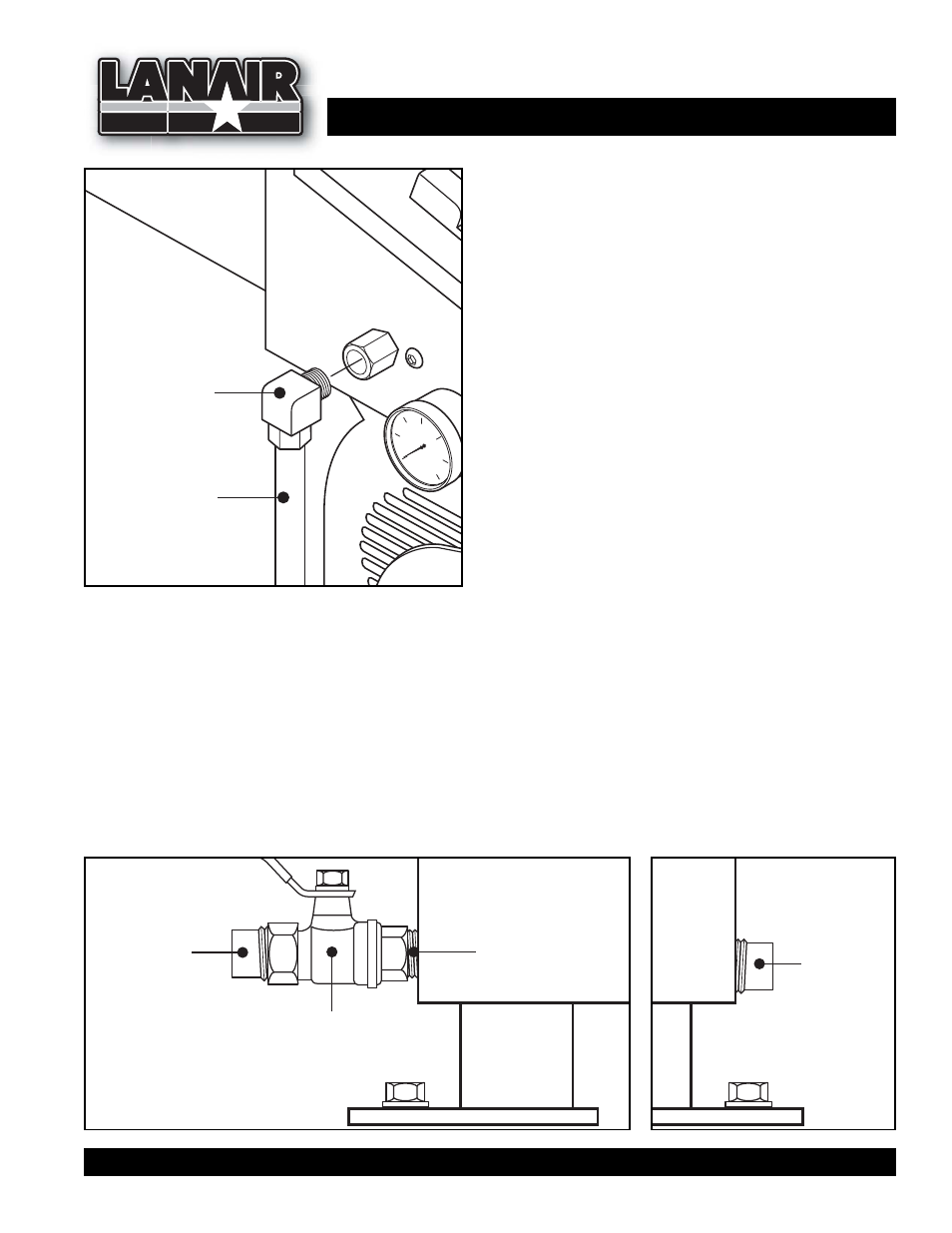

FIGURE 10
PLUMBING INSTALLATION -
By-Pass Regulator To Burner
1. Attach the 1/2" comp x 1/4" NPT brass elbow (P/N
8850) as indicated in Fig 10.
3. Install the remaining 1/2" copper tube between
the compression fittings of the by-pass regulator
and burner (see Figs. 7 & 10).
NOTE: Make sure all fittings are properly tight-
ened. Leaking fittings may cause delayed ignition
in the burner.
Tank Drain and Plug
1. Determine which side of the tank the drain will be on. On that side, install a 1/2" close nipple
(P/N 8186) to the drain hole (see Fig 11).
2. Install the 1/2" brass ball valve (P/N 8187) to the 1/2" close nipple. Install a 1/2" pipe plug (P/N 8185)
into the end of the ball valve (see Fig. 11).
3. Install a 1/2" pipe plug (P/N 8185) into the hole on the opposite side of the tank (see Fig.12).
4. Vent the tank in accordance to state and local codes.
FIGURE 11
FIGURE 12
P/N 8186
1/2" Close Nipple
P/N 8187
1/2" Brass Ball
Valve
P/N 8185
1/2" Pipe Plug
P/N 8185
1/2" Pipe Plug
