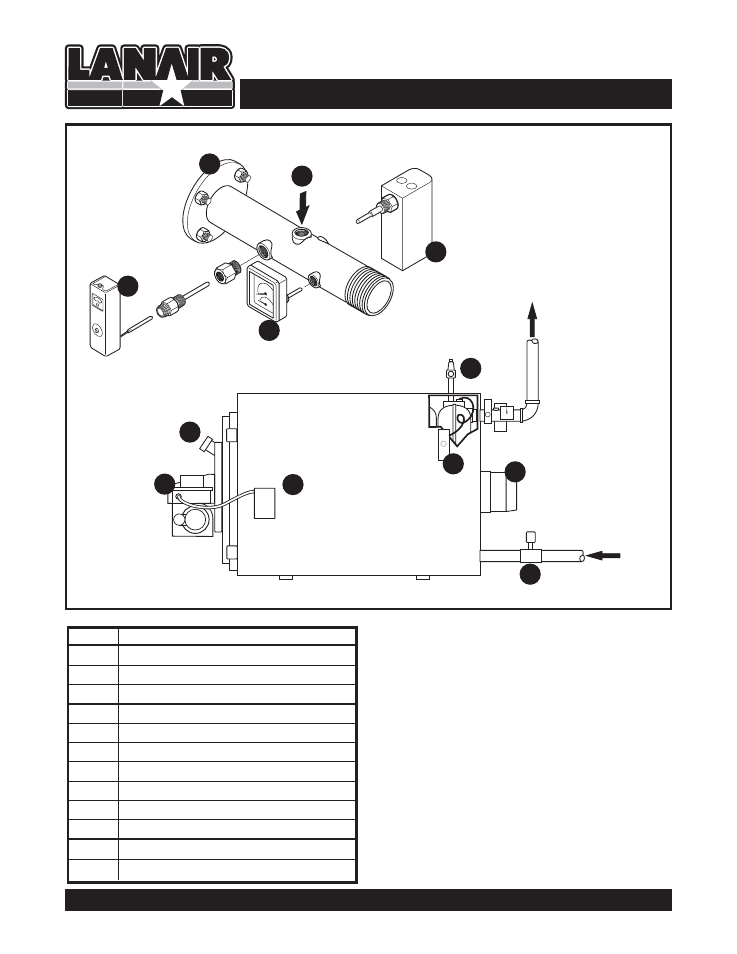

Section 1 - Boiler Specifications
Supply
Relief Valve
Flow Switch (not included)
Return
Supply Manifold
(see Detail A)
MX BOILER
DETAIL A
No.
Description
1
Burner Assembly
2
View Port
3
Electrical Junction Box
4
HI-Limit Switch
5
Relief Valve
6
Chimney Outlet
7
Flow Switch (not included)
8
Supply Manifold
9
Hi-Limit Switch
10
Temperature/Pressure Gauge
11
Low Water Cut-off Switch
12
Optional Relief Valve Location
Boiler-Performance Ratings
Burner Fuel Consumption . . . . . . . . . . . . . 2.57 GPH
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360,000 BTU
Output Capacity . . . . . . . . . . . . . . . . . . . 297,000 BTU
Net Rating - Water BTU/HR . . . . . . . . . . . . . 309,600
Approx. Dry Weight . . . . . . . . . . . . . . . . . . . 1,900 lbs.
Vent Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8" dia.
Water Content . . . . . . . . . . . . . . . . . . . . . . . . 28.5 gal.
Max Operating Water Pressure . . . . . . . . . . . 75 PSI
1
3
4
5
6
7
11
8
9
10
12
2
Electrical Junction Box
