Lanair 215 Gallon Tank With Metering Pump User Manual

Page 7

Visit our website at: www.lanair.com

Section 3 - Plumbing Installation

5/16" x 1" Bolt P/N 7043
5/16" Loc Washer P/N 7427
5/16" Washer P/N 7417
5/16" Nut P/N 7207
(4 locations, Do Not Tighten
until all plumbing connections
are made

P/N 8902
Elbow Street 1/2"

P/N 8557

Close Nipple

1/2" x 5-1/2"

P/N 8602 Elbow 1/2"

P/N 8186

Nipple Close 1/2"

P/N 9807 Primary Strainer
Arrows must point in direction
of oil flow

Separate Here

P/N 8186 Close Nipple 1/2"
P/N 8904 Bushing 1/2" x 1"

P/N 9412 Tee

PUMP HEAD

PICK-UP

METERING PUMP

TEE ASSEMBLY

(Included & Pre-Assembled

With Metering Pump)

TUBE
ASSEMBLY

METERING PUMP

ASSEMBLY

P/N 8556

Union

P/N 8186

Nipple Close 1/2"

P/N 8647

Nipple Close 1/4"

P/N 8558

Reducing Coupling

1/4" x 1/2"

P/N 8904

Bushing

1/2" x 1"

P/N 8902

Elbow

Street 1/2"

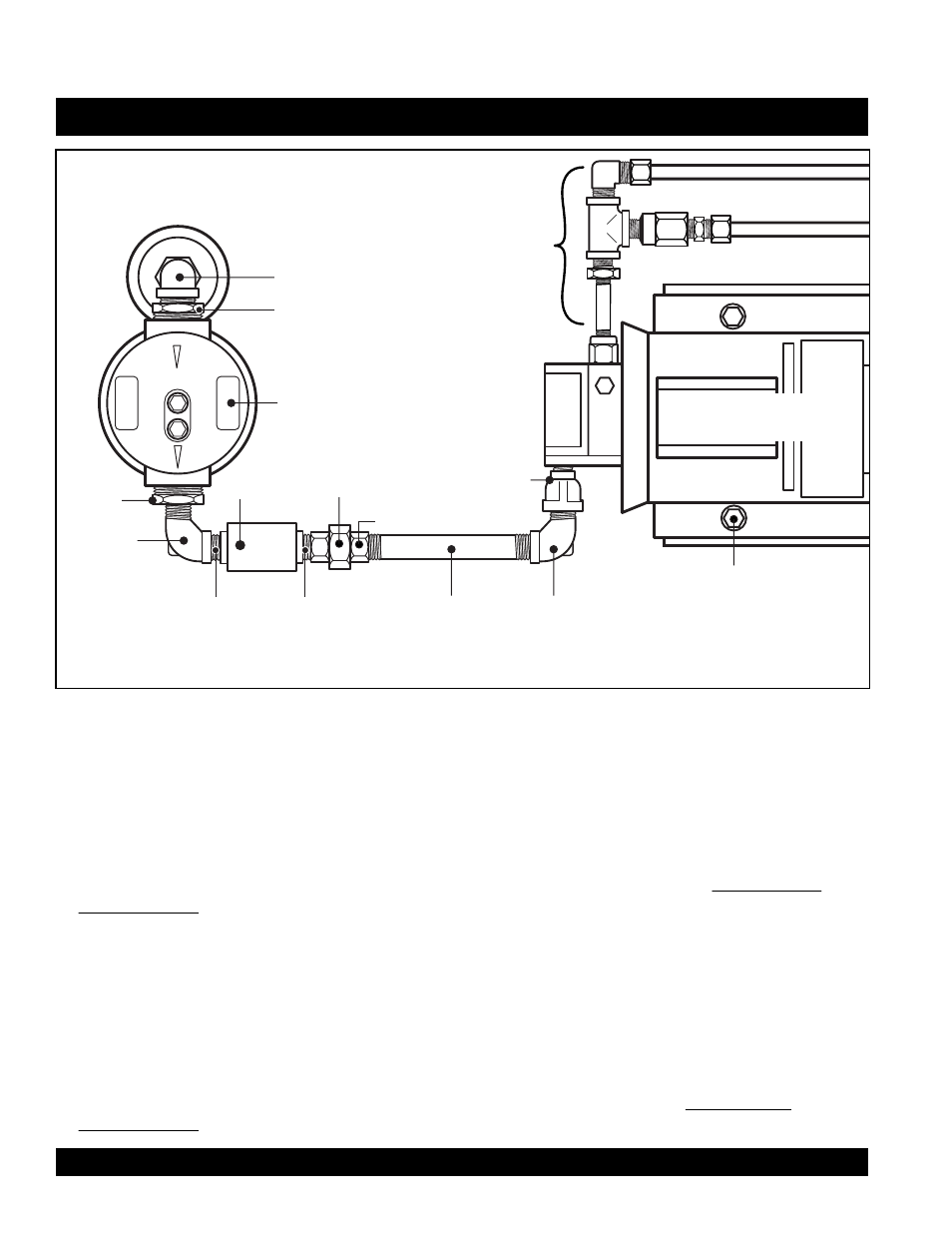

FIGURE 5

PLUMBING INSTALLATION - Pick-Up Tube to Pump Plumbing

Attach the pump assembly to the top of the tank bracket (see Figs. 2 and 3 for bracket location) using
four 5/16" x 1" bolts, loc washers, washers and nuts (See Fig. 5). NOTE: Do not tighten until all plumb-
ing connections are made.

Install a 1/2" elbow (P/N 8602), 1/2" close nipple (P/N 8186) and 1/2" x 1" bushing (P/N 8904) to the
top of the previously installed pick-up tube assembly. NOTE: When making plumbing connections,
use the thread seal compound (P/N 5277) included in the plumbing kit on all joints. DO NOT USE
TEFLON TAPE.

Attach the primary strainer assembly (P/N 9807 - included in heater accessory kit) to the previously
installed components. NOTE: Make sure that the arrows on the top of the strainer are pointed in the
direction of the oil flow (see Fig. 5).

Install a 1/2" x 1" bushing (P/N 8904), 1/2" elbow street (P/N 8902), 1/2" close nipple (P/N 8186), 1/2" x
1/4" x 1/2" tee (P/N 9412), 1/2" close nipple (P/N 8186) and Union (P/N 8556) to the primary strainer
assembly (P/N 9807) as indicated in Fig. 5 above. NOTE: When making plumbing connections, use
the thread seal compound (P/N 5277) included in the plumbing kit on all joints. DO NOT USE
TEFLON TAPE.
