Getting Started 1
C H A P T E R 1
Getting Started
View computer output directly on your High Definition
Television or other component input device. Provide a big-
screen experience for your PC that is ideal for playing games,
giving presentations, watching movies, and browsing the
Internet.
The ATI HDTV Component Video Adapter converts standard
VGA or DVI-I video output from your RADEON Series card
or ALL-IN-WONDER RADEON Series card to component
video that you can display on your High Definition Television
or other component input device.
• For a list of supported RADEON family cards, visit
www.ati.com .
Depending upon the model of your ATI graphics card,
some of the following features may not be installed:
• Multimedia Center components
• TV applications

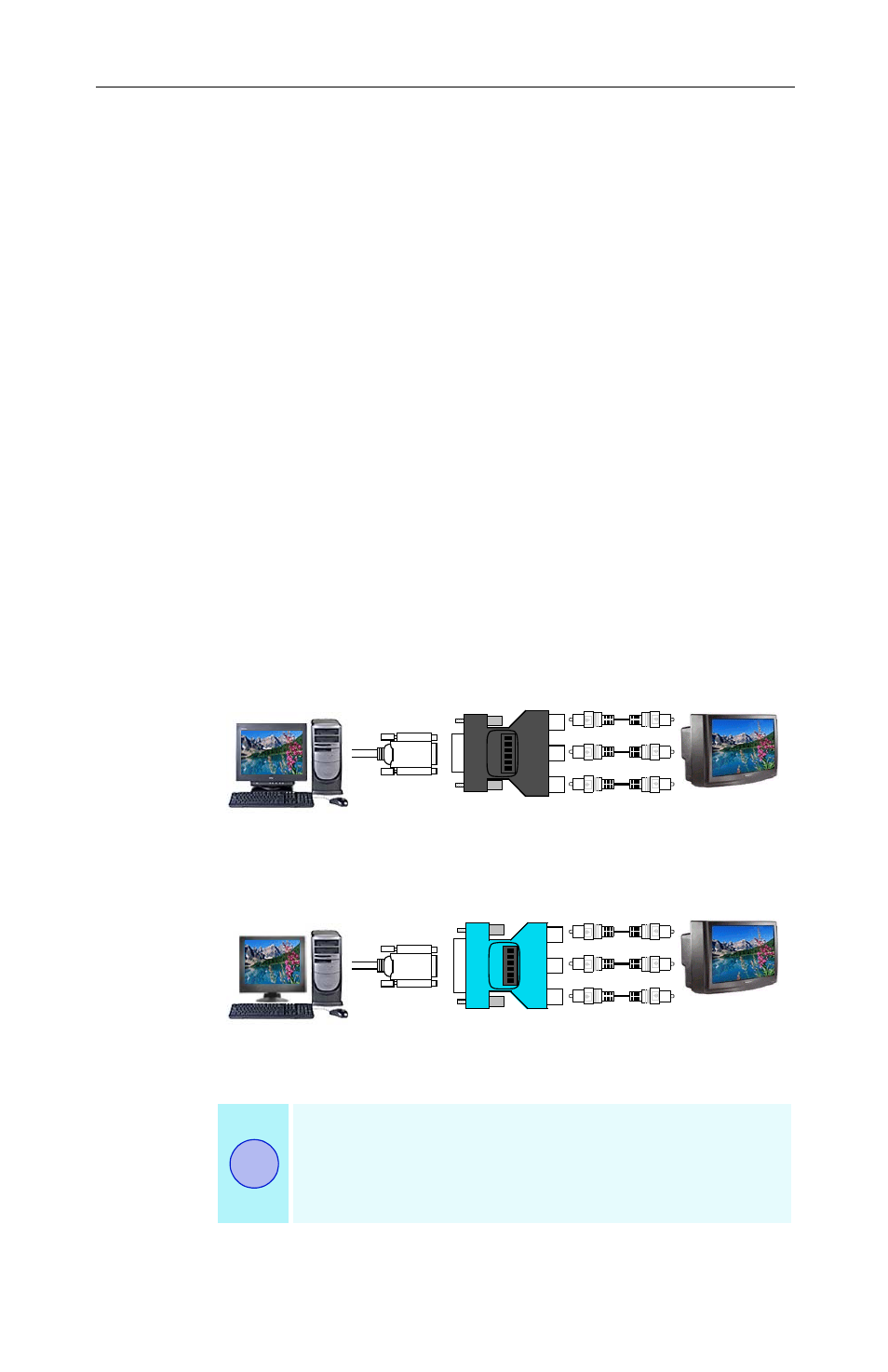

DVI-I to YPbPr
VGA to YPbPr
